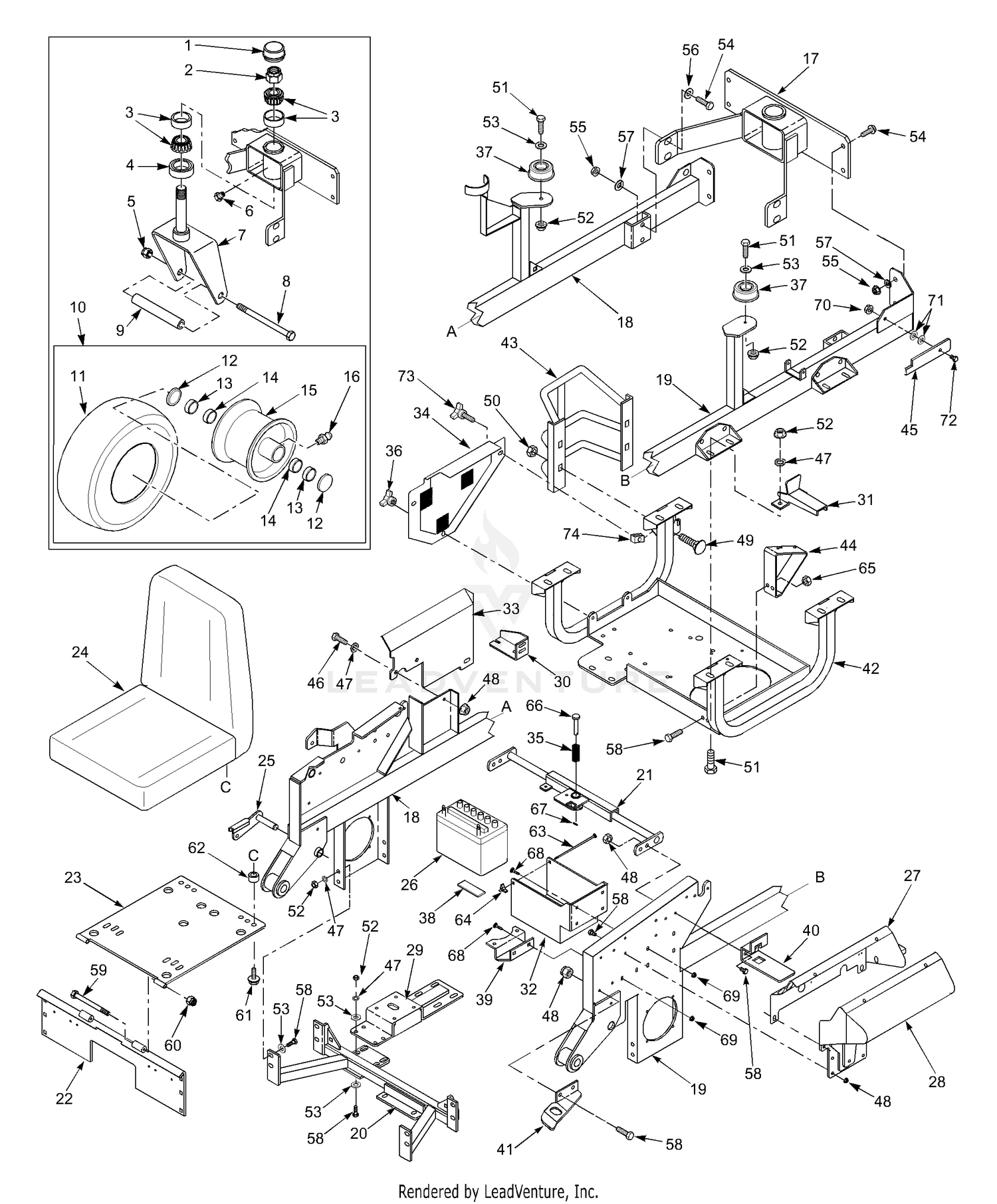

| Ref | Part Number | Description |
|---|
| 1 |
481559 |
Cap, Grease Price: Call Us |
| 2 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 3 |
481657 |
Bearing, 1.0 Diameter Price: Call Us |
| 4 |
481025 |
Seal, 2.00 OD x 1.625 ID Price: Call Us |
| 5 |
04021-13 |
Nut, Elastic Stop 5/8-11 Price: Call Us |
| 6 |
482028-01 |
Plug, 1/4-28 Price: Call Us |
| 7 |
451187 |
Yoke, Wheel Price: Call Us |
| 8 |
04001-41 |
Bolt, Hex Head 5/8-11 x 9.5" Price: Call Us |
| 9 |
43021 |
Spacer Price: Call Us |
| 11 |
482192 |
Tire, 16 x 6.5-8 Price: Call Us |
| 12 |
481897 |
Seal, Wheel Bearing Price: Call Us |
| 13 |
481896 |
Cone, Bearing Price: Call Us |
| 14 |
481897 |
Cup, Bearing Price: Call Us |
| 16 |
48114-06 |
Fitting, Grease Price: Call Us |
| 17 |
451186 |
Weldment, Rear Caster Support Price: Call Us |
| 18 |
451172 |
Weldment, Main Frame RH Price: Call Us |
| 19 |
451171 |
Weldment, Main Frame LH Price: Call Us |
| 20 |
451173 |
Weldment, Axle Support Price: Call Us |
| 21 |
451174 |
Weldment, Seat Support Price: Call Us |
| 22 |
451177 |
Plate, Front Crossmember Price: Call Us |
| 23 |
451178 |
Weldment, Seat Plate Price: Call Us |
| 24 |
482220 |
Seat Assy. Price: Call Us |
| 25 |
451179 |
Weldment, Deck Stop Price: Call Us |
| 26 |
48015 |
Battery Price: Call Us |
| 27 |
423012 |
Cover, Instrument Panel Price: Call Us |
| 28 |
422855 |
Rear, Instrument Panel Price: Call Us |
| 29 |
451415 |
Weldment, Gearbox Support This part replaces 451188. Price: Call Us |
| 30 |
422976 |
Plate, Gearbox Upper Price: Call Us |
| 31 |
422859 |
Mount, Fuel Tank Rear Price: Call Us |
| 32 |
422936 |
Box, Battery Price: Call Us |
| 33 |
423031 |
Heatshield Price: Call Us |
| 34 |
423233 |
Cover, PTO Clutch Price: Call Us |
| 35 |
481389 |
Spring, Seat Price: Call Us |
| 36 |
481625-01 |
Knob with Stud Price: Call Us |
| 37 |
482074 |
Pad, Rubber Hopper Rest Price: Call Us |
| 38 |
48657 |
Pad, Rubber Price: Call Us |
| 39 |
422935 |
Bracket, Hydraulic Filter Mounting Price: Call Us |
| 40 |
422858 |
Bracket, Fuel Tank Front Price: Call Us |
| 41 |
422934 |
Catch, Cutter Deck Price: Call Us |
| 42 |
451288 |
Weldment, Engine Deck Price: Call Us |
| 43 |
451256 |
Weldment, Muffler Guard Price: Call Us |
| 44 |
423005 |
Bracket, Oil Cooler Price: Call Us |
| 45 |
422988 |
Rod, Hopper Prop Price: Call Us |
| 46 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 47 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 48 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 49 |
04003-33 |
Bolt, Carriage 7/16-14 x 1" Price: Call Us |
| 50 |
04019-05 |
Nut, Serrated Flange 7/16-14 Price: Call Us |
| 51 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 52 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 53 |
04041-07 |
Flatwasher, 3/8" Price: Call Us |
| 54 |
04001-07 |
Bolt, Hex Head 1/2-13 x 1.5" Price: Call Us |
| 55 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 56 |
04040-07 |
Flatwasher 1/2" Price: Call Us |
| 57 |
04030-06 |
Lockwasher 1/2" Price: Call Us |
| 58 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 59 |
04001-63 |
Bolt, Hex Head 5/16-18 x 3.5" Price: Call Us |
| 60 |
04021-10 |
Nut, Elastic Stop 5/16" Price: Call Us |
| 61 |
04017-16 |
Bolt, Capscrew 5/16-18 x .75" Price: Call Us |
| 62 |
43512 |
Spacer Price: Call Us |
| 63 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 64 |
04029-01 |
Wing Nut, 1/4-20 x .75" Price: Call Us |
| 65 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 66 |
43462 |
Pin Price: Call Us |
| 67 |
04060-01 |
Roll Pin, Spring 5/32 x .75" Price: Call Us |
| 68 |
04003-12 |
Bolt, Carriage 5/16-18 x .75" Price: Call Us |
| 69 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 70 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 71 |
04032-01 |
Washer Price: Call Us |
| 72 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 73 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
