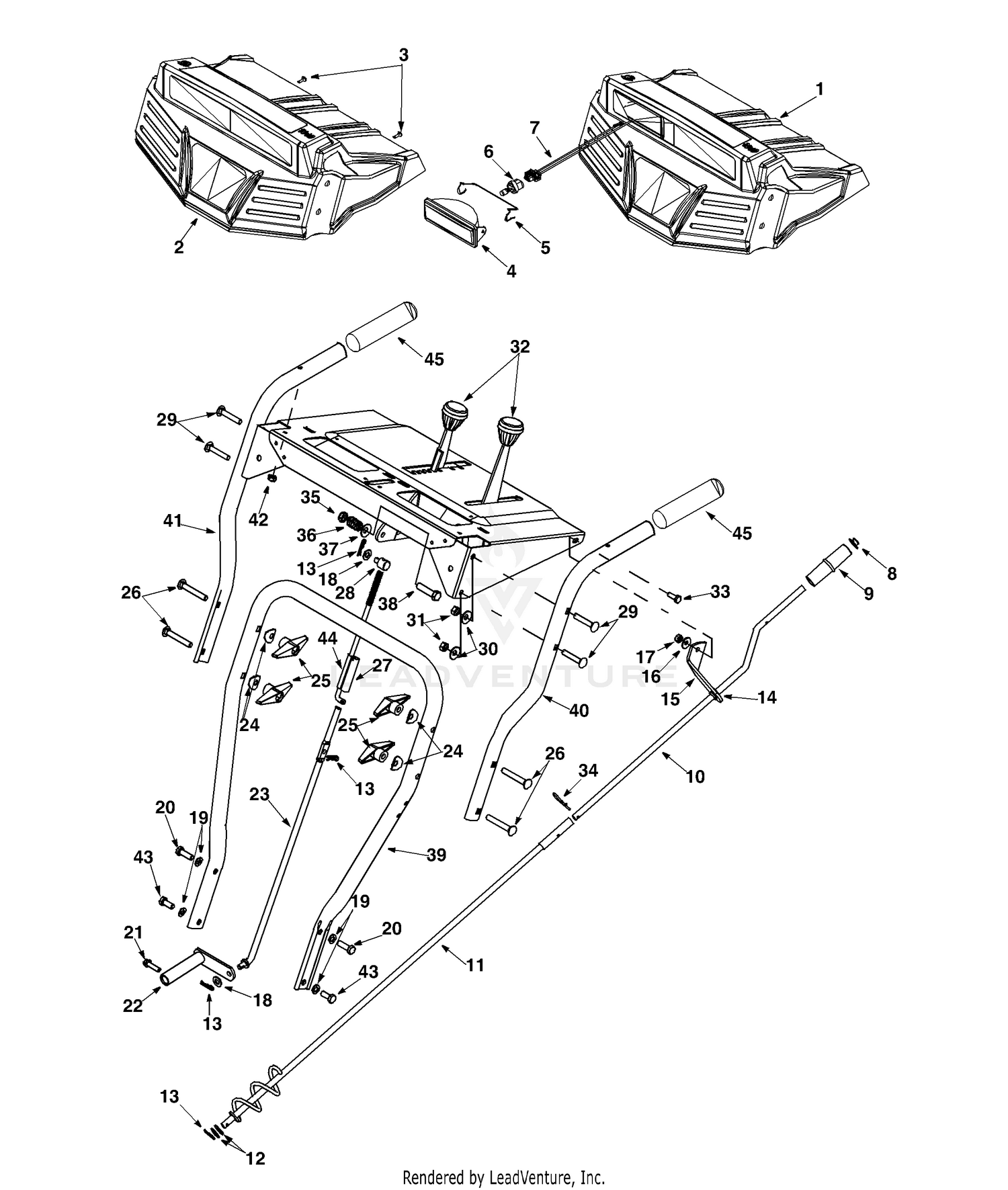

| Ref | Part Number | Description |
|---|
| 1 |
731-04067 |
HANDLE PANEL Not Available Price: |
| 2 |
931-04059 |
HANDLE PANEL 7 STYLE Not Available This part replaces 731-04059. Price: |
| 8 |
726-0100 |
Push Cap Price: $3.75 |
| 9 |
720-0201A |
Chute Crank Knob Price: $9.62 |
| 10 |
747-0737-0637 |
Upper Chute Crank This part replaces 747-0737. Price: $39.72 |
| 11 |
684-0053B-0637 |
CHUTE CRANK ASSEMBLY(POWDER BLACK) Not Available This part replaces 684-0053B. Price: |
| 12 |
736-0185 |
Fl-Wash. .375 I.D. x .738 O.D. Price: $3.43 |
| 13 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 14 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 15 |
705-5266-0637 |
Chute Crank Bracket This part replaces 705-5266. Price: $13.37 |
| 16 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 17 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 18 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 19 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 20 |
710-0643 |
Hex Hd. Cap Scr. 5/16-18 Thd. Price: $5.99 |
| 21 |
710-0788 |
TT-Tap Screw 1/4-20 Thd. Price: $6.20 |
| 22 |
684-0008A-0637 |
SHIFT ARM ASSEMBLY (POWDER BLACK) Not Available This part replaces 684-0008A. Price: |
| 23 |
747-0621 |
LOWER SHIFT ROD Not Available Price: |
| 24 |
736-0451 |
Saddle Washer .320 I.D. x .93 O.D. Price: $3.75 |
| 25 |
720-0284 |
Knob Price: $4.08 |
| 26 |
710-0572 |
Carriage Bolt 5/16-18 x 2.5" This part replaces 710-0449. Price: $3.75 |
| 27 |
950-0963 |
Shift Rod Connector This part replaces 750-0963. Price: $30.48 |
| 28 |
911-0677 |
Ferrule This part replaces 711-0677. Price: $15.59 |
| 29 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 30 |
736-0242 |
Bell Washer Price: $3.75 |
| 31 |
712-3009 |
Hex Lock Nut, 5/16-18 This part replaces 712-3068. Price: $5.99 |
| 32 |
920-0232 |
SHIFT KNOB This part replaces 720-0232. Price: $9.11 |
| 33 |
710-3015 |
Hex Hd. Cap Screw 1/4-20 Price: $3.65 |
| 34 |
714-0145 |
Click Pin Price: $4.42 |
| 35 |
712-0116 |
Jam L-Nut 3/8-24 Thd. Price: $3.95 |
| 36 |
732-0193 |
Compression Spring Price: $4.11 |
| 37 |
736-0105 |
Spring Wash. .401 I.D. x .870 O.D. Price: $3.96 |
| 38 |
710-0459A |
Hex Hed. Cap Screw 3/8-24 Thd. Price: $6.50 |
| 39 |
749-0951A |
LOWER HANDLE Not Available This part replaces 749-0951. Price: |
| 40 |
749-0953A |
UPPER HANDLE (LH) Not Available Price: |
| 41 |
749-0952A |
UPPER HANDLE (RH) Not Available Price: |
| 42 |
712-0271 |
Hex Sems Nut Price: $3.78 |
| 43 |
710-1880 |
Hex Patch Screw 5/16-18 Thd. Price: $4.02 |
| 44 |
747-0620A |
SHIFT ROD Not Available Price: |
