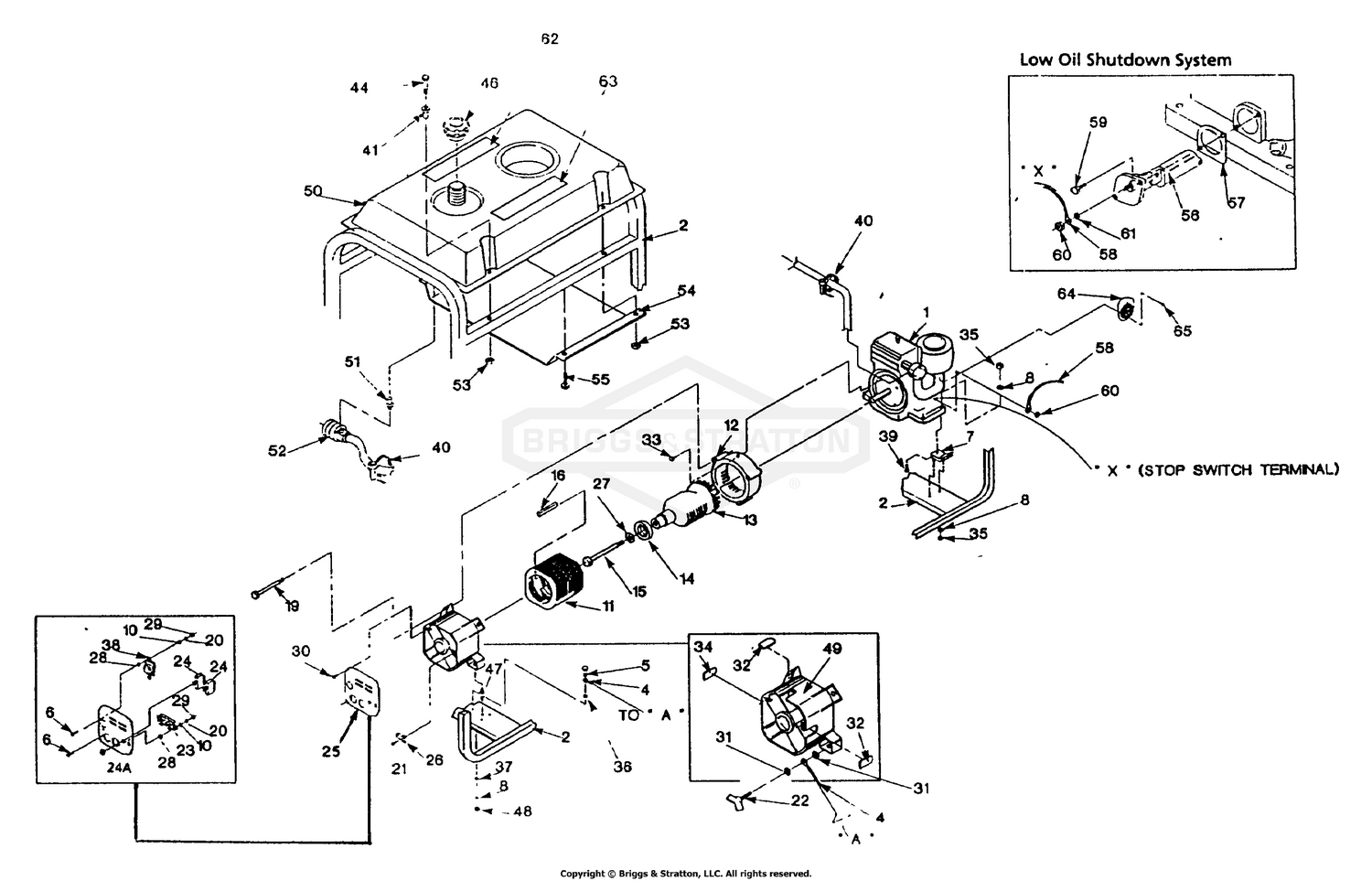

| Ref | Part Number | Description |
|---|
| 1 |
91011 |
Briggs & Stratton engine Price: $281.33 |
| 2 |
704005 |
PUSHNUT, CAP, 1/4 This part replaces 91020. Price: $3.82 |
| 4 |
195373GS |
WIRE, Ground This part replaces 143-53621. Price: $1.85 |
| 5 |
313085GS |
SCREW This part replaces 86292. Price: $3.35 |
| 6 |
75475 |
M4-0.7 x 10mm Screw Price: $24.95 |
| 7 |
70642GS |
MOUNT, Vibration 45°. This part replaces 70642. Price: $27.27 |
| 8 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 10 |
38150GS |
WASHER This part replaces 38150. Price: $2.49 |
| 11 |
93585G |
Stator assembly Price: Call Us |
| 12 |
66365GGS |
HOUSING, Engine Adapter This part replaces 66365G. Price: Call Us |
| 13 |
91844G |
Rotor assembly Price: Call Us |
| 14 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 15 |
5047480B |
FLOOR PLATE This part replaces 47480. Price: $179.99 |
| 16 |
81917GS |
PIN, ROLL 4MM x 10 This part replaces 81917. Price: $2.79 |
| 19 |
86308GS |
HHCS, M6 - 1.0 x 115 SEMS This part replaces 86308. Price: $2.60 |
| 21 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 22 |
86494GS |
SCREW, M6-1.0 x 16 LG. WING This part replaces 86494. Price: $2.51 |
| 23 |
68759GS |
OUTLET, 20A,120V This part replaces 68759. Price: $23.24 |
| 25 |
94091 |
Control panel sheet metal Price: Call Us |
| 26 |
91825 |
Brush holder assembly Price: Call Us |
| 27 |
67451 |
Flatwasher (special) Price: Call Us |
| 28 |
5023365YP |
TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73 |
| 29 |
51715GS |
NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30 |
| 30 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 32 |
84242GS |
GROMMET, Plastic RBC This part replaces 84242. Price: $4.19 |
| 33 |
86307GS |
HHMS, 5/16-24 x 3/4 LG. SEMS This part replaces 86307. Price: $2.19 |
| 34 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 35 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 36 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 39 |
76222GS |
PPHMS, M8 - 1.25 x 40 This part replaces 76222. Price: $3.15 |
| 41 |
83465GS |
GROMMET, TANK This part replaces 83465. Price: $3.39 |
| 44 |
78831A |
M6-1.0 x 60mm Capscrew Price: Call Us |
| 46 |
84582 |
Fuel tank cap Price: Call Us |
| 47 |
82857GS |
MOUNT, VIBRATION This part replaces 82857. Price: $10.31 |
| 48 |
25244GS |
NUT, 5/16-18 HEX This part replaces 25244. Price: $2.59 |
| 49 |
SRV66825DGS |
CARRIER, Rear Bearing This part replaces 66825C. Price: $120.36 |
| 50 |
77374 |
Fuel tank Price: Call Us |
| 51 |
192980GS |
Kit, Valve This part replaces 78299. Price: $16.43 |
| 52 |
7078298YP |
PULLEY CATCHER HZT/ This part replaces 78298. Price: $168.51 |
| 53 |
77935 |
M6 Hex lock nut Price: Call Us |
| 54 |
78951 |
Heat shield Price: Call Us |
| 55 |
56892GS |
CRIMPTITE, 10-24 X 3/8 This part replaces 56892. Price: $2.79 |
| 56 |
88977 |
Switch, low oil shutdown Price: Call Us |
| 57 |
91841 |
Gasket, low oil shutdown Price: Call Us |
| 58 |
91842AGS |
WIRE-A, 18AWG, BLK, 445MM This part replaces 91842A. Price: $5.05 |
| 59 |
32713GS |
TAPTITE, #10-32 X 5/8 This part replaces 32713. Price: $2.64 |
| 60 |
22471GS |
NUT, #8-32 This part replaces 22471. Price: $2.39 |
| 61 |
5023365YP |
TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73 |
| 62 |
92892 |
Decal, danger instructions Price: Call Us |
| 63 |
93826GS |
DECAL, START INSTRUCTIONS This part replaces 93826. Price: $1.85 |
| 64 |
77601GS |
SCREEN, ARRSTR, SPARK, B&S This part replaces 77601. Price: $26.10 |
