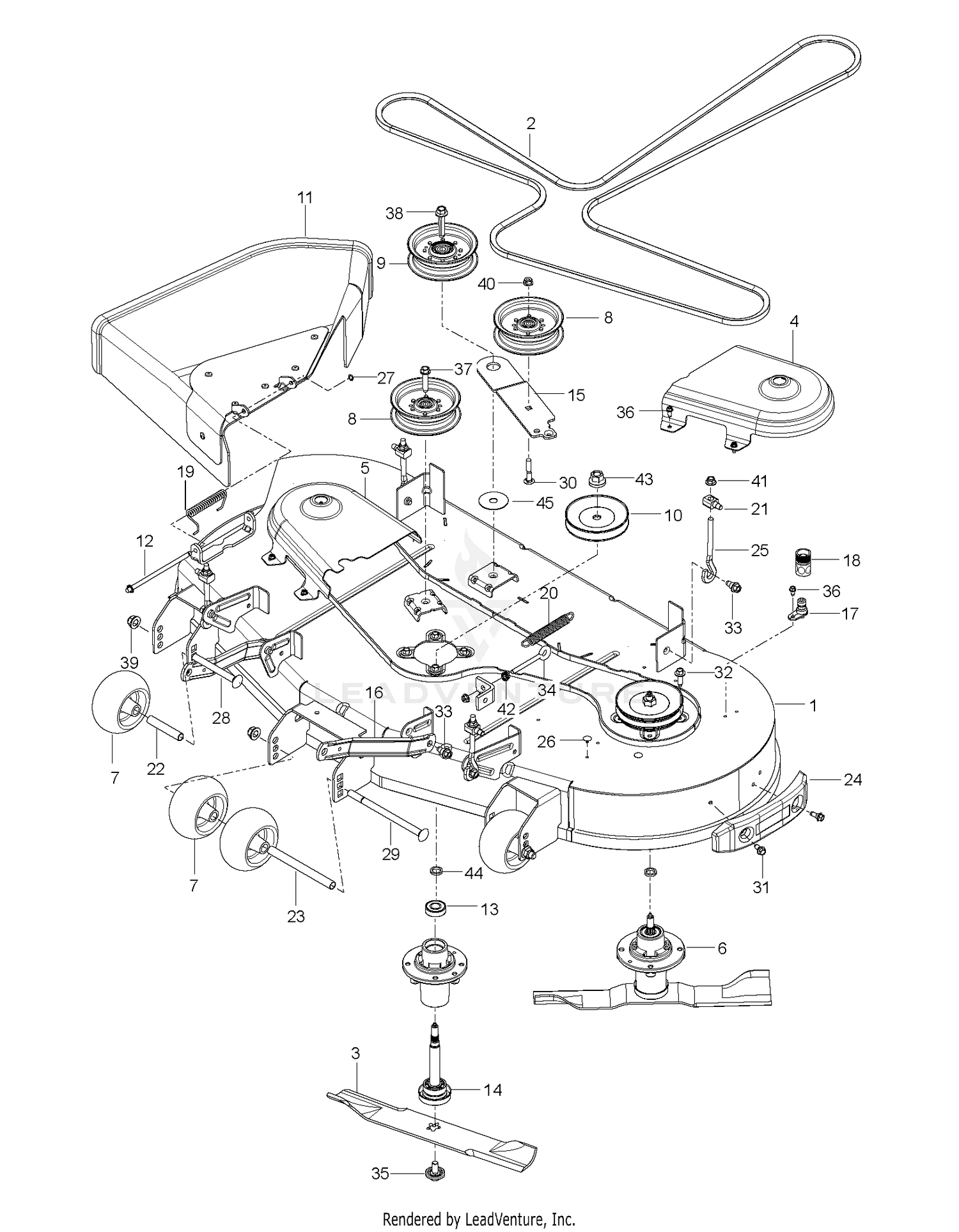

| Ref | Part Number | Description |
|---|
| 1 |
110-5335 |
ROD-TIE Price: $148.07 |
| 1 |
546499901 |
MZ/Z300/Z400 SERVICE DECK KIT This part replaces 582773202. Price: $1,499.99 |
| 2 |
582236501 |
BELT CLEARCUT 54, MZ DECK DRIV Price: $69.99 |
| 2 |
71-4740-03 |
RH TIE ROD END ASM Price: $163.79 |
| 3 |
2411-46-03 |
LH TIE ROD ASM Price: $128.10 |
| 3 |
582760502 |
BLADE CC54 PZ STYLE HI LIFT BL Price: $34.99 |
| 4 |
590304402 |
COVER 54 CLEARCUT, LH MANDREL, Price: $19.99 |
| 4 |
84-5300 |
NUT-JAM Price: $9.99 |
| 5 |
590304202 |
COVER 54 CLEARCUT RH MANDREL O Price: $22.99 |
| 7 |
574169601 |
ROLLER, GAUGE .635 BORN Price: $14.99 |
| 8 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 9 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH This part replaces 532197380. Price: $37.99 |
| 10 |
532175708 |
PULLEY.MANDREL.CRD 107CM.DOM. Price: $14.99 |
| 11 |
590632201 |
DEFLECTOR ASSY 54 CLEARCUT RES Price: $64.99 |
| 12 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 13 |
532110485 |
BEARING Price: $11.99 |
| 14 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 15 |
582219602 |
ARM IDLER ARM, CLEARCUT 54 BLA Price: $4.99 |
| 16 |
536050602 |
LINK FIXED MOWER DRAWBAR BLACK This part replaces 587140502. Price: $5.99 |
| 17 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 18 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 19 |
587354701 |
SPRING.42.FCS.DEFLECTOR Price: $5.99 |
| 20 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 21 |
532176205 |
TRUNNION Price: $6.99 |
| 22 |
574196402 |
Tubes This part replaces 574196401. Price: $5.99 |
| 23 |
574196502 |
Tubes This part replaces 574196501. Price: $17.99 |
| 24 |
590732501 |
BUMPER ASSY 54 CLEARCUT TRIM S Price: $8.99 |
| 25 |
599857101 |
LINK ASSY This part replaces 588783301. Price: $9.99 |
| 26 |
589813301 |
PLUG CHRISTMAS TREE Price: $2.99 |
| 27 |
532110452 |
NUT PUSH M Price: $2.99 |
| 28 |
510022302 |
Screws This part replaces 510022301. Price: $5.99 |
| 29 |
594944501 |
Bolts This part replaces 872140864. Price: $7.99 |
| 31 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 32 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 33 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 34 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 35 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 36 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 37 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 38 |
588438301 |
SCREW.7/16-14 X 2.125.WASHER Price: $5.99 |
| 39 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
588252901 |
NUT.HEX.FLANGE.INS.BLK.3/8-16 This part replaces 532400244. Price: $3.99 |
| 42 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 43 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 44 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 45 |
532178515 |
WASHER Price: $5.99 |
