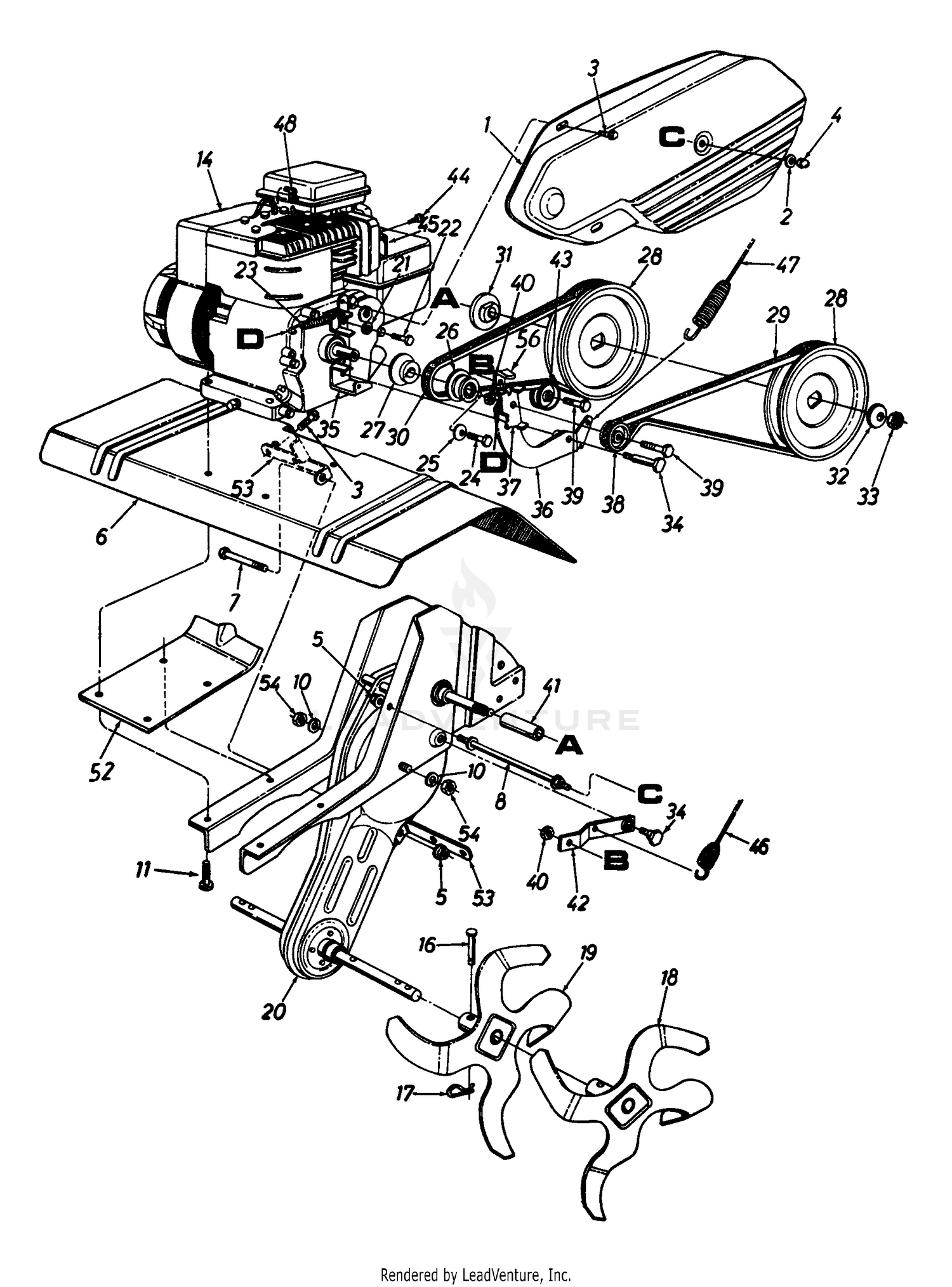

| Ref | Part Number | Description |
|---|
| 2 |
736-3020 |
Fl-Wash..266" I.D. x .625" O.D. Price: $5.94 |
| 3 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 4 |
712-0392 |
Hex L-Stop Nut 1/4-28 Thd. Price: $6.01 |
| 5 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 8 |
711-0920 |
Belt Cover Bolt Price: $26.84 |
| 10 |
736-0171 |
L-Wash. 7/16" I.D. Price: $3.86 |
| 11 |
710-0502A |
Hex L-Wash. TT-Tap Scr. 3/8-16 x 1.25" Lg. Price: $5.71 |
| 14 |
N/A |
Engine |
| 16 |
711-0415 |
Clevis Pin .375" Dia. x 1.62" Lg. Price: $4.04 |
| 17 |
714-0149B |
Internal Cotter Pin Price: $3.95 |
| 18 |
642-0005-0637 |
Outer Tine Assembly LH This part replaces 642-0005. Price: $53.37 |
| 19 |
642-0003-0637 |
TINE ASSEMBLY (INNER) (LH) This part replaces 642-0003. Price: $53.37 |
| 22 |
710-0107 |
HEX SCREW 5/16-24 x .50 Not Available Price: |
| 23 |
732-0697 |
Return Spring 2.7" Lg. Price: $9.43 |
| 24 |
710-0191 |
Hex Bolt 3/8-24 x 1.25" Lg. Price: $4.02 |
| 25 |
736-0452 |
Bell-Wash. .396" I.D. x 1.14" O.D. Price: $4.05 |
| 26 |
756-0600 |
Outer Engine Pulley Half Price: $37.47 |
| 27 |
756-0971 |
Inner Engine Pulley Half Price: $12.60 |
| 28 |
756-0585 |
Fl-Pulley 6" Dia. Price: $36.43 |
| 29 |
954-0429 |
BELT 3L X 45.68" This part replaces 754-0429. Price: $26.80 |
| 30 |
954-0428 |
V-BELT This part replaces 754-0428. Price: $32.28 |
| 31 |
948-0350 |
PULLEY MOUNTING ADAPTER This part replaces 748-0350. Price: $18.85 |
| 32 |
736-0112 |
Bell-Wash..535" I.D. x 1.5" O.D. Price: $8.48 |
| 33 |
712-3029 |
Hex Jam Nut 1/2-20 Thd. (Gr. 5) Price: $6.01 |
| 35 |
786-0040B-0637 |
BRACKET This part replaces 786-0040. Price: $26.13 |
| 36 |
686-0013 |
Reverse Arm Ass'y. Price: $37.81 |
| 37 |
786-0041-0637 |
KEEPER PLATE This part replaces 786-0041. Price: $7.40 |
| 38 |
756-0313 |
Fl-Idler 2.12" O.D. Price: $24.48 |
| 39 |
710-0723 |
Hex Cap Bolt 3/8-16 x 1.25" Lg. Price: $4.04 |
| 40 |
712-0266A |
JAM LOCK NUT This part replaces 712-0266. Price: $3.43 |
| 41 |
950-0892 |
SPACER This part replaces 750-0892. Price: $9.85 |
| 43 |
756-0313 |
Fl-Idler 2.12" O.D. Price: $24.48 |
| 44 |
710-0783 |
HEX SCREW WASH HD 10-32X.38 Not Available Price: |
| 45 |
BS-796956 |
MUFFLER DEFLECTOR Not Available This part replaces 751-0233. Price: |
| 46 |
946-0918 |
CABLE This part replaces 746-0918. Price: $26.69 |
| 47 |
746-0919 |
CLUTCH CONTROL CABLE - REVERSE Not Available Price: |
| 53 |
786-0053-0637 |
Tine Shield Bracket This part replaces 786-0053. Price: $9.28 |
| 54 |
912-0240 |
Hex Jam Nut 7/16-20 This part replaces 712-0240. Price: $3.90 |
