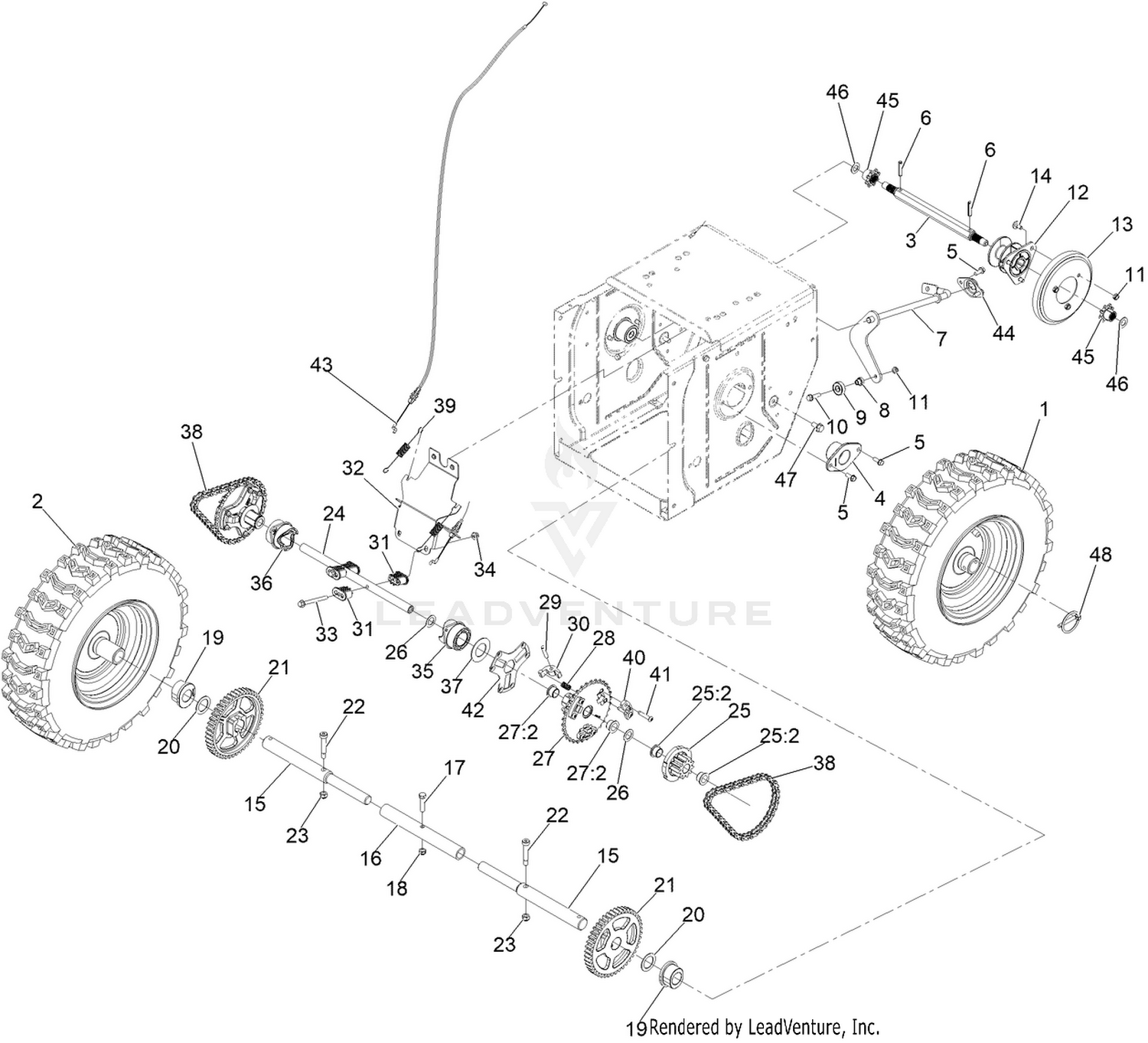

Traction Drive Assembly
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-6668 | LH WHEEL AND TIRE ASM Price: $89.99 |
| 2 | 136-6667 | RH WHEEL AND TIRE ASM Price: $89.99 |
| 3 | 125-1135 | SHAFT-HEX Price: $43.99 |
| 4 | 108-7319 | RETAINER-BEARING Price: $29.99 |
| 5 | 32144-85 | SCREW-HWH Price: $1.59 |
| 6 | 32121-9 | PIN-ROLL, SLOTTED Price: $3.09 |
| 7 | 137-6162-03 | Rod-Shift Price: Call Us |
| 8 | 119-7684 | SPACER-PLATE, SHIFT Price: $1.49 |
| 9 | 121-6835 | BEARING-BALL Price: $7.79 |
| 10 | 32144-86 | SCREW-HWHTF Price: $1.29 |
| 11 | 137-3091 | NUT-HEX Price: $1.19 |
| 12 | 119-7630 | TRUNNION Price: $12.99 |
| 13 | 119-1567 | WHEEL-FRICTION Price: $44.99 |
| 14 | 137-6246 | SCREW-SHOULDER Price: $1.19 |
| 15 | 136-6640 | AXLE Price: $35.99 |
| 16 | 106-7259 | TUBE-AXLE Price: $89.99 |
| 17 | 137-3051 | SCREW-HH Price: $5.89 |
| 18 | 137-3089 | NUT-HEX Price: $1.19 |
| 19 | 136-6641 | BUSHING-AXLE Price: $6.29 |
| 20 | 138-0725 | WASHER-THRUST Price: $1.19 |
| 21 | 136-6642 | GEAR-AXLE Price: $31.99 |
| 22 | 138-0720 | BOLT-SHOULDER, HSH Price: $3.09 |
| 23 | 137-3093 | NUT-HEX Price: $1.19 |
| 24 | 107-8883 | SHAFT-INTERMEDIATE Price: $59.99 |
| 26 | 108-0015 | WASHER-FLAT Price: $0.39 |
| 28 | 107-8885 | SPRING-COMPRESSION Price: $2.39 |
| 29 | 107-8899 | PIN-DOWEL Price: $2.29 |
| 30 | 107-8879 | PAWL-CLUTCH Price: $7.29 |
| 31 | 107-8889 | GUIDE-COLLAR Price: $4.89 |
| 32 | 136-6648-03 | BRACE-SHIFT, COLLAR Price: $10.99 |
| 33 | 138-3653 | SCREW-HHF Price: $1.19 |
| 34 | 119-4040 | SCREW-SHOULDER Price: $0.49 |
| 35 | 107-8887 | COLLAR-SHIFT, LH Price: $10.99 |
| 36 | 107-8888 | COLLAR-SHIFT, RH Price: $10.99 |
| 37 | 107-8891 | WASHER-THRUST Price: $5.89 |
| 38 | 108-0016 | CHAIN-ROLLER Price: $57.99 |
| 39 | 107-8893 | SPRING-EXTENSION Price: $7.29 |
| 40 | 107-8880 | SUPPORT-PAWL Price: $5.99 |
| 41 | 137-3010 | SCREW-BHCS Price: $1.39 |
| 42 | 136-7318 | RETAINER-PAWL, PIN Price: $6.09 |
| 43 | 138-0726 | Cable-Clutch Price: Call Us |
| 44 | 136-6647-03 | RETAINER-ROD, SHIFT Price: $3.49 |
| 45 | 125-1134 | GEAR-PINION, 8 TOOTH Price: $6.09 |
| 46 | 36-4780 | WASHER-PLAIN Price: $7.09 |
| 47 | 32144-14 | SCREW-HWHTF Price: $4.29 |
