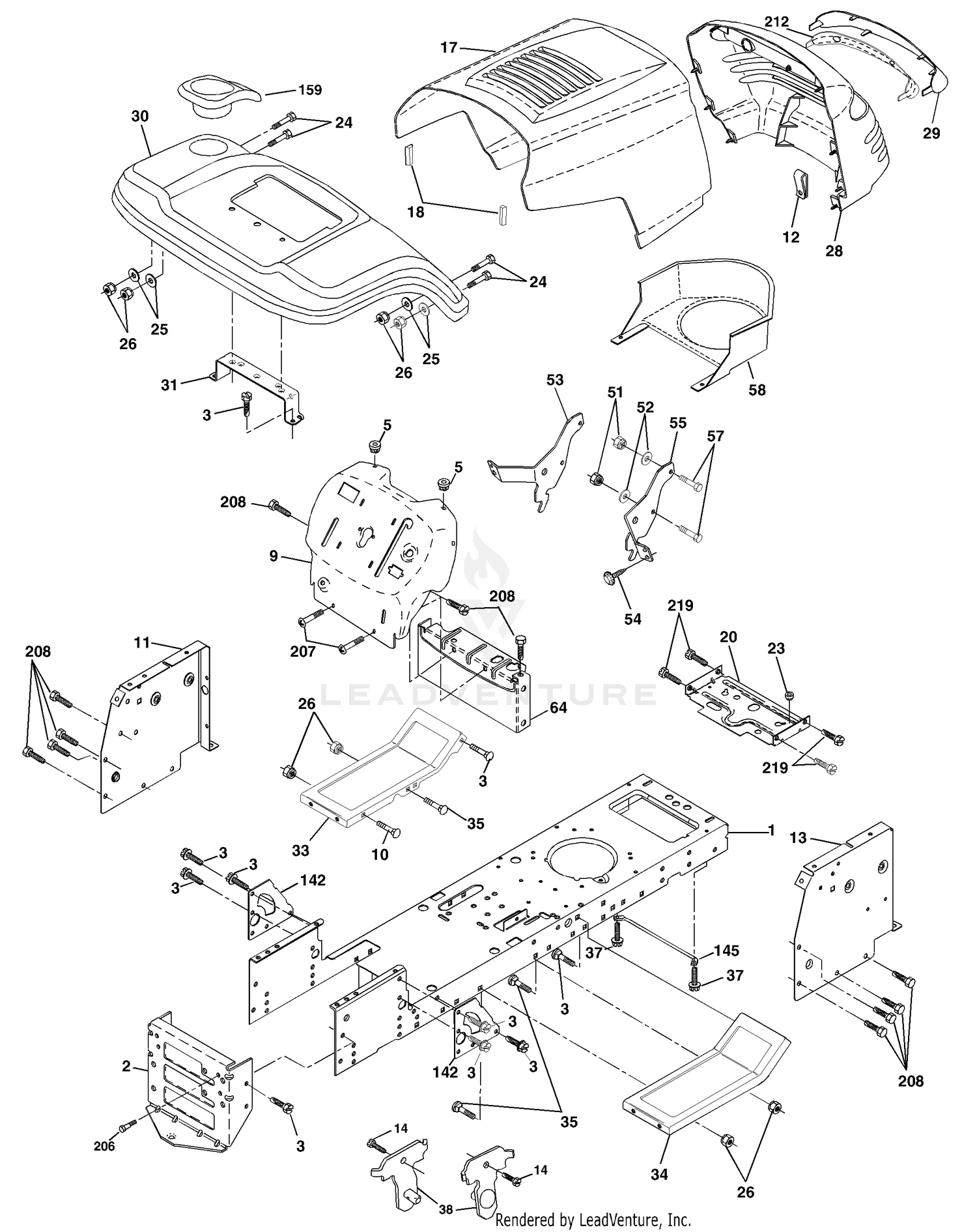

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 2 |
106-9208 |
SHORT CYLINDER PIN ASM Price: $83.12 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
17060612 |
Screw 3/8-16x.75 Price: Call Us |
| 3 |
99-5643 |
HOSE-HYD Price: $125.90 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 6 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 7 |
99-5641 |
HOSE-HYD Price: $136.64 |
| 8 |
94-5808 |
DISCONTINUED Price: Call Us |
| 9 |
168337X012 |
Dash P/L Price: Call Us |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 10 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 11 |
125-1906 |
PIN-CYLINDER This part replaces 105-9889. Price: $27.84 |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 12 |
145660 |
Clip Tinnerman Price: Call Us |
| 13 |
172106 |
Panel Dash Rh Price: Call Us |
| 13 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
| 14 |
75-5220-03 |
DISCONTINUED Price: Call Us |
| 15 |
75-5200-03 |
BRACKET-SPRING, RH Price: $95.29 |
| 16 |
75-5210-03 |
BRACKET-SPRING, CENTER Price: $94.91 |
| 17 |
159639X428 |
Hood LT/PL Price: Call Us |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 18 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 19 |
328-7 |
SCREW-HH Price: $4.00 |
| 20 |
180679 |
Plate Mtg Battery Fuel Tank Fr Price: Call Us |
| 20 |
32151-48 |
E-RING Price: $1.41 |
| 21 |
282-4 |
SHACKLE Price: $32.98 |
| 22 |
5-0743-03 |
SPRING-MOWER Price: $188.53 |
| 23 |
124028X |
Bushing Price: Call Us |
| 23 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Gr 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 25 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 27 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 93-9310. Price: $582.35 |
| 28 |
179844 |
Grille LT/PL Price: Call Us |
| 28 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 29 |
170472X599 |
Lens LT/PL Price: Call Us |
| 29 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 30 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 30 |
169470X428 |
Fender Footrest STLT Pnt Price: Call Us |
| 31 |
136619 |
Bracket Support Fender Price: Call Us |
| 31 |
75-5900 |
HOSE Price: $78.45 |
| 32 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 33 |
179716X428 |
Footrest Pnt Lh Price: Call Us |
| 33 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 34 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 34 |
179717X428 |
Footrest Pnt Rh Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 37 |
110-9709 |
HYD CYLINDER ASM This part replaces 99-6986. Price: $743.86 |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 39 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 41 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 51 |
73800400 |
Nut Lock Hex W/Ins 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
144697 |
Bracjet Grukke Lh Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket Grille Rh Price: Call Us |
| 57 |
74780412 |
Bolt Hex 1/4-20 x 3/4 Price: Call Us |
| 58 |
174930 |
Duct Air Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 114 |
158112 |
Keeper Belt Rear Lh Price: Call Us |
| 115 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
169473X428 |
Cupholder Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 211 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 212 |
156229 |
Insert Lens Reflect P/L LT Price: Call Us |
| 219 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
