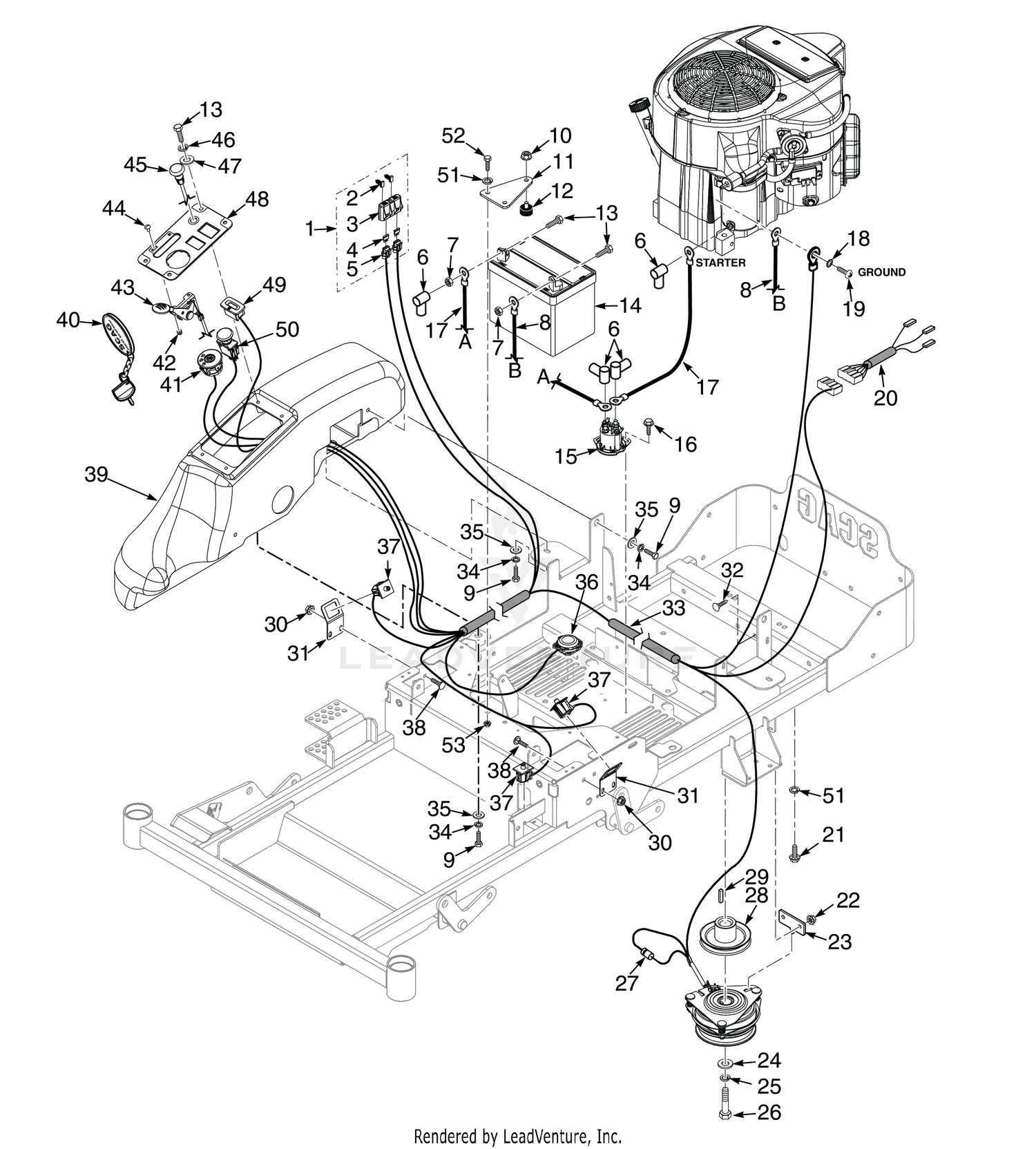

| Ref | Part Number | Description |
|---|
| 1 |
483642 |
Double Fuse Assy. Price: Call Us |
| 2 |
482588 |
Clip, Fuse Holder Price: Call Us |
| 3 |
483571 |
Cover, Sealed Double Price: Call Us |
| 4 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 5 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 6 |
48126 |
RUBBER BOOT Price: Call Us |
| 7 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 8 |
48029-14 |
Battery Cable, 31-1/2" Black (25KA, 26DFI, 31DFI) - Kawasaki Price: Call Us |
| 9 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 10 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 11 |
428183 |
Battery Hold Down Price: Call Us |
| 12 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 13 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 15 |
483278 |
Solenoid, Sealed (Briggs & Stratton) Price: Call Us |
| 16 |
04011-14 |
Screw, Self-Tapping 1/4-20 x 3/4 Price: Call Us |
| 17 |
48029-29 |
Battery Cable, 18" Red w/Braid (25KA, 26DFI, 31DFI) - Kawasaki Price: Call Us |
| 18 |
04031-03 |
Lockwasher, 5/16" Ext. Tooth (Kohler x1) Price: Call Us |
| 19 |
04002-06 |
Bolt, Hex Head M8 - 1.25 x 16 (48V / 52V) Price: Call Us |
| 20 |
483529 |
Wire Harness Adapter, Kawasaki (not shown) Price: Call Us |
| 21 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 22 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 23 |
427961 |
Plate, Anti-Rotation Price: Call Us |
| 24 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 25 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 26 |
04102-12 |
Bolt, Hex Head 7/16-20 x 3¼" w/Patch Price: Call Us |
| 27 |
483958 |
Diode, 600V 6 Amp Price: Call Us |
| 28 |
485956 |
Pulley, 4-1/2" - 1" Bore Price: Call Us |
| 29 |
04063-01 |
Key, 1/4 x 1/4 x 1.25" Pulley Mtg. Price: Call Us |
| 30 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 31 |
426727 |
Bracket, Switch Price: Call Us |
| 32 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 33 |
486518 |
Wire Harness Price: Call Us |
| 34 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 35 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 36 |
483474 |
Switch, Double Pole - Twist Price: Call Us |
| 37 |
483473 |
Switch, Double Pole - Plunger Price: Call Us |
| 38 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 39 |
463189 |
Console Tank w/Decals, SZL-36 Price: Call Us |
| 40 |
462069 |
Key, Assembly w/Fob Price: Call Us |
| 41 |
483472 |
Ignition Switch Price: Call Us |
| 42 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 43 |
483645 |
Throttle Control, Kawasaki Price: Call Us |
| 44 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 45 |
483646 |
Choke Control, Kawasaki Price: Call Us |
| 46 |
04030-02 |
Lockwasher, 1/4†Spring Price: Call Us |
| 47 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 48 |
462942 |
Instrument Panel w/Decal, SZL-36 Price: Call Us |
| 49 |
484565 |
Hour Meter, Inductive Price: Call Us |
| 50 |
485833 |
Switch, PTO - 10 Amp Price: Call Us |
| 51 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 52 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
