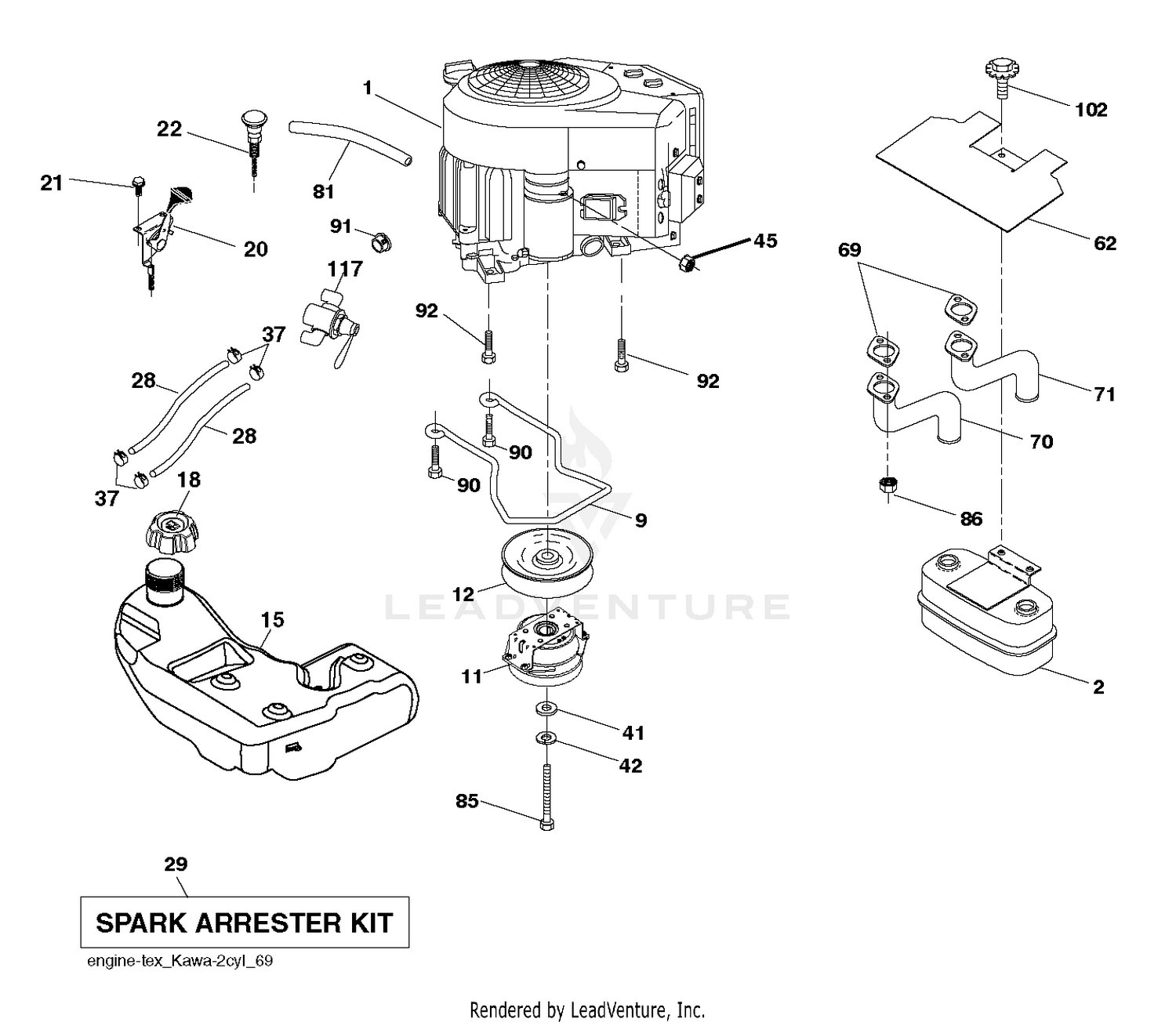

| Ref | Part Number | Description |
|---|
| 1 |
125-7247 |
CASE ASM Price: $631.77 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 3 |
125-6944 |
SEAL-OIL Price: $31.03 |
| 4 |
125-6936 |
FLANGE Price: $508.81 |
| 5 |
125-6919 |
STUD Price: $6.42 |
| 6 |
125-6972 |
COVER-FILLER Price: $10.14 |
| 7 |
125-6977 |
COVER Price: $8.10 |
| 8 |
125-7107 |
PIPE Price: $8.10 |
| 9 |
125-6909 |
O-RING Price: $2.55 |
| 9 |
596501502 |
Keepers This part replaces 501832601. Price: $9.99 |
| 10 |
125-6957 |
O-RING Price: $3.51 |
| 11 |
125-7174 |
WASHER-SEAL Price: $5.45 |
| 11 |
587241401 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH01 Price: $229.99 |
| 12 |
125-7197 |
O-RING Price: $2.55 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 13 |
125-7214 |
BOLT Price: $3.77 |
| 14 |
125-7214 |
BOLT Price: $3.77 |
| 15 |
125-7216 |
BOLT Price: $3.48 |
| 16 |
125-7221 |
BOLT Price: $4.09 |
| 17 |
125-7224 |
BOLT Price: $4.09 |
| 18 |
125-7229 |
NUT Price: $3.12 |
| 19 |
125-6950 |
COVER Price: $13.53 |
| 20 |
125-7199 |
O-RING Price: $2.20 |
| 20 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606901 |
BOLT.HEX.7/16-20X3.GR5.YELLOW Price: $3.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 117 |
532420828 |
VALVE FUEL RESERVE Price: $27.99 |
