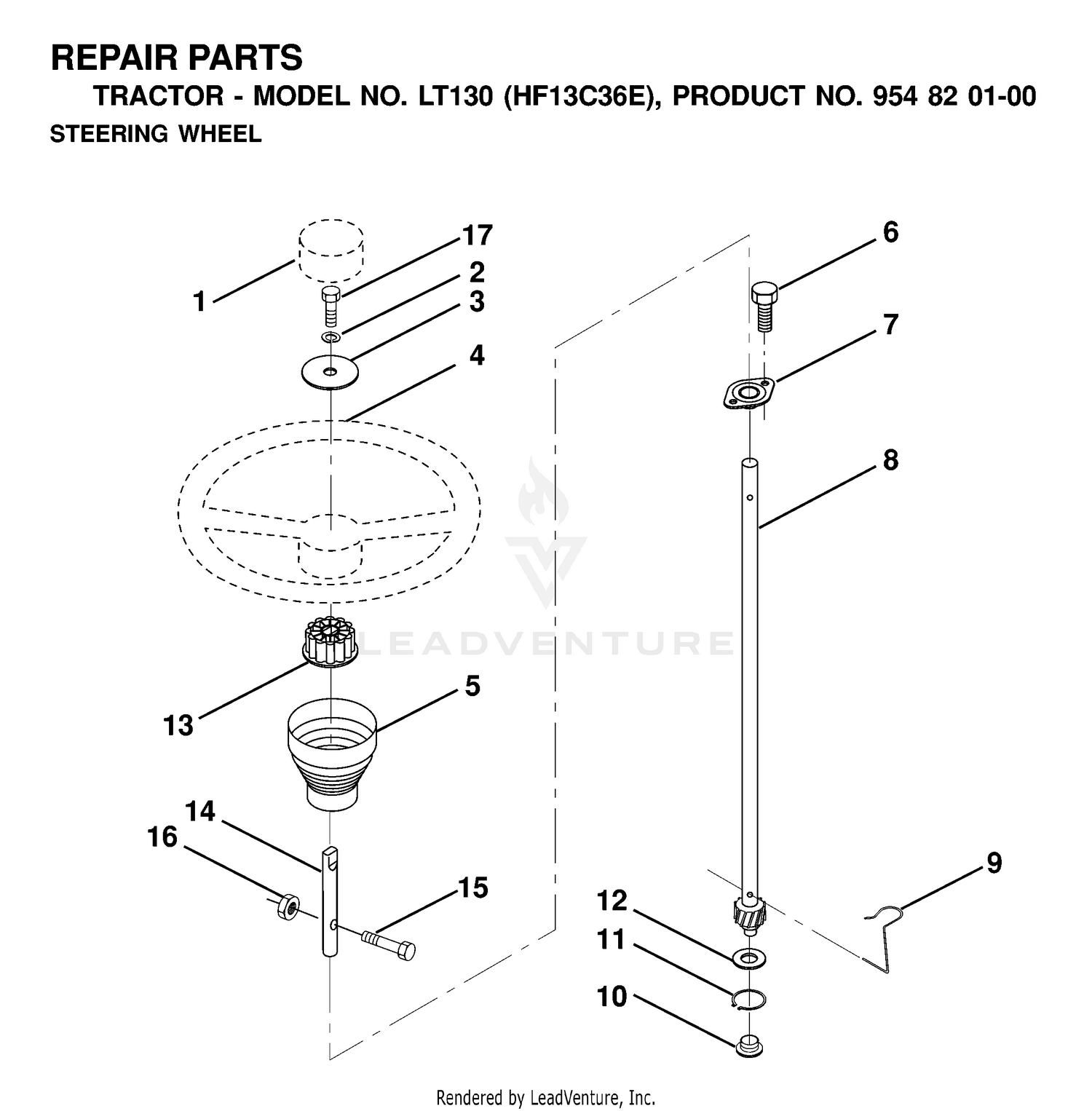

| Ref | Part Number | Description |
|---|
| 1 |
32128-20 |
NUT-HF Price: $0.99 |
| 1 |
532124416 |
INSERT,STR WHEEL Price: $7.89 |
| 2 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 3 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 3 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99 |
| 4 |
532124415 |
STEERING WHEEL Price: $58.99 |
| 4 |
94-7204 |
ROD-PROP, SEAT Price: $37.74 |
| 5 |
532127396 |
STEERING SLEEVE Price: $2.66 |
| 5 |
94-7203 |
BRACKET Price: $30.73 |
| 6 |
321-3 |
SCREW-HH Price: $0.28 |
| 6 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 7 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 7 |
532155107 |
STEERING BUSHING KIT This part replaces 532155104. Price: $6.99 |
| 8 |
119-0589 |
ROPS ASM Price: $1,160.80 |
| 9 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 9 |
532124210 |
STEERING CLIP Price: $4.99 |
| 10 |
112-2923 |
SEAT ASM Price: $290.09 |
| 10 |
532123438 |
BUSHING STEER LWR Price: $5.99 |
| 11 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 11 |
812000045 |
RING Price: $5.99 |
| 12 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 12 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 13 |
132-7745 |
FRESH WATER TANK ASM Price: $208.11 |
| 13 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532100711. Price: $7.99 |
| 14 |
106-5052 |
CAP-WATER, FRESH Price: $6.72 |
| 14 |
532153721 |
SHAFT EXT STEERING This part replaces 532153720. Price: $54.99 |
| 15 |
132-7706 |
ELBOW-90DEG Price: $10.09 |
| 15 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 16 |
108-3289-03 |
PANEL-SEAT, RH Price: $146.39 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
132-7664-03 |
PANEL-SEAT, LH Price: $146.39 |
| 17 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 18 |
94-7085 |
TRIM Price: $54.26 |
| 19 |
108-3290 |
BARRIER-NOISE, SEAT Price: $30.83 |
| 20 |
327-4 |
SCREW-HH Price: $2.20 |
| 21 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 22 |
52-2861 |
WASHER Price: $1.29 |
| 23 |
32128-50 |
NUT-FLANGE Price: $1.78 |
| 24 |
100-7011 |
SPIGOT-90 DEG Price: $17.78 |
| 25 |
33104-035 |
SCREW-HHF Price: $0.88 |
| 26 |
140-6360 |
ARMREST-RH This part replaces 119-0732-03. Price: $54.73 |
| 27 |
140-6359 |
ARMREST LH This part replaces 119-0731-03. Price: $54.73 |
| 28 |
2412-133 |
CLAMP-R Price: $3.19 |
| 29 |
132-7666 |
BARRIER-NOISE, SEAT Price: $28.92 |
| 30 |
100-3524 |
SWITCH-SEAT Price: $57.99 |
| 31 |
120-0616 |
DECAL-WATER, FRESH Price: $11.84 |
| 32 |
132-5619-03 |
MOUNT-TANK, EYE WASH Price: $45.79 |
| 33 |
132-7628-03 |
BAND-TANK, EYE WASH Price: $16.45 |
| 34 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 35 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 36 |
132-7627-03 |
CLAMP-BRACKET, FRESH WATER TANK Price: $40.72 |
| 37 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 38 |
3234-1 |
SCREW-HHF Price: $1.62 |
