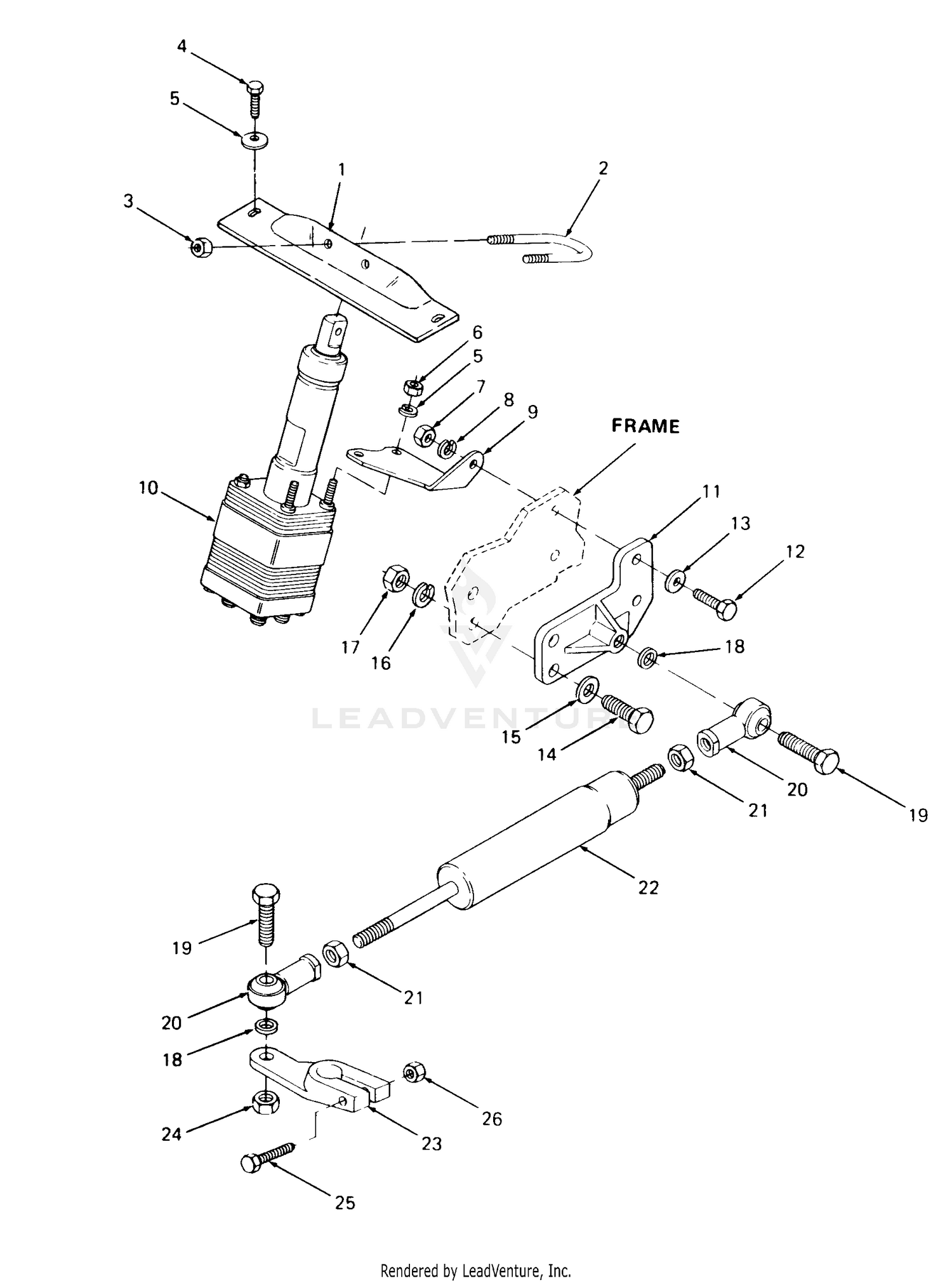

| Ref | Part Number | Description |
|---|
| 1 |
703-2135 |
STEERING SUPPORT Not Available Price: |
| 2 |
747-3016 |
CLAMP Not Available Price: |
| 3 |
712-0237 |
Nut, Hex Center Lock, 5/16-24 Price: $4.37 |
| 4 |
710-1260A |
Self Tapping Screw, 5/16-18 x .75 This part replaces 710-3004. Price: $3.34 |
| 5 |
736-0242 |
Washer, Bell, .345 X .88 X .060 Thk Price: $3.75 |
| 6 |
912-3057 |
Hex Nut, 5/16-24 This part replaces 712-3057. Price: $5.94 |
| 7 |
712-3000 |
Nut, Hex Center Lock, 3/8-16 GR5 Price: $3.90 |
| 8 |
736-0169 |
Washer, Lock, 3/8 Price: $3.33 |
| 9 |
703-1857 |
BRACKET-PWR STEER BOX Not Available Price: |
| 11 |
719-3067 |
BRACKET, CYLINDER MOUNTING Not Available Price: |
| 12 |
710-3005 |
Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5 Price: $3.61 |
| 13 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 14 |
710-3032 |
Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5 Price: $5.66 |
| 15 |
736-3084 |
Washer, Flat, .51 X 1.12 X .06 Thk HDN Price: $4.39 |
| 16 |
736-0921 |
Washer, Lock, 1/2 Price: $3.90 |
| 17 |
712-3022 |
Nut, Hex Center Lock, 1/2-13 GR5 Price: $3.61 |
| 18 |
736-3003 |
FLAT WASHER .531X.688X.054 Not Available Price: |
| 19 |
710-3177 |
CAP SCREW:.500-13X1.50 Not Available Price: |
| 20 |
923-3053 |
BALL JOINT This part replaces 723-3053. Price: $94.20 |
| 21 |
712-3029 |
Nut, Hex Jam, 1/2-20 GR5 Price: $6.01 |
| 22 |
717-3041A-0637 |
POWER STEERING CYLINDER Not Available This part replaces 717-3041A. Price: |
| 23 |
719-3065 |
STEERING ARM Not Available Price: |
| 24 |
912-3066 |
Hex Nut, 1/2-20 This part replaces 712-3066. Price: $6.01 |
| 25 |
710-3083 |
Screw, Hex Cap, 5/16-18 X 1.38 Lg GR5 Price: $3.94 |
| 506506202 |
586966402 |
PEDAL RUBBER L = 102MM This part replaces 506506202. Price: $14.99 |
| 506506501 |
506506501 |
PEDAL SHAFT CLAMP Price: $6.99 |
| 506535602 |
506535602 |
SPRING Price: $4.99 |
| 506535701 |
506919101 |
SPRING This part replaces 506535701. Price: $5.99 |
| 506535702 |
506535702 |
SPRING Price: $5.99 |
| 506542501 |
506542501 |
SPRING Price: $6.99 |
| 506574501 |
506574501 |
BRAKE PEDAL ASSY Price: $59.99 |
| 506599201 |
506952601 |
CABLE This part replaces 506599201. Price: $44.99 |
| 506599301 |
506599301 |
CONNECTOR Price: $5.99 |
| 506770502 |
506770502 |
PEDAL Price: $54.99 |
| 506781802 |
506781802 |
Price: $46.55 |
| 506887701 |
506887701 |
LINK Price: $6.40 |
| 721615201 |
721615201 |
Cotter Pin Price: $1.99 |
| 721839901 |
721839901 |
CLEVIS PIN Price: $5.99 |
| 725244951 |
725244951 |
BOLT - M8X16 Price: $2.99 |
| 725246151 |
725246151 |
BOLT Price: $4.99 |
| 732211801 |
732211801 |
LOCKNUT M8 Price: $3.99 |
| 734116401 |
734116401 |
WASHER BRB 8.4X17 Price: $5.99 |
| 735310920 |
735310920 |
E-RING 5 Price: $3.99 |
