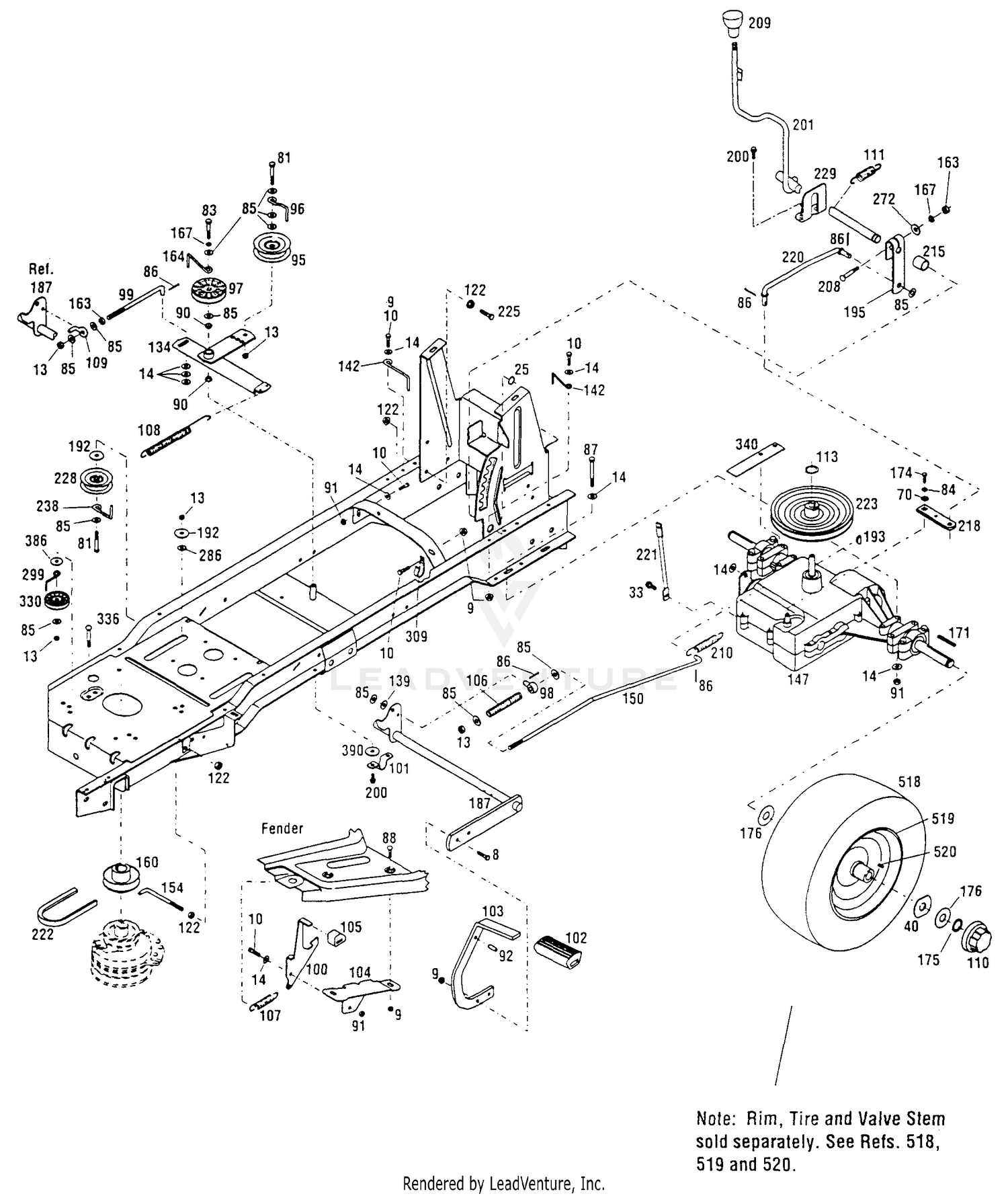

| Ref | Part Number | Description |
|---|
| 8 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 This part replaces 1100045. Price: $3.66 |
| 9 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 10 |
1100044 |
Hex Head Capscrew, 5/16-18 x 3/4 Price: $3.76 |
| 13 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 14 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 25 |
716-0101 |
Retaining Ring-external This part replaces 1113527. Price: $3.37 |
| 33 |
1766984 |
SCREW-FLANGE LOCK Not Available Price: |
| 40 |
1766241 |
SPECIAL WASHER Not Available Price: |
| 70 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 1107381. Price: $5.94 |
| 81 |
710-3144 |
Hex Cap Screw, 3/8-16 x 2.00 This part replaces 1100048. Price: $4.02 |
| 83 |
710-0347 |
Hex Cap Screw 3/8-16 x 1.75 This part replaces 1100086. Price: $4.39 |
| 84 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 85 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 86 |
914-0507 |
Cotter Pin, 3/32 x .75 This part replaces 1100346. Price: $3.93 |
| 87 |
710-0176 |
Hex Bolt 5/16-18 x 2.75 This part replaces 1111609. Price: $3.89 |
| 88 |
710-0260A |
Carriage Bolt, 5/16-18 x .62 This part replaces 1186097. Price: $3.71 |
| 90 |
1715538 |
BUSHING-NYLINER .5X.5 Not Available Price: |
| 91 |
1732499 |
Locknut, 5/16-18 Price: $3.49 |
| 92 |
1770205 |
PIN-DRIVE Not Available Price: |
| 95 |
1756151 |
BACKSIDE PULLEY IDLER Not Available Price: |
| 96 |
1760096 |
BELT GUIDE Not Available Price: |
| 97 |
1760097 |
IDLER PULLEY Not Available Price: |
| 98 |
1751848 |
SWIVEL Not Available Price: |
| 99 |
1772460 |
CLUTCH ROD Not Available Price: |
| 100 |
1771514 |
LATCH-BRAK Not Available Price: |
| 101 |
1765156 |
CLIP Not Available Price: |
| 102 |
1765167 |
PAD-BRAKE Not Available Price: |
| 103 |
1772741 |
BRAKE PEDAL Not Available Price: |
| 104 |
1765257 |
BRACKET-BRAKE LOCK Not Available Price: |
| 105 |
1765297 |
PAD-PARKN Not Available Price: |
| 106 |
1765305 |
COMPRESSION SPRING Not Available Price: |
| 107 |
1985140 |
EXTENSION SPRING Not Available Price: |
| 108 |
1765402 |
Extension Spring Price: $29.34 |
| 109 |
1765461 |
PIVOT ROD Not Available Price: |
| 110 |
1766215 |
HUB CAP Not Available Price: |
| 111 |
1773176 |
SPRING Not Available Price: |
| 113 |
1118808 |
RETAINING RING Not Available Price: |
| 122 |
1186393 |
Flange Nut, 3/8-16 Price: $2.63 |
| 134 |
1765064 |
ARM ASSEMBLY - IDLER Not Available Price: |
| 139 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 1890945. Price: $6.20 |
| 142 |
1767808 |
BELT GUIDE Not Available Price: |
| 150 |
1767895 |
BRAKE ROD Not Available Price: |
| 154 |
1766025 |
KEEPER-CLU Not Available Price: |
| 160 |
1766200 |
ENGINE SHEAVE Not Available Price: |
| 163 |
712-3017 |
HEX NUT 3/8-16 GR5 This part replaces 1186231. Price: $3.90 |
| 164 |
1767900 |
BELT GUIDE Not Available Price: |
| 167 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 171 |
714-0139 |
Key, 3/16-2 (A) This part replaces 1104335. Price: $7.98 |
| 174 |
710-0230 |
HEX SCREW 1/4-28 x .50 GR5 Not Available This part replaces 1111683. Price: |
| 175 |
716-0231 |
E-ring..75 This part replaces 1185388. Price: $3.50 |
| 176 |
1747998 |
FLAT WASHER Not Available Price: |
| 187 |
1772728 |
BRAKE PEDAL ASSEMBLY Not Available Price: |
| 192 |
936-0206 |
Washer, Spec .378 x 1.0 x .125 Thk This part replaces 1891733. Price: $3.93 |
| 193 |
914-0868 |
KEY-WOODRUFF .188X.75 This part replaces 1104436. Price: $3.50 |
| 195 |
1770294 |
SHIFT ARM Not Available Price: |
| 200 |
710-1260A |
SCREW 5/16-18 x .750 This part replaces 1724491. Price: $3.34 |
| 201 |
1772830 |
Gear Shift Arm Price: Call Us |
| 208 |
1770298 |
CARRIAGE BOLT Not Available Price: |
| 209 |
1766115 |
KNOB Not Available Price: |
| 210 |
1767884 |
EXTENSION SPRING Not Available Price: |
| 215 |
1766345 |
SPACER Not Available Price: |
| 218 |
1766186 |
ARM-TRANSM Not Available Price: |
| 220 |
1770602 |
ROD-ADJUST Not Available Price: |
| 221 |
1767894 |
SUPPORT-TRANSMISSI Not Available Price: |
| 222 |
1765300 |
V-Belt Price: $73.94 |
| 223 |
1770629 |
SHEAVE-TRA Not Available Price: |
| 225 |
710-0520 |
SCREW 3/8-16 x 1.50 This part replaces 1100047. Price: $3.93 |
| 228 |
956-3054 |
FLAT IDLER WITH FLANGES 2.75 This part replaces 1713803. Price: $45.71 |
| 229 |
1772829 |
GUIDE-SHAF Not Available Price: |
| 238 |
1767892 |
BELT GUIDE Not Available Price: |
| 272 |
1701055 |
Special Washer, 3/8 Not Available Price: |
| 286 |
736-0262 |
FLAT WASHER .385X.870X.090 This part replaces 1768818. Price: $3.66 |
| 299 |
1729780 |
BELT GUIDE Not Available Price: |
| 309 |
1747738 |
CLIP-J Not Available Price: |
| 330 |
1756164 |
SHEAVE-IDL Not Available Price: |
| 336 |
710-0560 |
Screw, Carriage, 3/8-16 x 1.75 This part replaces 1186132. Price: $5.94 |
| 340 |
1767899 |
STOP Not Available Price: |
| 386 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 1107385. Price: $3.89 |
| 390 |
936-0117 |
FLAT WASHER This part replaces 1705108. Price: $6.20 |
| 518 |
734-1730-0901 |
Tire Only 20 x 8 x 8 This part replaces 1772455. Price: $92.28 |
| 519 |
1772454 |
RIM-TIRE 1 Not Available Price: |
