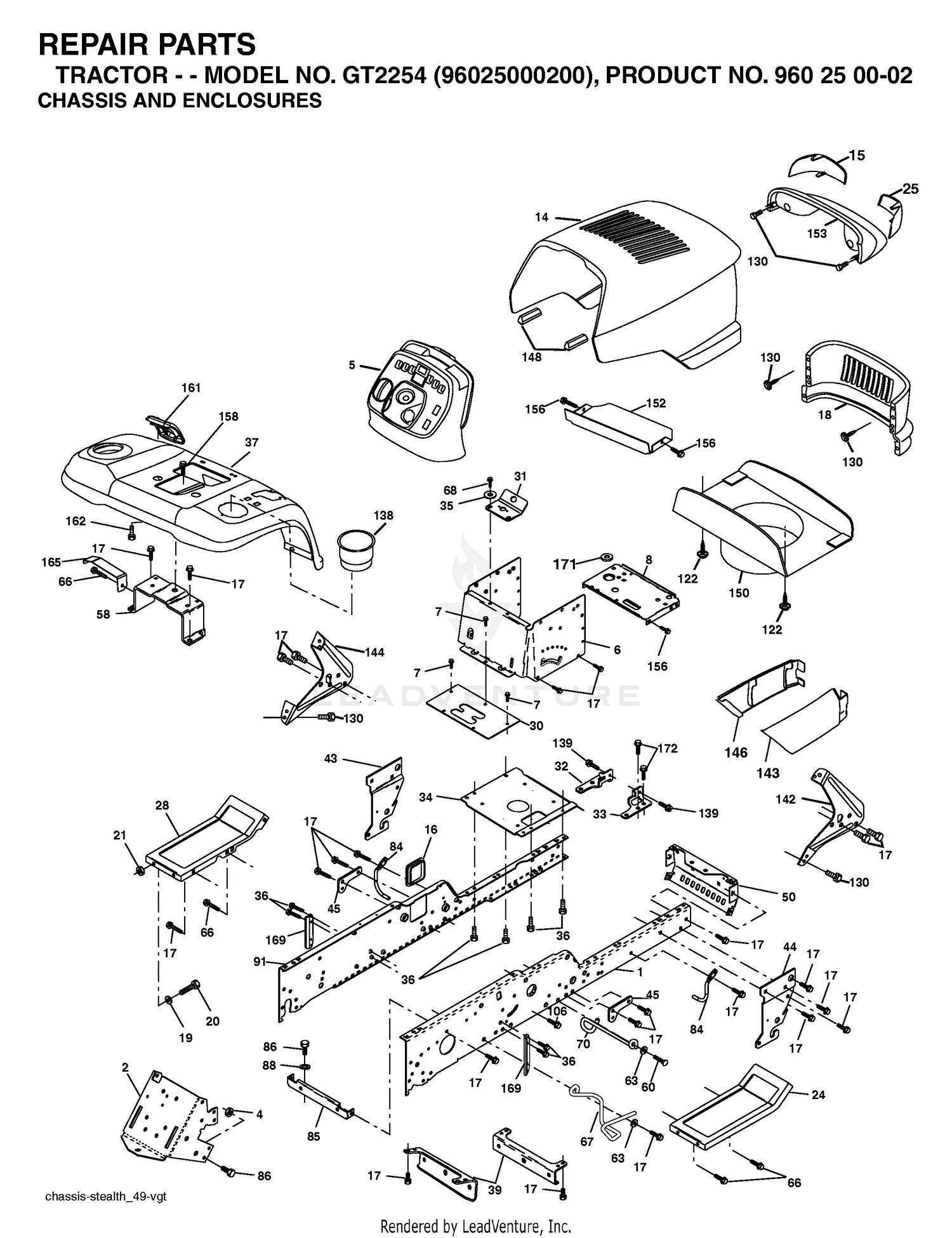

| Ref | Part Number | Description |
|---|
| 1 |
532180375 |
KIT.RAIL.CHASS.RH.GT Price: $59.99 |
| 2 |
108-0686 |
SHIELD-RUBBER, TOP Price: $193.61 |
| 2 |
532175282 |
DRAWBAR, GT Price: $59.99 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
873680700 |
Nut, Crownlock Hex 7/16-14 unc Price: $2.99 |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 5 |
532196094 |
DASH STEALTH This part replaces 532196137. Price: $80.99 |
| 6 |
108-0760 |
COUPLING-JAW, STOCK Price: $136.91 |
| 6 |
532157882 |
DASH VGT, LOWER Price: $29.99 |
| 7 |
105-9455 |
MOTOR Price: $989.33 |
| 7 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 8 |
325-7 |
SCREW-HH Price: $1.53 |
| 8 |
532185518 |
KIT, SUPPORT, BATTERY This part replaces 532184668. Price: $28.65 |
| 9 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 10 |
115-8975 |
BEARING-SELF-ALIGNING Price: $143.54 |
| 11 |
108-0668-03 |
PLATE-SKIRT, SIDE Price: $24.80 |
| 12 |
115-9093 |
SHIELD, RUBBER-SIDE Price: $11.92 |
| 14 |
115-9092 |
SHIELD, RUBBER-FRONT Price: $52.00 |
| 14 |
532188208 |
HOOD.ASM.STEALTH.STV.2004 This part replaces 532190055. Price: $149.99 |
| 15 |
108-0667-03 |
PLATE-SKIRT, FRONT Price: $103.97 |
| 15 |
583125201 |
KIT.HARNESS/LIGHT ASM DUAL This part replaces 532161841. Price: $109.99 |
| 16 |
117-8310 |
BRUSH ASM Price: $1,207.38 |
| 16 |
532121794 |
COVER ACCESS Price: $3.99 |
| 17 |
107-1439-03 |
PLATE-ANGLE Price: $23.40 |
| 17 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 18 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 18 |
532182873 |
GRILLE.STEALTH P/L.YTGT.GREY Price: $169.99 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 21 |
107-1280-01 |
ANGLE-FRONT Price: $136.91 |
| 21 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 22 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 23 |
108-0781 |
COVER-COUPLER Price: $46.69 |
| 24 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532181058. Price: $22.99 |
| 25 |
323-6 |
SCREW-HH Price: $0.66 |
| 25 |
583125201 |
KIT.HARNESS/LIGHT ASM DUAL This part replaces 532161842. Price: $109.99 |
| 26 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 27 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 28 |
108-0844-03 |
PLATE-SHIELD, TOP Price: $53.86 |
| 28 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532181057. Price: $37.99 |
| 30 |
532148411 |
SADDLE Price: $5.99 |
| 31 |
532161419 |
BRACKET SUPT 1-PC VGT STEERING Price: $3.99 |
| 32 |
532161327 |
BRACKET Price: $5.99 |
| 33 |
532161326 |
BRACKET. Price: $3.99 |
| 34 |
532177018 |
PLATE ASM ENG CHASSIS Price: $32.99 |
| 35 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532194868 |
FENDER.PNT.YTGT.WO/SHF.ORANGE Price: $119.99 |
| 39 |
532175278 |
BRACKET AXLE, FRONT Price: $9.99 |
| 43 |
532136939 |
FRONT SUSPENSION BRKT LH Price: $12.99 |
| 44 |
532136940 |
FRONT SUSPENSION BRKT RH Price: $12.99 |
| 45 |
532187270 |
BRACKET ARM SUSPENSION Price: $4.99 |
| 50 |
532175476 |
BRACKET, CHASSIS FRONT Price: $14.99 |
| 58 |
532183569 |
BRACKET ASM., FENDER Price: $9.99 |
| 60 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 63 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 66 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 70 |
532188578 |
GUIDE.BELT.MID.SPAN.54" Price: $4.99 |
| 84 |
532188164 |
UPSTOP 54" Price: $7.99 |
| 85 |
532193923 |
BRKT.SUPPT Price: $6.99 |
| 86 |
596238601 |
Bolts This part replaces 874780716. Price: $2.99 |
| 88 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 91 |
532180374 |
KIT.RAIL.CHASS.LH.GT Price: $57.99 |
| 106 |
817580520 |
BOLT.5/16-18X1.25 Price: $3.99 |
| 122 |
532192512 |
SCREW.WSHD.HEX10-32X5/8 Price: $4.99 |
| 130 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 138 |
583710501 |
CUPHOLDER.YTGT.TWIST LOCK.418 This part replaces 532194869. Price: $9.99 |
| 139 |
532171873 |
BOLT, SHOULDER 5/16-18 Price: $4.99 |
| 142 |
532161897 |
BRACKET DASH STEALTH(R) Price: $5.99 |
| 143 |
532177586 |
SKIRT GRILLE RH Price: $37.99 |
| 144 |
532161900 |
BRACKET DASH STEALTH LH Price: $5.99 |
| 146 |
532177587 |
SKIRT GRILLE LH Price: $23.99 |
| 148 |
532164655 |
EXTRUSION BUMPER (3 2) (2 2) Price: $5.99 |
| 150 |
532190309 |
DUCT.HEAT.HOOD.STEALTH.GT Price: $39.99 |
| 152 |
532177956 |
BROWNING SHIELD Price: $29.99 |
| 153 |
532188212 |
LIGHTBOX.ASM.STV.DL.INC.HUSQ Price: $89.99 |
| 156 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 158 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 161 |
532181787 |
CONSOL.FUEL.WINDOW.BLACK Price: $29.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532183554 |
BRACKET SUPPORT TANK Price: $74.99 |
| 169 |
532188598 |
BRACKET CHASSIS SWAY Price: $7.99 |
| 171 |
532184672 |
BUSHING SNAP Price: $2.99 |
| 172 |
817490614 |
Screw, Hex Washer Hd. 3/8 - 16 x 7/8 This part replaces 817120614. Price: $3.20 |
