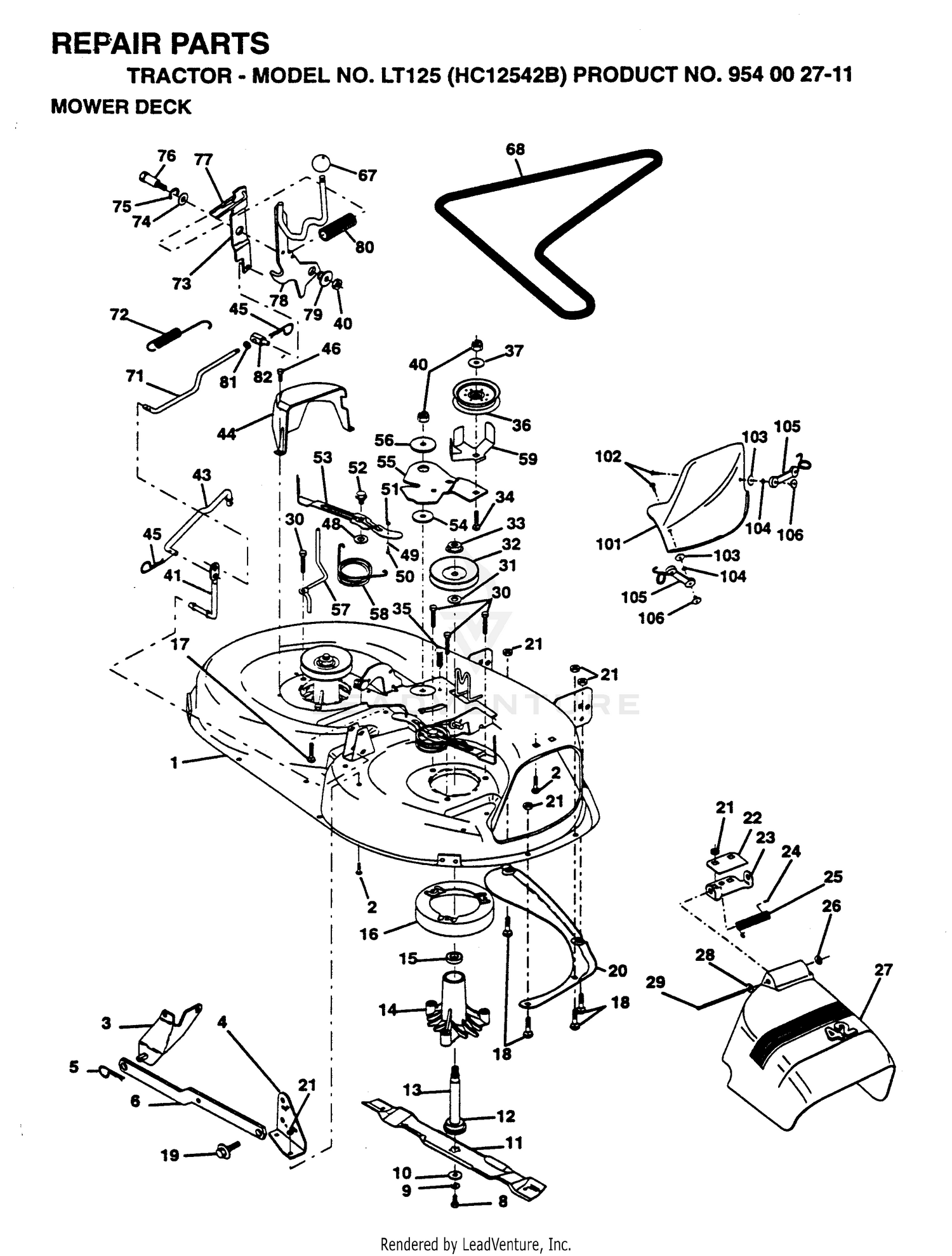

| Ref | Part Number | Description |
|---|
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 4 |
532138440 |
BRKT DECK SW BAR Price: $4.99 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532130832. Price: $9.99 |
| 7 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 17 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532136888. Price: $11.99 |
| 22 |
532134753 |
STIFFENER BRACKET Price: $5.99 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532131267. Price: $4.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532123713 |
SPRING TORSION Price: $6.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK Price: $34.99 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532129861. Price: $14.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 34 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 36 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 40 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 41 |
532133551 |
PIVOT ROD Price: $6.99 |
| 43 |
529842801 |
SERVICE.KIT CLUTCH ROD CLUTCH This part replaces 532140083. Price: $9.99 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK Price: $29.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 48 |
532133944 |
WASHER Price: $3.99 |
| 49 |
532174284 |
ROLLER ASM CAM FOLLOWER This part replaces 532133940. Price: $8.99 |
| 50 |
532131340 |
BOLT Price: $2.99 |
| 51 |
532069180 |
LOCKNUT Price: $2.99 |
| 52 |
532139888 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 53 |
531168401 |
SERVICE KIT ARM BRAKE ASSY This part replaces 532131845. Price: $19.99 |
| 54 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 55 |
532151785 |
KIT.CAM.ROLLER.42".SERVICE This part replaces 532140084. Price: $34.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 57 |
532140090 |
KEEPER Price: $12.99 |
| 58 |
532140086 |
SPRING Price: $4.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 67 |
532106933 |
KNOB T (1/2-HOLE) Price: $6.99 |
| 68 |
532144200 |
V-BELT TRIPATH Price: $39.99 |
| 71 |
531166401 |
SERVICE KIT CLUTCH ROD, CLUTCH This part replaces 532142427. Price: $22.99 |
| 72 |
532131870 |
RETURN SPRING Price: $9.99 |
| 73 |
532127847 |
ARM CLUTCH SECONDARY Price: $2.99 |
| 74 |
532121748 |
WASHER Price: $3.99 |
| 75 |
812000029 |
RING CLIP Price: $3.99 |
| 76 |
532128903 |
BOLT Price: $5.99 |
| 77 |
532127845 |
KEEPER SPRING Price: $4.16 |
| 78 |
532140179 |
CLUTCH ARM Price: $18.99 |
| 79 |
532127498 |
BUSHING.FLANGE.E-RING.GROOVE Price: $4.99 |
| 80 |
532153701 |
SPRING-CLUTCH (2 2 PW01) This part replaces 532128759. Price: $4.99 |
| 81 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 82 |
532142028 |
TRUNNION.ADJUSTABLE.3/8-16 Price: $3.99 |
| 83 |
532120958 |
WASHER Price: $5.99 |
| 84 |
531150901 |
SERVICE KIT BELT KEEPER This part replaces 532144394. Price: $3.99 |
| 85 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 92 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 101 |
532136420 |
COVER MULCH 42" Price: $13.99 |
| 102 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 103 |
819061216 |
WASHER Price: $3.99 |
| 104 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 105 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130758. Price: $5.99 |
| 106 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 532130794 |
KIT.MANDREL.ASM.3.BOLT |
Price: $49.99 532130794 |
