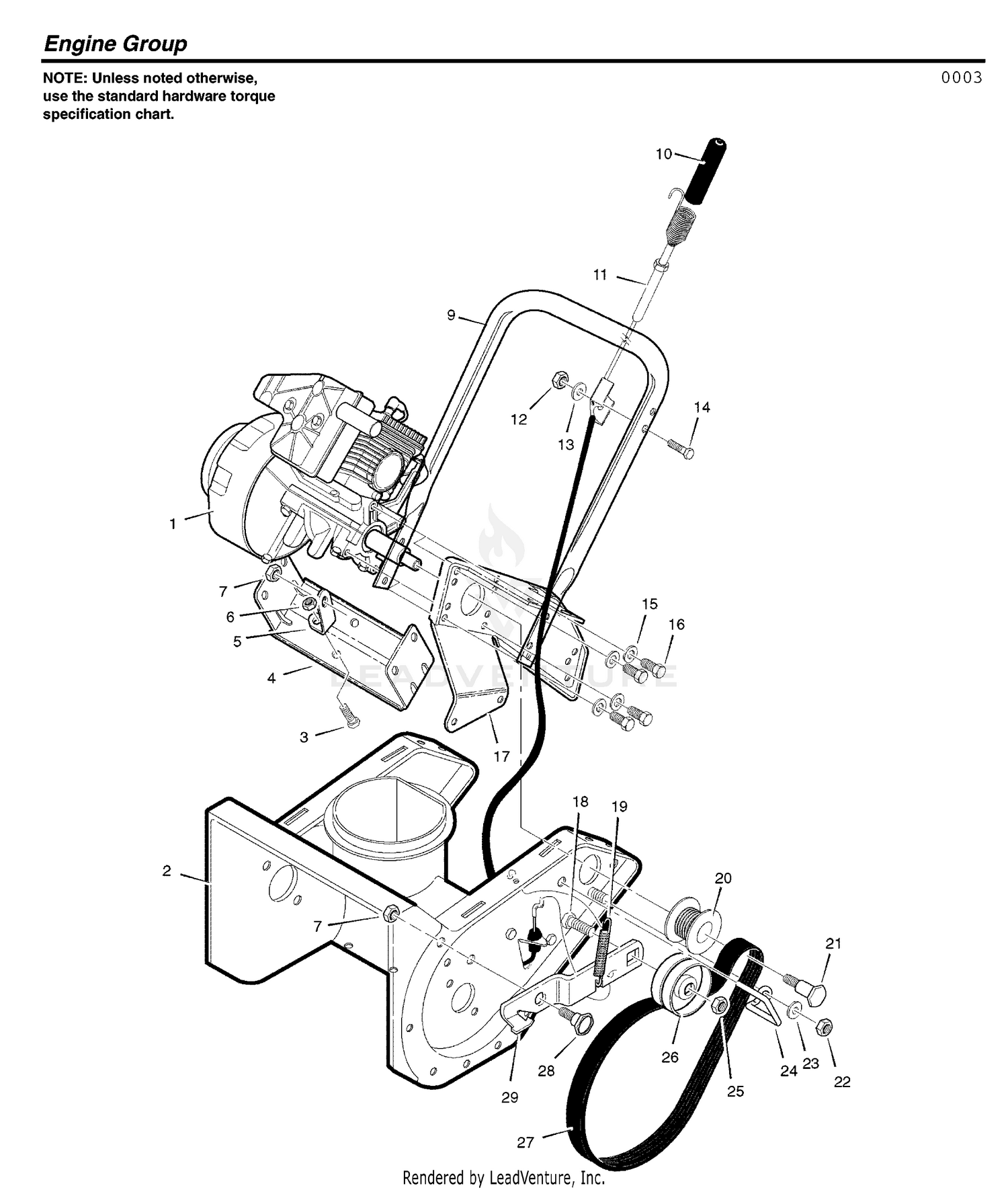

| Ref | Part Number | Description |
|---|
| 2 |
601400058 |
AUGER HOUSING,21 Price: $329.99 |
| 3 |
601400046 |
SCREW .31-18 X 0.50 HHC Price: $8.99 |
| 4 |
601400021 |
SUPPORT, FRAME Price: $37.99 |
| 5 |
601400020 |
SUPPORT, ENGINE Price: $11.99 |
| 7 |
601400085 |
NUT .31-18 HEX CTRLK Price: $5.99 |
| 9 |
601400035 |
HNDL, LWR 0.88D LOOP Price: $129.99 |
| 10 |
601001759 |
COVER, CABLE SPRING Price: $2.92 |
| 11 |
601400051 |
CABLE, DRIVE CTRL JD H Price: $69.99 |
| 12 |
601400086 |
NUT .25-20 HEX CTRLOCK Price: $6.99 |
| 13 |
601400080 |
WASHER, FLAT .281X.63 Price: $4.99 |
| 14 |
601001758 |
SCREW, 1/4-20 X 1.50 HHC Price: $2.90 |
| 15 |
532198552 |
WASHER, LOCK 5/16 This part replaces 601400079. Price: $6.99 |
| 16 |
601400043 |
SCREW 5/16-18X7.5 Price: $3.99 |
| 17 |
601400023 |
PLATE, REAR Price: $40.99 |
| 18 |
601000551 |
BOLT, 3/8-16X1.50 CARR Price: $3.99 |
| 19 |
601002060 |
SPRING, IDLER Price: $37.99 |
| 20 |
601400005 |
PULLEY, ENGINE 10RIB Price: $29.99 |
| 21 |
601002080 |
BOLT, SHOULDER Price: $3.99 |
| 22 |
601400085 |
NUT .31-18 HEX CTRLK Price: $5.99 |
| 23 |
601400001 |
WASHER FLT Price: $4.99 |
| 24 |
601400059 |
GUIDE, BELT 21 STEEL Price: $5.99 |
| 25 |
601400075 |
NUT .38-16 HEX JAM CTR Price: $4.99 |
| 26 |
601001333 |
IDLER PULLEY Price: $32.99 |
| 27 |
601002081 |
BELT, 10 RIB POLY This part replaces 601400062. Price: $49.99 |
| 28 |
601001329 |
BOLT Price: $3.99 |
| 29 |
601400057 |
BRKT, IDLER ARM 10RIB Price: $27.99 |
