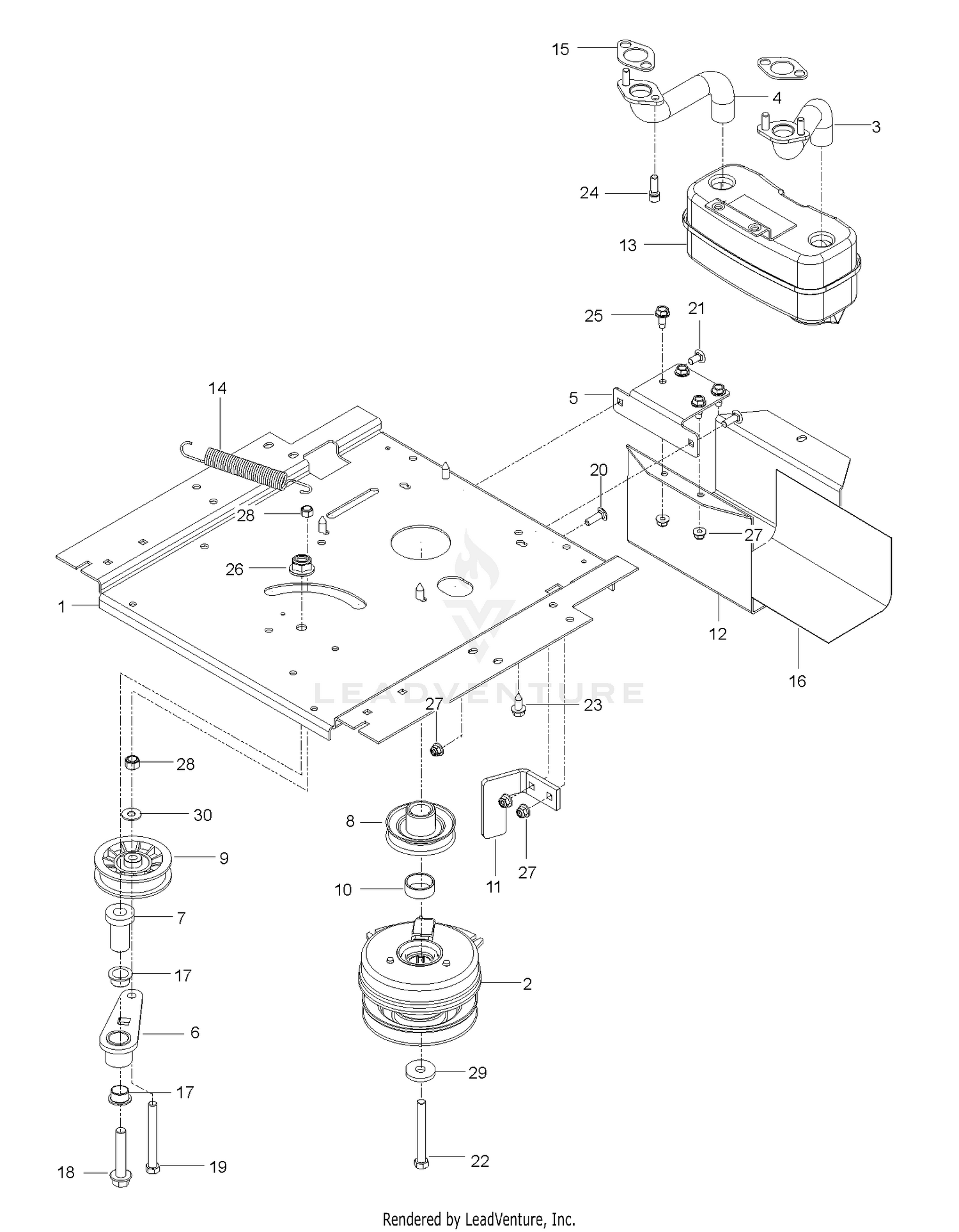

| Ref | Part Number | Description |
|---|
| 000000000 |
| |
Engine, Briggs & Stratton 44N6770040G1 22 HP. For engine replacement parts, see a B&S dealer. Price: Call Us 000000000 |
| 1 |
588017102 |
PLATE.ENGINE.PNT.23"FRAME.EDIP Price: $49.99 |
| 2 |
585521101 |
CLUTCH.105.FT-LBS Price: $199.99 |
| 3 |
532159955 |
RP.EXHAUST.TUBE.LH.BS/TWIN This part replaces 581881101. Price: $27.99 |
| 4 |
532160589 |
RP.EXHAUST.TUBE.RH.BS/TWIN This part replaces 581881001. Price: $39.99 |
| 5 |
581886702 |
BRACKET MUFFLER MS431BLK Price: $22.99 |
| 6 |
532448145 |
ARM IDLER Price: $3.99 |
| 7 |
582538901 |
SPINDLE.IDLER Price: $1.99 |
| 8 |
587537401 |
PULLEY.ENGINE Price: $14.99 |
| 9 |
539110311 |
PULLEY, IDLER Price: $9.99 |
| 10 |
539112252 |
T & B SPACER Price: $1.99 |
| 11 |
510246002 |
STOP, CLUTCH, BLACK Price: $17.99 |
| 12 |
587451202 |
GUARD.MUFFLER.WO.TOW.HITCHX431 Price: $14.99 |
| 13 |
539131604 |
MUFFLER ASM TWIN Price: $29.99 |
| 14 |
532196105 |
SPRING, DECK DRIVE Price: $4.99 |
| 15 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 16 |
539132859 |
HEAT SHIELD Price: $24.99 |
| 17 |
501603701 |
BEARING.FLANGED.PLASTIC.3/4ID Price: $1.99 |
| 18 |
582539501 |
BOLT.FLANGE.1/2-13 X 2.75.GRD5 Price: $1.99 |
| 19 |
874520656 |
HCS 3/8-16X3-1/2 TAPBLT GR5 ZD Price: $1.99 |
| 20 |
872140508 |
Bolt, Carriage 5/16-18 UNC x 1 (AYP part number) Price: $2.99 |
| 21 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 22 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR Price: $1.99 |
| 23 |
817120616 |
SCREW 3/8-16X1 Price: $2.99 |
| 24 |
532183906 |
SCREW.SOCKET.HEAD.5/16-18 Price: $3.99 |
| 25 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 26 |
521991101 |
NUT, 1/2-13 HEX FLG NYLOC ZD Price: $1.99 |
| 28 |
539976979 |
NUT 3/8-16 NYLOC Price: $1.99 |
| 29 |
532126197 |
Washer 1 - 1/2 OD x 15/32 ID x .250 (AYP part number) Price: $4.99 |
| 30 |
539990692 |
WASHER 5/16 FLAT Price: $1.99 |
| 525349801 |
REWIND |
GUARD (794277) Price: $74.99 525349801 |
