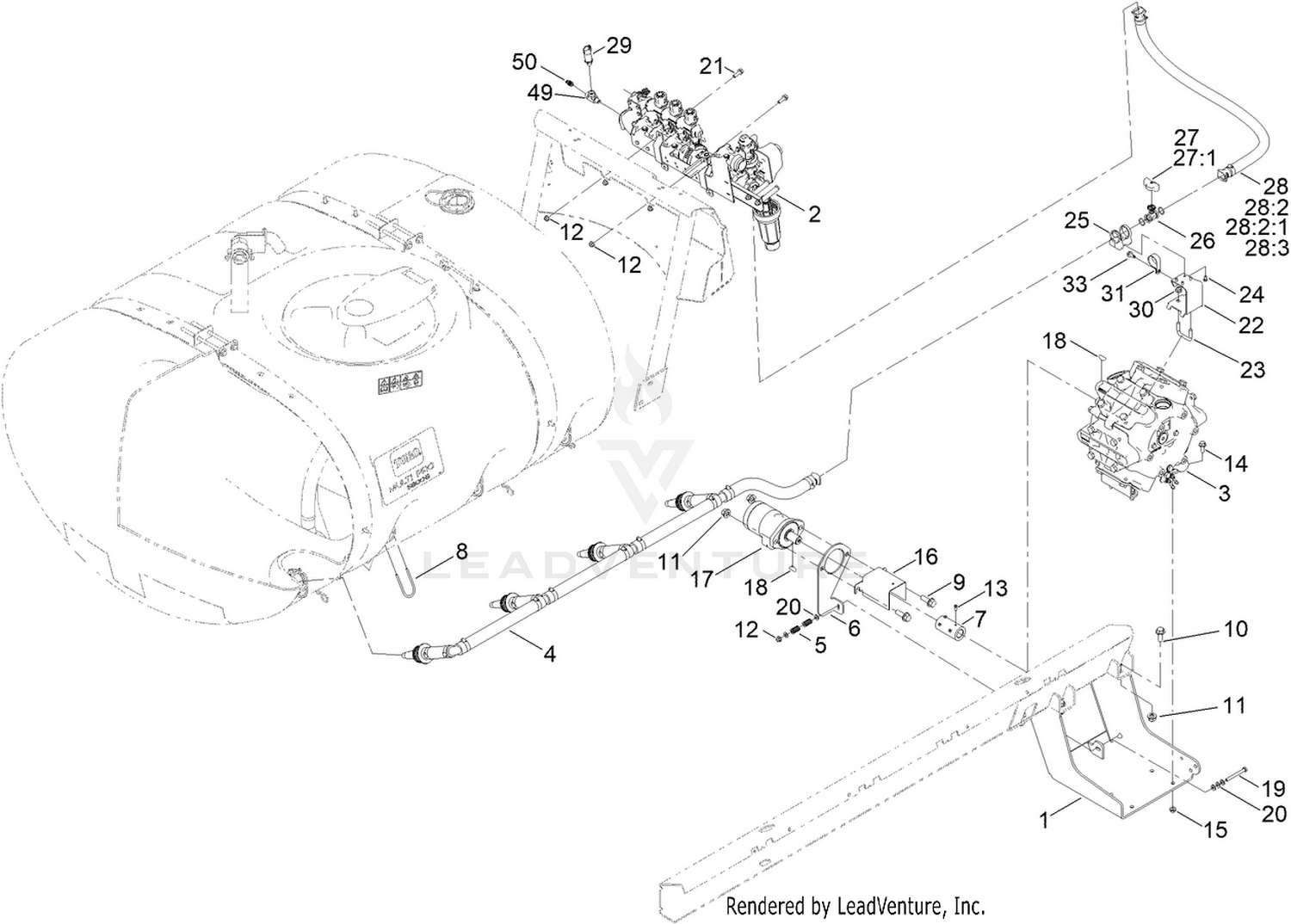

Spray Pump and Valve Assembly

Ref	Part Number	Description
1	117-0655-03	BRACKET-PUMP Price: $298.43
3	145-3382	PUMP ASM Price: $5,506.64
4	139-3093	AGITATION HOSE ASM Price: $414.66
5	110-5331	SPRING-COMPRESSION Price: $22.18
6	117-8040-03	PLATE-MOUNT, MOTOR Price: $29.58
7	117-8045	COUPLER Price: $61.81
8	100-8635	FORK Price: $4.91
9	100-6116	SCREW-HHF Price: $6.41
10	110-5057	CAPSCREW-HHF Price: $2.71
11	139-1689	NUT-HF Price: $1.12
12	104-8300	NUT-HF, NI Price: $0.39
13	3241-7	SCREW-SQH Price: $3.39
14	3234-11	SCREW-HHF Price: $1.23
15	3290-357	NUT-HHF, WHIZ Price: $0.61
16	120-0628-03	GUARD-SHAFT, PUMP Price: $22.59
17	117-0706	HYD MOTOR ASM Price: $793.55
18	106-1990	KEY-WOODRUFF Price: $3.81
19	322-14	SCREW-HH Price: $1.01
20	3256-23	WASHER-PLAIN Price: $0.28
21	3234-29	SCREW-HHF Price: $1.84
22	136-0376-03	BRACKET-VALVE, AGITATION Price: $33.11
23	107-3073	U-BOLT Price: $14.49
24	33113-012	SCREW-HH Price: $0.71
25	132-4302	MOUNT-VALVE Price: $38.41
26	131-0249	ON/OFF 2-WAY VALVE KIT Price: $220.85
27	131-0264	AGITATION THROTTLING HANDLE KIT Price: $28.04
28	132-4310	AGIATION SUPPLY HOSE ASM Price: $133.74
29	130-8202	TRANSDUCER-PRESSURE Price: $382.14
30	104-8301	NUT-HF, NI Price: $1.09
31	2412-74	R-CLAMP Price: $2.37
33	32104-32	SCREW-HWH Price: $1.99
49	2815-16	FITTING-HYD, TEE Price: $39.81
