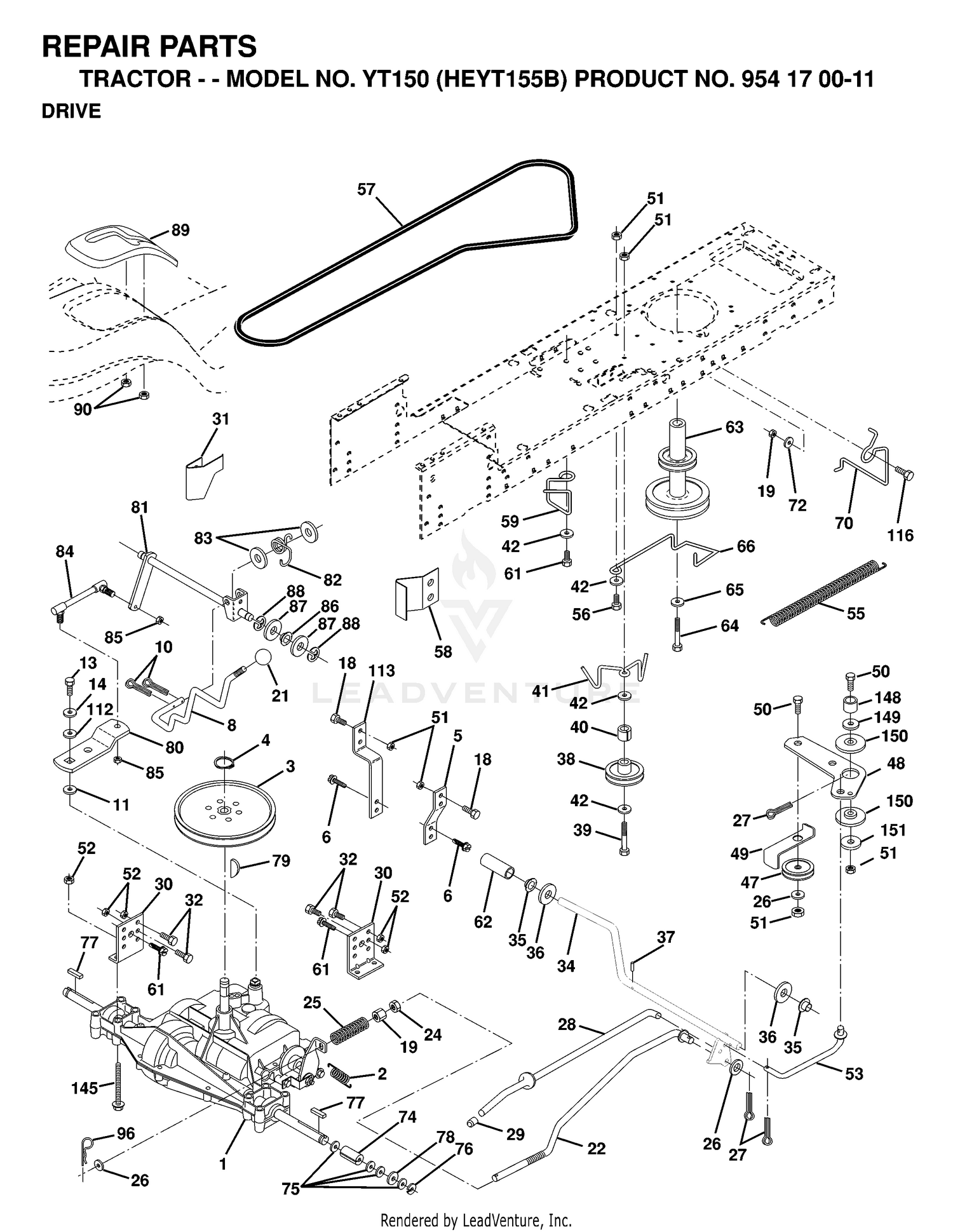

| Ref | Part Number | Description |
|---|
| 2 |
532146682 |
SPRING,BRAKE RETURN Price: $5.99 |
| 3 |
532123666 |
PULLEY TRANS Price: $39.99 |
| 4 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 5 |
532121520 |
STRAP TORQUE Price: $6.99 |
| 6 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 8 |
532154792 |
ROD SHIFT FENDER Price: $12.99 |
| 11 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 13 |
596136601 |
Bolts This part replaces 874550412. Price: $1.99 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 21 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 22 |
532130804 |
ROD BRAKE Price: $22.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 31 |
532127275 |
KEEPER BELT LH Price: $3.99 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 34 |
532155071 |
SHAFT, FOOT PEDAL Price: $19.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 41 |
532165838 |
KEEPER.BELT.IDLER.FLAT This part replaces 532154777. Price: $4.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 57 |
531006043 |
BELT Price: $71.04 |
| 58 |
532127274 |
KEEPER Price: $3.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $17.99 |
| 61 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 62 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 63 |
532140186 |
PULLEY.ENG.CL.MECH.SLVR.LT/YT Price: $99.99 |
| 64 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 871170764. Price: $2.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 70 |
531165301 |
SERVICE KIT KEEPER BELT This part replaces 532134683. Price: $6.99 |
| 72 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 79 |
532125096 |
KEY STD (1373) DANA Price: $7.99 |
| 80 |
532145090 |
ARM SHIFT Price: $6.99 |
| 81 |
532161082 |
SHAFT Price: $31.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532145643 |
ROD TIE 20" Price: $23.85 |
| 85 |
532150360 |
NUT LOCK CENTER 1/4 -28 FNTHD Price: $2.99 |
| 86 |
532157480 |
BUSHING Price: $3.99 |
| 87 |
819212016 |
WASHER D Price: $4.99 |
| 88 |
812000008 |
KLIP RING Price: $2.99 |
| 89 |
532166561 |
BRACKET Price: $34.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 112 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 113 |
531150301 |
SERVICE KIT STRAP STRAP TORQUE This part replaces 532127285. Price: $6.99 |
| 116 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 148 |
532159103 |
GUIDE Price: $3.99 |
| 149 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 150 |
532150935 |
BUSHING NYLON COLLERED Price: $3.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
