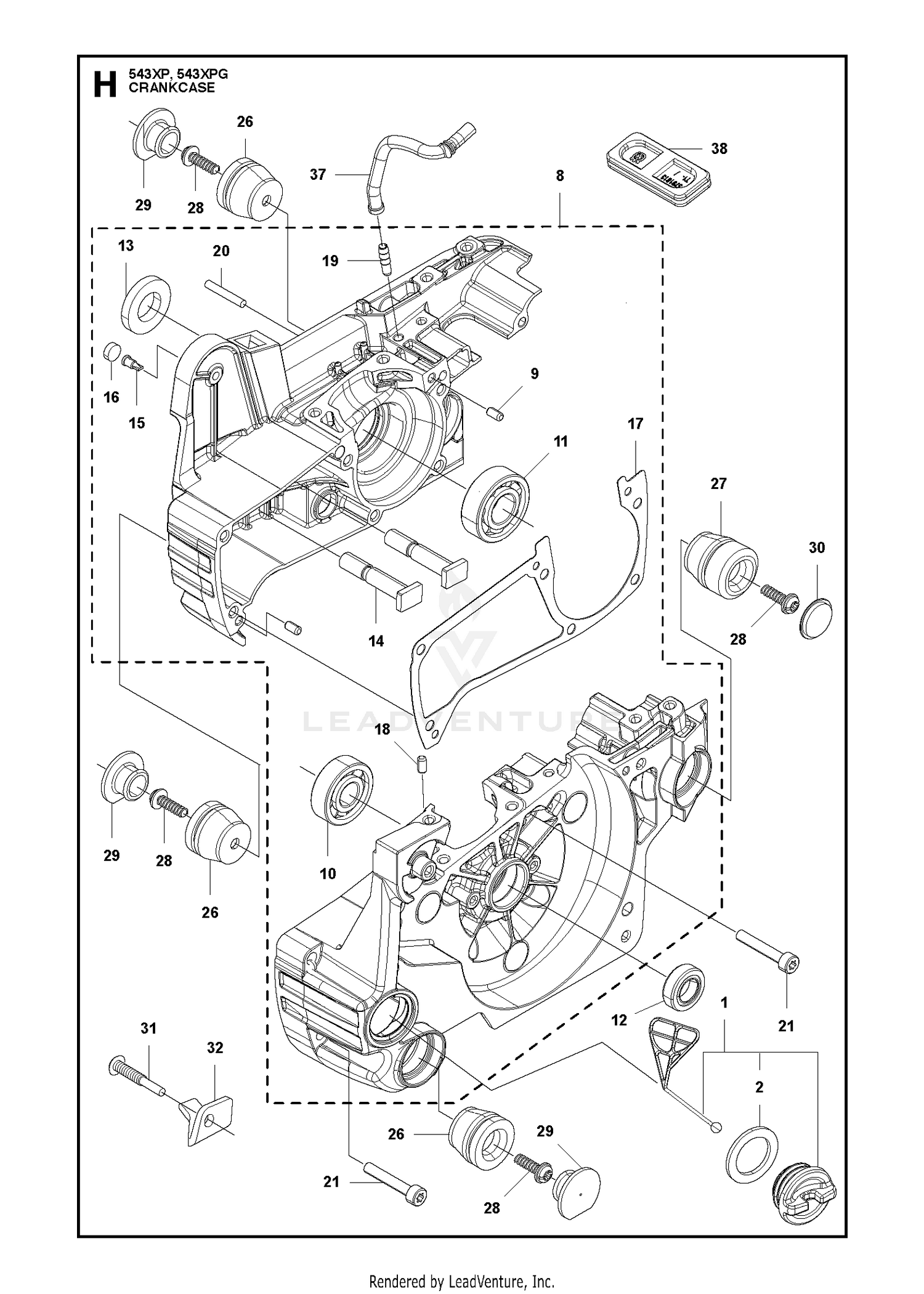

CRANKCASE
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511064301 | CAP ASSY 848C1H8610 Price: $6.99 |
| 2 | 579519001 | PACKING This part replaces 505046101. Price: $3.99 |
| 8 | 577432701 | CRANKSHAFT ASSY This part replaces 582649602. Price: $219.99 |
| 9 | 577167401 | PIN Price: $2.99 |
| 10 | 596449001 | Bearings This part replaces 513746301. Price: $6.99 |
| 11 | 502849101 | BEARING Price: $11.99 |
| 12 | 504121501 | SEAL Price: $7.99 |
| 13 | 581284901 | SEAL Price: $9.99 |
| 14 | 513746201 | BOLT Price: $3.99 |
| 15 | 516961901 | AIR CONTROL BREATHER Price: $3.99 |
| 16 | 513746401 | SEAL Z285021250 Price: $3.99 |
| 17 | 576976201 | GASKET, CRANKCASE Price: $3.99 |
| 18 | 578281201 | PIN XC23 Price: $4.99 |
| 19 | 578196701 | FITTING PULSE XC23 Price: $4.99 |
| 20 | 521522401 | PIN 8488B42400 Price: $3.99 |
| 26 | 513560401 | DAMPER Price: $6.99 |
| 27 | 512458301 | DAMPER T210035210 Price: $6.99 |
| 29 | 513826101 | CAP Price: $3.99 |
| 30 | 513945101 | CAP Price: $2.99 |
| 31 | 577823701 | SCREW T27 XC23 Price: $2.99 |
| 37 | 577029501 | PIPE Price: $7.99 |
| 38 | 579181301 | GROMMET Price: $6.99 |
