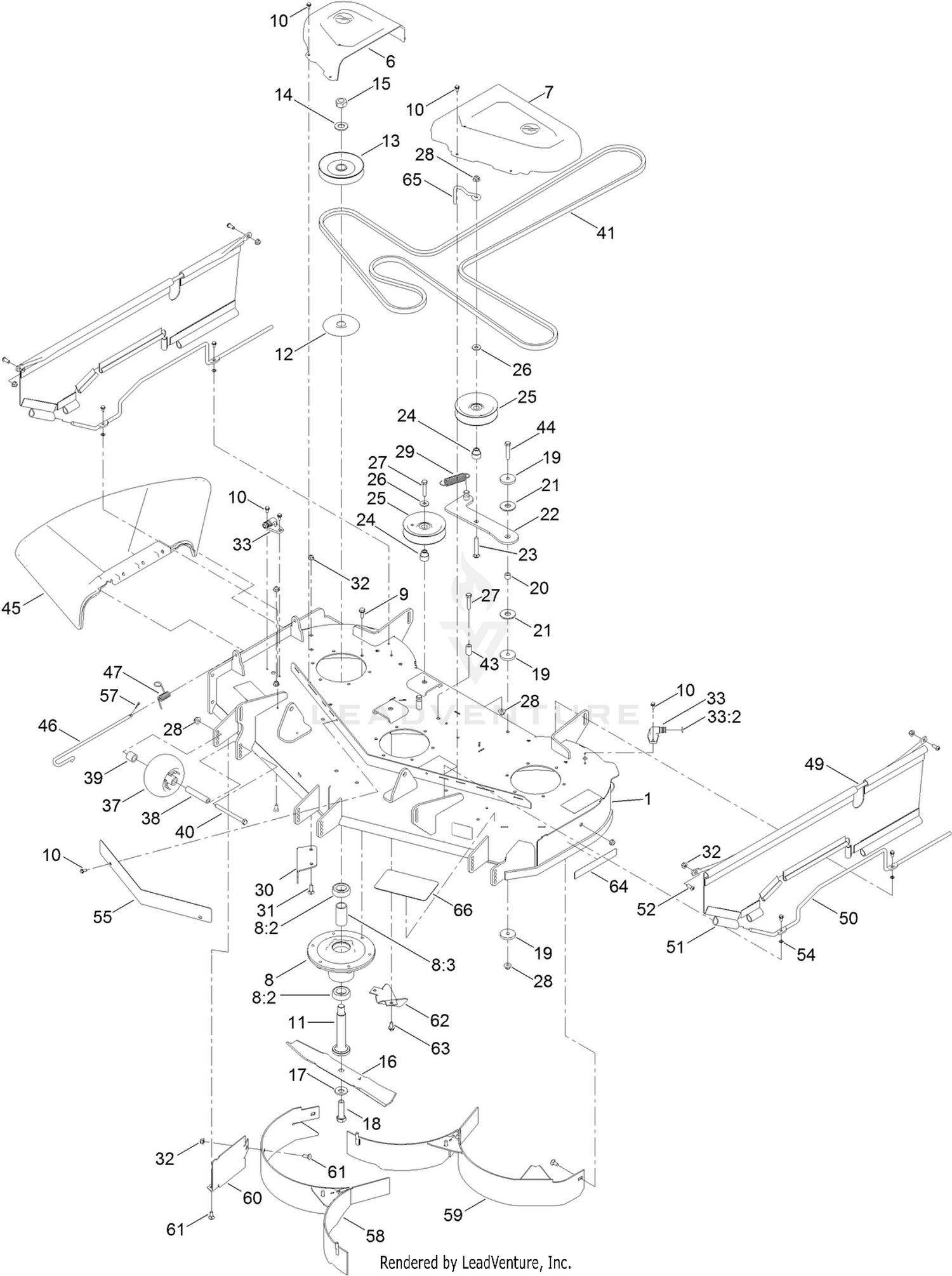

| Ref | Part Number | Description |
|---|
| 1 |
133-7066 |
DECK ASM Price: $851.06 |
| 6 |
133-9283 |
COVER-BELT, RH Price: $12.93 |
| 7 |
133-9282 |
COVER-BELT, LH Price: $14.23 |
| 8 |
120-5477 |
SPINDLE ASM Price: $76.60 |
| 9 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 10 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 11 |
115-2642 |
SHAFT-SPINDLE Price: $34.39 |
| 12 |
117-7210 |
SHIELD-BEARING Price: $6.59 |
| 13 |
117-7326 |
PULLEY Price: $40.03 |
| 14 |
7-4150 |
WASHER Price: $1.19 |
| 15 |
3219-7 |
NUT-HEX Price: $1.53 |
| 16 |
117-7278-03 |
BLADE-MULCH, 16.50 INCH Price: $21.88 |
| 17 |
125-1736 |
WASHER-BELLEVILLE Price: $3.89 |
| 18 |
51-4060 |
SCREW-BLADE Price: $7.39 |
| 19 |
110-9981 |
WASHER-PLAIN Price: $13.99 |
| 20 |
1-413088 |
BUSHING-LEVER, LIFT Price: $6.74 |
| 21 |
114-0463 |
WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 22 |
115-5054 |
ARM-IDLER Price: $51.76 |
| 23 |
3231-31 |
SCREW-CARR Price: $1.29 |
| 24 |
115-2577 |
BUSHING-IDLER Price: $4.12 |
| 25 |
132-4718 |
PULLEY-IDLER, FLAT Price: $22.69 |
| 26 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 27 |
323-9 |
SCREW-HH Price: $1.29 |
| 28 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 29 |
108-4056 |
SPRING-EXTENSION Price: $5.38 |
| 30 |
117-7418-03 |
BAFFLE-CUTOFF Price: $14.30 |
| 31 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 32 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 33 |
133-9289 |
FITTING-WASHOUT Price: $3.86 |
| 37 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 38 |
98-7912 |
TUBE-SPANNER Price: $12.23 |
| 39 |
104-0892 |
SPACER-AXLE, REAR Price: $3.30 |
| 40 |
323-23 |
SCREW-HH Price: $2.07 |
| 41 |
133-7075 |
V-BELT Price: $117.10 |
| 43 |
1-603401 |
SPACER Price: $4.58 |
| 44 |
323-10 |
SCREW-HH Price: $0.89 |
| 45 |
133-1212 |
DEFLECTOR-DISCHARGE Price: $51.81 |
| 46 |
109-8854 |
PIN-CHUTE Price: $10.21 |
| 47 |
121-2983 |
SPRING-TORSION Price: $2.71 |
| 49 |
133-9261 |
ROD-SUPPORT, UPPER Price: $22.86 |
| 50 |
136-4221 |
ROD-SUPPORT, LOWER Price: $22.86 |
| 51 |
136-4234 |
SIDE GUARD ASM Price: $19.02 |
| 52 |
3274-55 |
SCREW-HSBH Price: $3.19 |
| 54 |
1-803037 |
NUT-RETAINING Price: $1.39 |
| 55 |
131-3900-03 |
SHIELD-FRONT Price: $13.96 |
| 57 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 58 |
136-4205-03 |
BAFFLE-RECYCLER Price: $101.59 |
| 59 |
136-7479-03 |
BAFFLE-RECYCLER Price: $114.28 |
| 60 |
119-3352-03 |
GUARD-BAFFLE Price: $18.05 |
| 61 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 62 |
119-3389-03 |
KICKER-FLANGED Price: $18.05 |
| 63 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 64 |
119-2368 |
DECAL-RECYCLER Price: $3.60 |
| 65 |
136-5615 |
GUIDE-BELT, IDLER Price: $4.18 |
