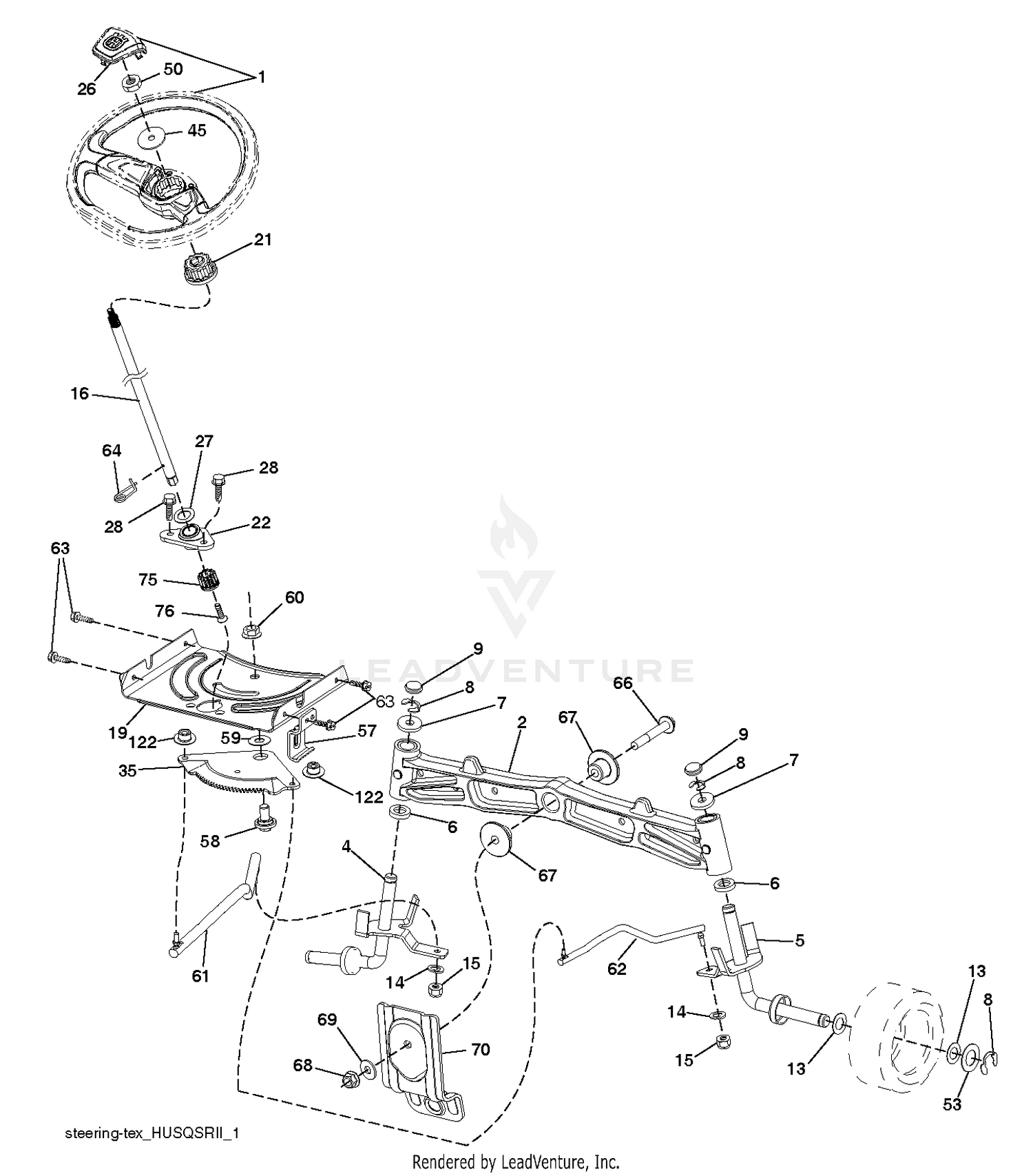

| Ref | Part Number | Description |
|---|
| 1 |
120-8086 |
FRONT FRAME ASM Price: $5,122.88 |
| 1 |
597866101 |
Service Kit Price: $64.99 |
| 2 |
120-8007-03 |
FRAME-REAR Price: $3,094.30 |
| 3 |
108-4018 |
ROPS ASM Price: $1,001.27 |
| 4 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 5 |
104-5584-0P |
PLATE-REINFORCEMENT,ROPS This part replaces 104-5584-03. Price: $36.27 |
| 6 |
325-20 |
SCREW-HH Price: $6.29 |
| 6 |
532006266 |
WASHER THRUST Price: $4.99 |
| 7 |
32128-49 |
NUT-HHF Price: $1.04 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
104-5516-0P |
SUPPORT-TUBE This part replaces 104-5516-01. Price: $9.23 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
32128-20 |
NUT-HF Price: $0.99 |
| 11 |
119-0006 |
ACCESS PLATE ASM Price: $170.08 |
| 12 |
75-1410-01 |
PLATE-ACCESS, FLOOR Price: $142.43 |
| 13 |
125-4614 |
TREAD-FOOT, CENTER Price: $65.72 |
| 14 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 14 |
596238701 |
Washers Price: $3.99 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 587016002. Price: $34.99 |
| 16 |
72-3560 |
DECAL Price: $12.52 |
| 17 |
106-6754 |
DECAL-DANGER Price: $9.57 |
| 18 |
105-9194 |
PLUG Price: $9.48 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 586840201. Price: $7.99 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029802. Price: $14.99 |
| 26 |
594949101 |
Steering Price: $5.99 |
| 27 |
596933401 |
Washers Price: $2.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $2.99 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532197246 |
BRKT.UPSTOP.GT/LT.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 585338801. Price: $14.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683701. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
