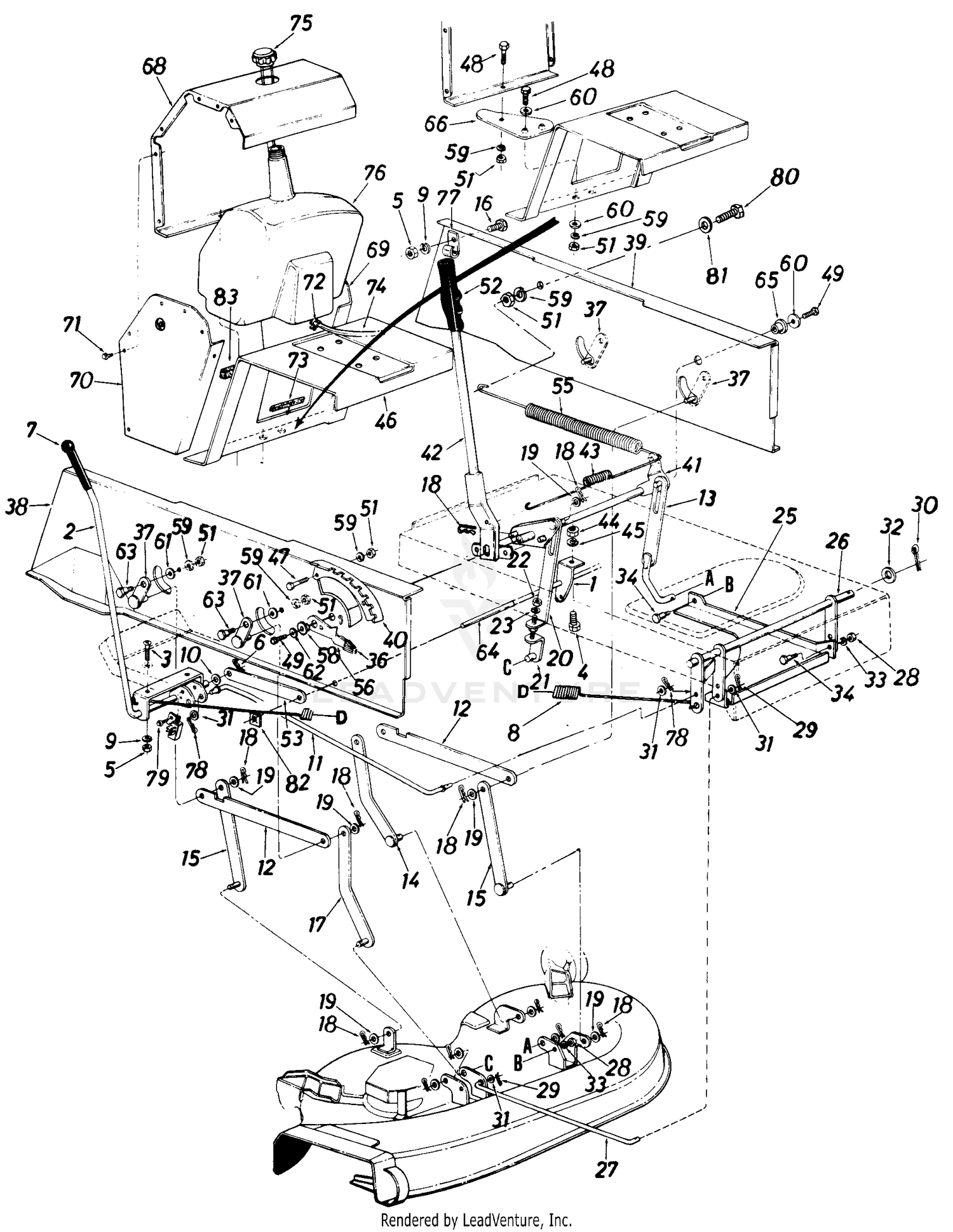

| Ref | Part Number | Description |
|---|
| 1 |
16181 |
Spring Hanger Bracket Price: Call Us |
| 2 |
16212 |
Deck Engagement Lever Ass'y. Price: Call Us |
| 3 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 4 |
710-0514 |
Hex Bolt 3/8-16 x 1" Lg. This part replaces 710-0253. Price: $3.78 |
| 5 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 6 |
714-0111 |
Cotter Pin 3/32" Dia. x 1.00" Lg. Price: $4.20 |
| 7 |
720-0143 |
GRIP Not Available Price: |
| 8 |
732-0531 |
SPRING Not Available Price: |
| 9 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 10 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 11 |
747-0491 |
Drive Deck Control Rod Price: Call Us |
| 12 |
09735 |
CONNECTING ROD Not Available Price: |
| 13 |
16178 |
Deck Lift Link Ass'y. Price: Call Us |
| 14 |
16209 |
Deck Hanger Link Ass'y.-Rear L.H. Price: Call Us |
| 15 |
16216 |
LINK ASSEMBLY- Not Available Price: |
| 16 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 18 |
714-0101 |
Inter. Cotter Pin 1/2" Dia. Price: $4.13 |
| 19 |
736-0160 |
Fl-Wash. .531 I.D. x .93" O.D. Price: $3.90 |
| 20 |
14802A-0637 |
DECK LIFT LINK (POWDER BLACK) Not Available This part replaces 16063. Price: |
| 21 |
16342 |
LINK ASSEMBLY-LOWER Not Available Price: |
| 22 |
712-0241 |
Hex Jam Nut 3/8-24 Thd. Price: $3.86 |
| 23 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 25 |
16214 |
BRACE-DIAG Not Available Price: |
| 26 |
16234 |
STABILIZER SHAFT ASS'Y Not Available Price: |
| 27 |
711-0777 |
Stabilizer Rod Price: Call Us |
| 28 |
712-0798 |
Hex Nut 3/8-16 Thd.* Price: $3.86 |
| 29 |
714-0111 |
Cotter Pin 3/32" Dia. x 1.0" Lg. Price: $4.20 |
| 30 |
714-0470 |
Cotter Pin 1/8" Dia. x 1.25" Lg.* Price: $3.90 |
| 31 |
936-0117 |
Fl-Wash. This part replaces 736-0117. Price: $6.20 |
| 32 |
736-0160 |
Fl-Wash. .531" I.D. x .93" O.D. This part replaces 736-0150. Price: $3.90 |
| 33 |
736-0169 |
L-Wash. 3/8" I.D.* Price: $3.33 |
| 34 |
938-0258 |
SHOULDER BOLT Not Available This part replaces 738-0258. Price: |
| 36 |
08540 |
KNOB-HGT ADJ-BLACK Not Available Price: |
| 37 |
09721 |
LINK ASSEMBLY- Not Available Price: |
| 38 |
14602G-0637 |
FRAME-SIDE (RH) Not Available This part replaces 14602. Price: |
| 39 |
14603 |
L.H. SIDE FRAME Not Available Price: |
| 41 |
16463 |
LIFT SHAFT ASS'Y. Not Available Price: |
| 42 |
16465 |
KIT-DECK LIFT Not Available Price: |
| 43 |
932-0498 |
EXTENSION SPRING Not Available This part replaces 732-0498. Price: |
| 44 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 45 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 46 |
16223 |
Hitch Plate Price: Call Us |
| 47 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg.* Price: $3.76 |
| 48 |
710-0376 |
Hex Bolt 5/16-18 x 1.00" Lg. (Grade 5) Price: $3.66 |
| 49 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 51 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 52 |
720-0157 |
LIFT HANDLE GRIP Not Available Price: |
| 53 |
16369 |
Link 1.0 x 7.5" x .19 Price: Call Us |
| 55 |
932-0307A |
EXTENSION SPRING Not Available This part replaces 732-0307. Price: |
| 56 |
732-0412 |
HEIGHT ADJUSTMENT LEVER Not Available Price: |
| 58 |
748-0176 |
Flange Brg. .630" I.D. Price: $8.54 |
| 59 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 60 |
736-0231 |
Fl-Wash. .344" I.D. x 1.125" O.D. x .125 Price: $4.02 |
| 61 |
736-0264 |
Fl-Wash. .344" I.D. x .62" O.D. x .063 Price: $5.99 |
| 62 |
736-0231 |
Fl-Wash. .344" I.D. x 1.125" O.D. Price: $4.02 |
| 63 |
738-0140 |
Shld. Bolt .437" Dia. x .180 Price: $4.93 |
| 64 |
738-0526 |
ROD-RUNNING BOARD Not Available Price: |
| 65 |
741-0487C |
Flange Bearing .632 ID This part replaces 741-0313. Price: $6.87 |
| 66 |
16315 |
HITCH BAR Not Available Price: |
| 68 |
16238 |
GAS TANK HOUSING Not Available Price: |
| 69 |
16239 |
SIDE PANEL L.H. GAS TANK Not Available Price: |
| 70 |
16240 |
SIDE PANEL R.H. GAS TANK Not Available Price: |
| 71 |
710-0351 |
Truss Mach. B-Tapp Scr. #10 x .50" Lg. Price: $3.90 |
| 72 |
726-0207 |
HOSE CLAMP Not Available Price: |
| 73 |
731-0511 |
Trim Strip-5" Lg. Price: $3.29 |
| 74 |
751-22813-24 |
FUEL HOSE 1/4-24" This part replaces 751-0173. Price: $27.48 |
| 75 |
951-0226A |
Gas Tank Cap This part replaces 751-0226. Price: $50.20 |
| 76 |
751-0403 |
GAS TANK Not Available Price: |
| 77 |
726-0175 |
CLAMP Not Available Price: |
| 78 |
714-0507 |
Cotter Pin 3/32" Dia. x .75" Lg. Price: $3.93 |
| 79 |
710-0599 |
Hex Wash. Hd. Tap Scr. 1/4 x .50" Lg. Price: $3.86 |
| 80 |
710-0959 |
SCREW 5/16-18 x 1.50 GR5 Not Available Price: |
| 81 |
736-0160 |
Fl-Wash. .531" I.D. x .93" O.D. This part replaces 736-0150. Price: $3.90 |
| 82 |
712-0247 |
Speed Nut for .500" Dia. Stud Price: Call Us |
