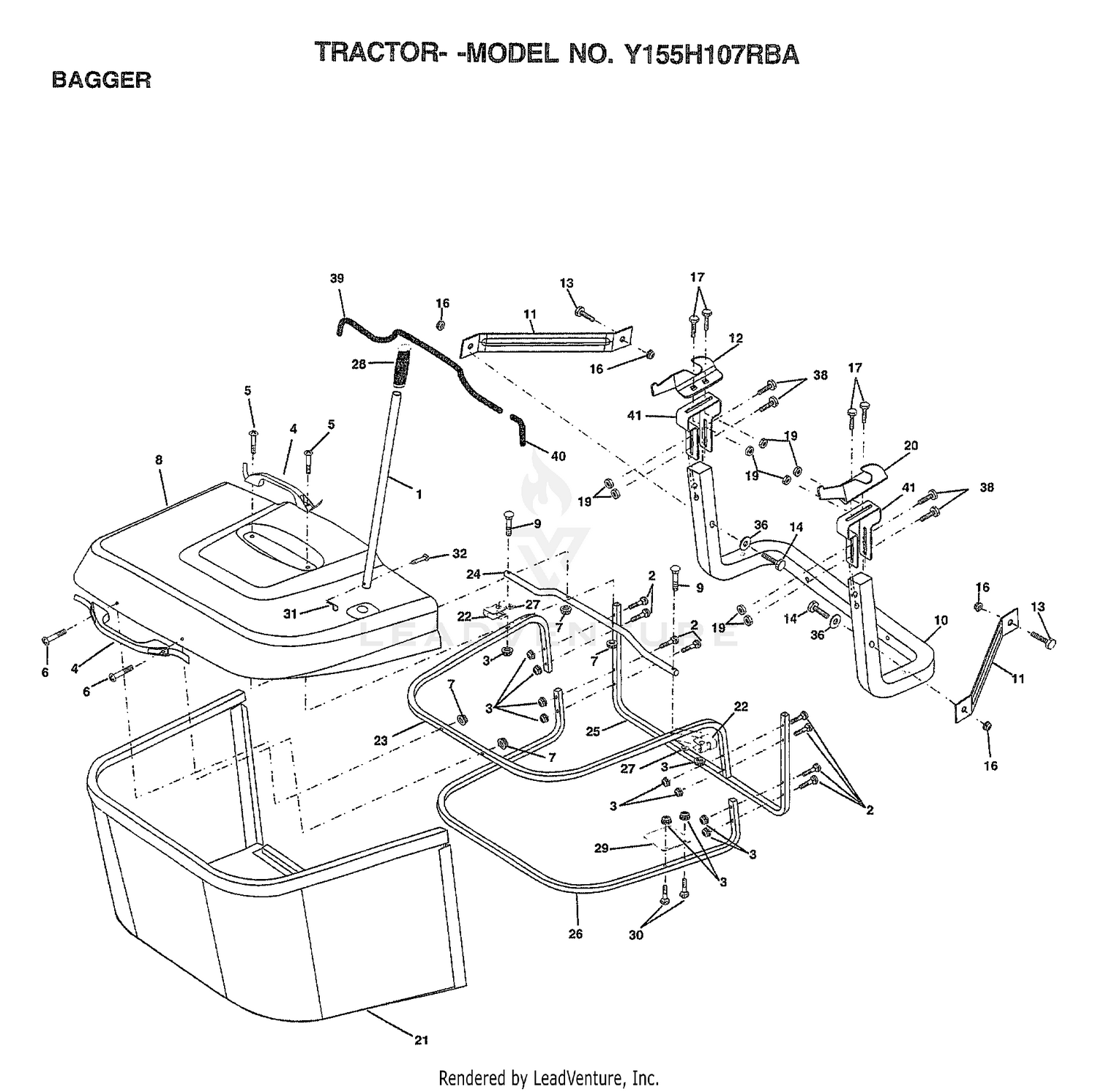

| Ref | Part Number | Description |
|---|
| 1 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 1 |
165249 |
TUBE.HDLE.BAG.CRD Price: Call Us |
| 2 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 2 |
72140416 |
BOLT.CARRIAGE.1/4-20X2.0 Price: Call Us |
| 3 |
106-4308-0P |
LH OUT CHAMBER ASM This part replaces 106-4308-01. Price: $384.23 |
| 3 |
123976X |
SUB= 73900400 Price: Call Us |
| 4 |
106-4304-0P |
LH IN CHAMBER ASM This part replaces 106-4304-01. Price: $363.62 |
| 4 |
169916 |
HANDLE BAGGER Price: Call Us |
| 5 |
106-4291-0P |
LH CTR CHAMBER ASM This part replaces 106-4291-01. Price: $339.00 |
| 6 |
106-4294-0P |
CENTER CHAMBER ASM This part replaces 106-4294-01. Price: $240.54 |
| 6 |
74981032 |
SCREW Price: Call Us |
| 7 |
106-4286-0P |
RH CTR CHAMBER ASM This part replaces 106-4286-01. Price: $291.20 |
| 7 |
73401000 |
NUT.WIZ.LOCK Price: Call Us |
| 8 |
106-4298-0P |
RH IN CHAMBER ASM This part replaces 106-4298-01. Price: $363.62 |
| 8 |
165715X505 |
COVER.BAG.CRD Price: Call Us |
| 9 |
106-4301-0P |
RH OUT CHAMBER ASM This part replaces 106-4301-01. Price: $384.23 |
| 9 |
72140418 |
BOLT CARRIAGE Price: Call Us |
| 10 |
169688 |
TUBE SUPPORT BAGGER CRD Price: Call Us |
| 10 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 11 |
165719 |
BRKT.SUPT.UPPER.BAG.CRD Price: Call Us |
| 11 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 12 |
106-4340-01 |
LATCH-WING Price: $43.82 |
| 12 |
169685 |
BRACKET HORIZ ADJ BGGR LH CRD Price: Call Us |
| 13 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 13 |
72110606 |
BOLT Price: Call Us |
| 14 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 14 |
74520640 |
BOLT.HEX.3/8-16X2-1/2 Price: Call Us |
| 15 |
3290-483 |
WASHER-CONICAL Price: $7.61 |
| 16 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 16 |
73900600 |
SUB= 83923 Price: Call Us |
| 17 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 17 |
72140506 |
BOLT Price: Call Us |
| 18 |
325-8 |
SCREW-HH Price: $3.52 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
169684 |
BRACKET HORIZ ADJ BGGR RH CRD Price: Call Us |
| 21 |
165780 |
BAG.ASM.CRD Price: Call Us |
| 22 |
165781 |
BRKT.SIDE.BAG.CRD Price: Call Us |
| 23 |
165782 |
TUBE.UPPER.BAG.CRD Price: Call Us |
| 24 |
165783 |
TUBE.PIVOT.BAG.CRD Price: Call Us |
| 25 |
165784 |
TUBE.FT.BAG.CRD Price: Call Us |
| 26 |
165785 |
TUBE.LOWER.BAG.CRD. Price: Call Us |
| 27 |
169692 |
BUSHING SNAP BAGGER CRD Price: Call Us |
| 28 |
165787 |
GRIP.HANDLE.BLACK Price: Call Us |
| 29 |
165839 |
PLATE.STOP.BAG.HDLE.CRD Price: Call Us |
| 30 |
72140410 |
BOLT.CARRIAGE Price: Call Us |
| 31 |
4497H |
RETAINER M Price: Call Us |
| 32 |
126875X |
RIVET.DRILL.1.75 Price: Call Us |
| 36 |
19132016 |
SUB= 19132012 Price: Call Us |
| 38 |
72010520 |
BOLT.5/16-18X2.5 Price: Call Us |
| 39 |
169999 |
SEAL Price: Call Us |
| 40 |
170000 |
SEAL Price: Call Us |
