| Ref | Part Number | Description |
|---|
| 1 |
3-9171 |
Main Frame W.A. (Includes Ref. 2) Price: Call Us |
| 2 |
256-90 |
BUSHING-FLANGE Price: $2.92 |
| 3 |
3-7036 |
U-Bolt Price: Call Us |
| 4 |
3217-6 |
NUT-HEX Price: $1.19 |
| 5 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 6 |
3-9368 |
Brake Cable Assy. Price: Call Us |
| 7 |
3-9372 |
Compression Spring Price: Call Us |
| 8 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 9 |
3220-1 |
NUT-JAM Price: $0.99 |
| 10 |
3-9363 |
Brake Band Assy. Price: Call Us |
| 11 |
3-9371 |
BRAKE DRUM Price: $133.65 |
| 12 |
3212-1 |
Screw Price: Call Us |
| 13 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 14 |
322-9 |
SCREW-HH Price: $3.09 |
| 15 |
3-9243 |
Axle Housing W.A. Price: Call Us |
| 16 |
3-9024 |
DISCONTINUED Price: Call Us |
| 17 |
3220-5 |
NUT-JAM Price: $0.65 |
| 18 |
251-188 |
Ball Bearing Price: Call Us |
| 19 |
3-4179 |
DISCONTINUED X-REF Price: Call Us |
| 20 |
3248-3 |
SCREW-SET, HSH Price: $1.70 |
| 21 |
5-0786 |
KEY Price: $13.87 |
| 22 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 23 |
242-35 |
NUT-WHEEL Price: $9.04 |
| 24 |
232-24 |
STEM-VALVE Price: $4.03 |
| 25 |
242-44 |
DISCONTINUED Price: Call Us |
| 26 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER This part replaces 231-41. Price: $147.85 |
| 27 |
3-8951 |
DISCONTINUED Price: Call Us |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
3-9212 |
Pulley Price: Call Us |
| 30 |
3-8856 |
Sprocket Price: Call Us |
| 31 |
3-8943 |
DISCONTINUED Price: Call Us |
| 32 |
3-6998 |
DISCONTINUED Price: $2.00 |
| 33 |
3274-30 |
DISCONTINUED Price: Call Us |
| 34 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 35 |
3-9213 |
Pivot-Countershaft Assy. Price: Call Us |
| 36 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 37 |
32120-40 |
Snap Ring Price: Call Us |
| 38 |
5-3824 |
DISCONTINUED This part replaces 251-189. Price: Call Us |
| 39 |
251-187 |
Bearing Price: Call Us |
| 40 |
3-8586 |
Bearing Cap Price: Call Us |
| 41 |
325-5 |
SCREW-HH Price: $1.20 |
| 42 |
3217-9 |
NUT-HH Price: $0.37 |
| 43 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 44 |
3-8865 |
Sprocket Price: Call Us |
| 45 |
3-8953 |
Bearing Cup Price: Call Us |
| 46 |
3-8667 |
Bearing Price: Call Us |
| 47 |
3-8944 |
Shaft Price: Call Us |
| 48 |
3-8857 |
Sprocket Hub W.A. Price: Call Us |
| 49 |
3-9242 |
Axle Housing W.A. Price: Call Us |
| 50 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 51 |
323-10 |
SCREW-HH Price: $0.89 |
| 52 |
3218-3 |
NUT-JAM Price: $0.25 |
| 53 |
3-9208 |
DISCONTINUED Price: Call Us |
| 54 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 55 |
321-8 |
SCREW-HH Price: $0.34 |
| 56 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 57 |
3-9025 |
Belt Keeper Price: Call Us |
| 58 |
323-14 |
SCREW-HH Price: $1.34 |
| 59 |
3-9361 |
Screw Price: Call Us |
| 60 |
32121-41 |
PIN-ROLL Price: $6.19 |
| 61 |
285-11 |
Pipe Plug Price: Call Us |
| 62 |
3-9357 |
DISCONTINUED Price: Call Us |
| 63 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 64 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 65 |
253-44 |
SEAL-OIL Price: $24.63 |
| 66 |
252-6 |
BEARING-NEEDLE Price: $10.72 |
| 67 |
321-6 |
SCREW-HH Price: $0.25 |
| 68 |
3-9358 |
DISCONTINUE Price: Call Us |
| 69 |
3-9356 |
DISCONTINUED Price: Call Us |
| 71 |
3-9355 |
DISCONTINUE Price: Call Us |
| 72 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 73 |
237-61 |
O-RING Price: $6.87 |
| 74 |
3-9362 |
DISCONTINUED Price: Call Us |
| 75 |
3-9353 |
Gear Case Base Price: Call Us |
| 76 |
3-9282 |
DISCONTINUED Price: Call Us |
| 77 |
3220-7 |
NUT-JAM Price: $4.09 |
| 78 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 79 |
3212-2 |
SCREW-HH Price: $3.60 |
| 80 |
3254-20 |
WASHER-LOCK, INT This part replaces 3254-3. Price: $1.29 |
| 81 |
323-5 |
SCREW-HH Price: $0.41 |
| 82 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 83 |
3273-30 |
DISCONTINUED Price: Call Us |
| 84 |
3212-2 |
SCREW-HH Price: $3.60 |
| 85 |
3-9354 |
DISCONTINUED Price: Call Us |

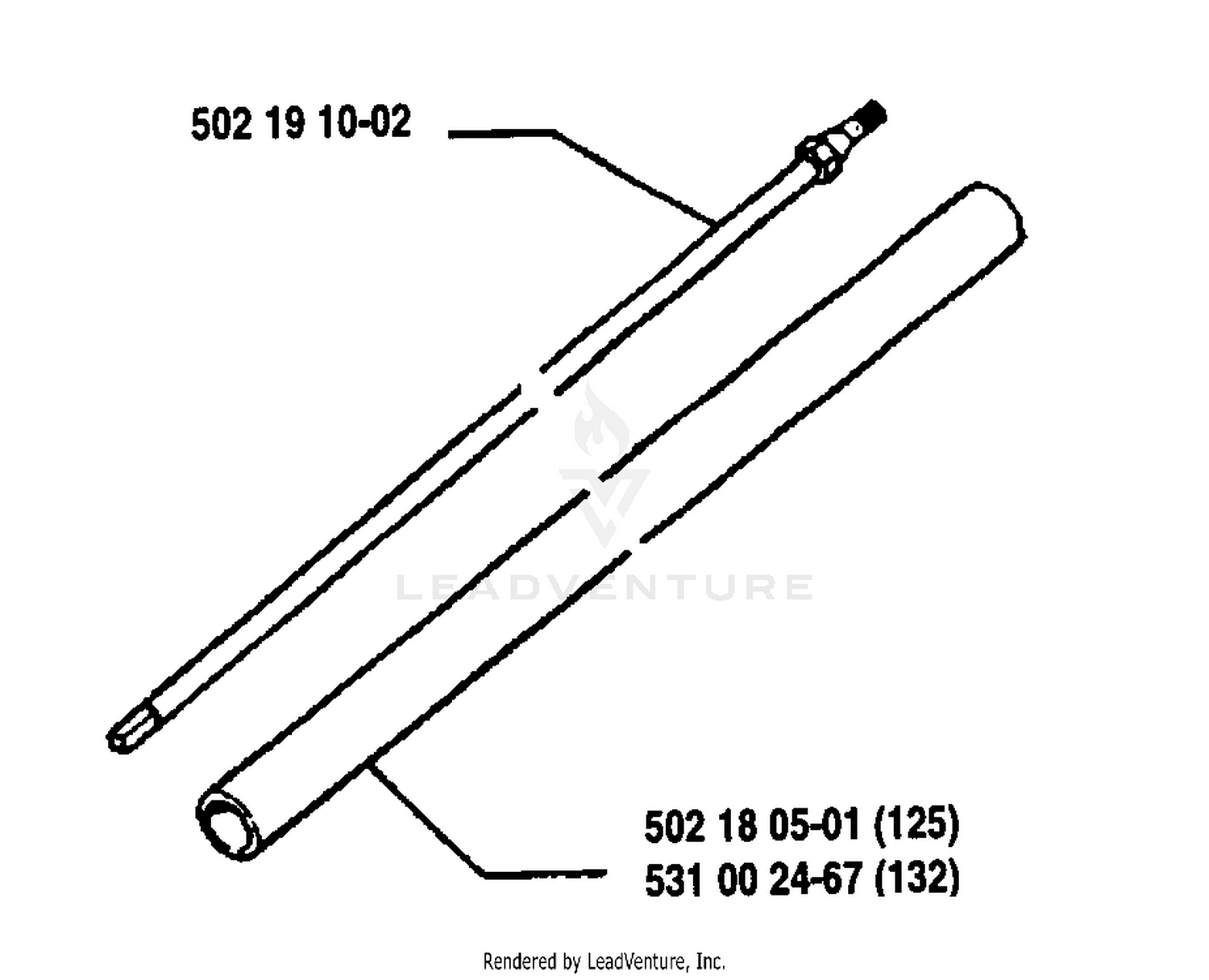

| 502180501 |
502180501 |
Drive Tube Price: $68.66 |
| 502191002 |
502191002 |
DRIVE SHAFT Price: $54.99 |
