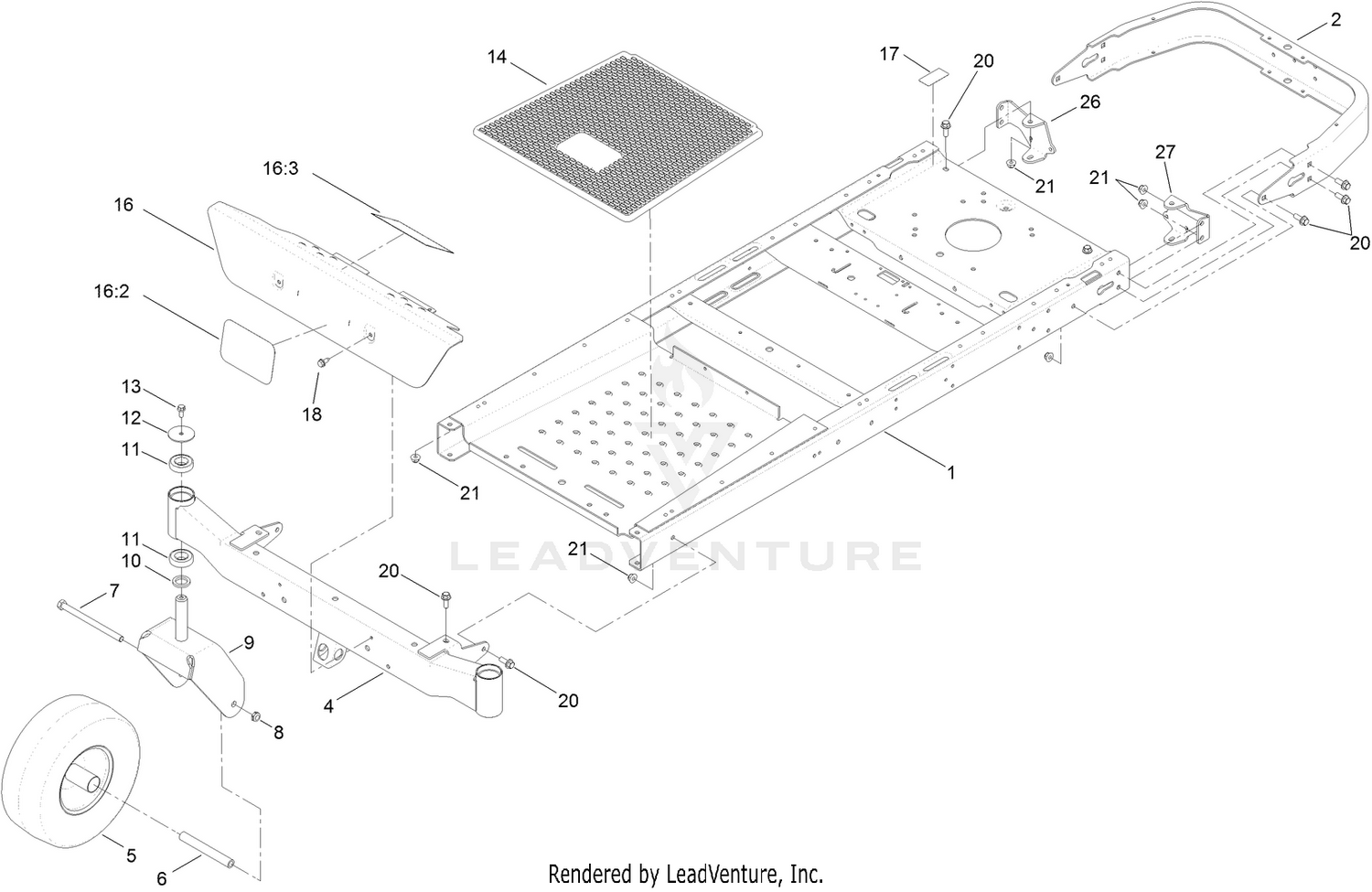

Frame, Front Axle and Caster Wheel Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-7963-01 | FRAME Price: $304.17 |
| 2 | 117-7415-01 | BUMPER-REAR (WIDE) Price: $88.45 |
| 4 | 120-5513-01 | AXLE-FRONT, WIDE Price: $223.28 |
| 6 | 119-3475 | SPANNER Price: $7.46 |
| 7 | 325-37 | SCREW-HH Price: $2.57 |
| 8 | 3296-45 | NUT-HEX Price: $3.79 |
| 9 | 119-3349-01 | FORK-CASTER Price: $64.32 |
| 10 | 117-7394 | WASHER-THRUST Price: $1.70 |
| 11 | 109-3678 | BEARING-BALL Price: $9.46 |
| 12 | 119-8915 | WASHER Price: $2.01 |
| 13 | 3234-47 | SCREW-HHF Price: $1.79 |
| 14 | 132-6921 | KIT-FLOOR MAT TORO LS This part replaces 120-5454. Price: $50.33 |
| 16 | 125-0074 | FOOTREST ASM Price: $140.16 |
| 17 | 121-2989 | DECAL-BYPASS Price: $2.26 |
| 18 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 20 | 3234-42 | SCREW-HHF Price: $1.10 |
| 21 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 26 | 121-0737-01 | MOUNT-HYDRO, REAR (RH) Price: $11.09 |
