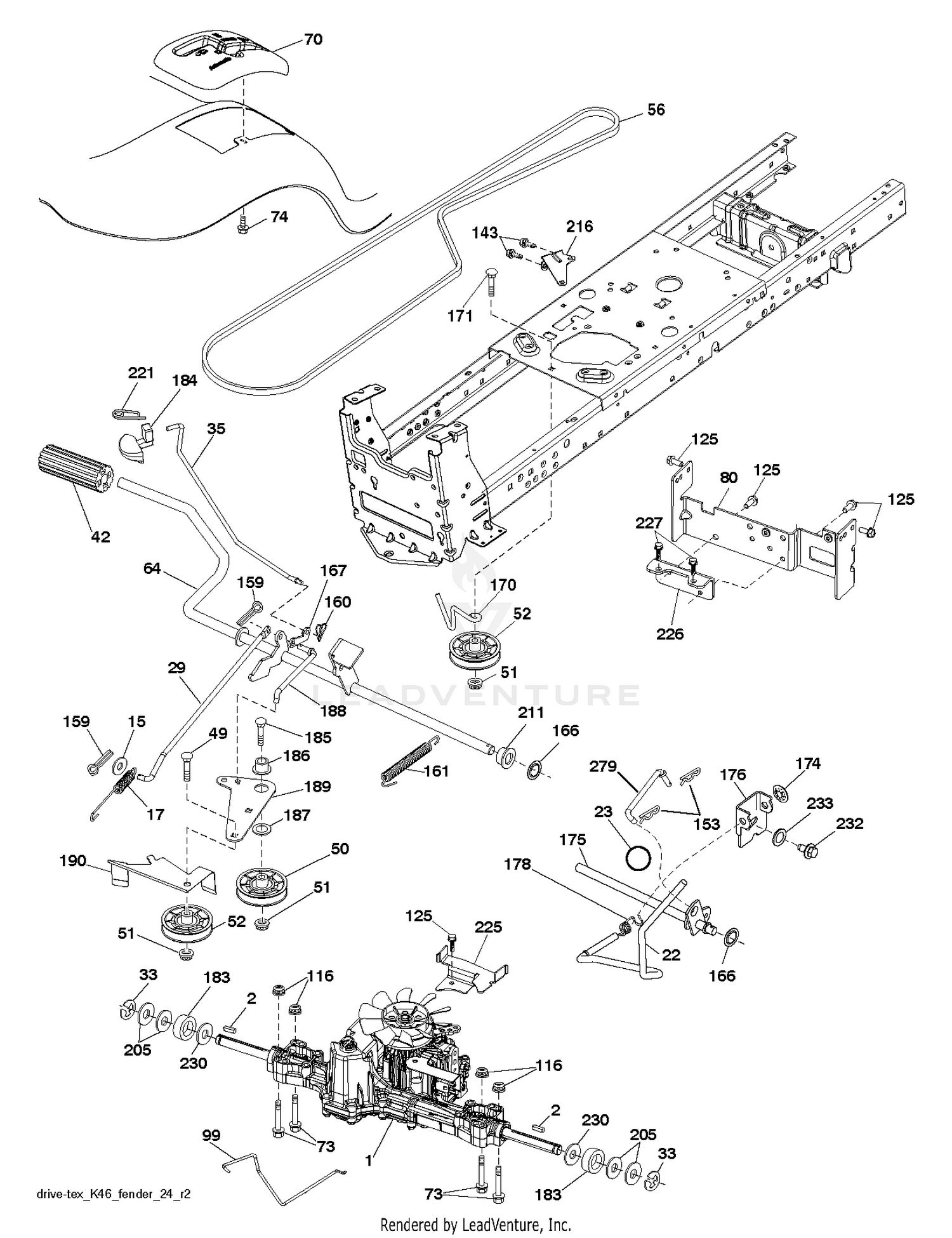

| Ref | Part Number | Description |
|---|
| 1 |
112-1403 |
ADAPTER ASM Price: $437.59 |
| 2 |
130-7823 |
ARM-LIFT This part replaces 112-1408. Price: $286.60 |
| 2 |
532123583 |
SQUARE KEY Price: $2.99 |
| 3 |
110-3362 |
BAR-PIVOT Price: $71.83 |
| 4 |
112-7695-03 |
HANDLE Price: $53.91 |
| 5 |
112-7686 |
LATCH Price: $40.54 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 9 |
323-7 |
SCREW-HH Price: $0.65 |
| 10 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 13 |
112-0038 |
SPACER Price: $7.34 |
| 14 |
99-7984 |
KNOB-SOFT GRIP, PUSH-ON Price: $11.31 |
| 15 |
75-5270 |
SPACER-KNOB, SEAT This part replaces 99-2058. Price: $4.61 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 16 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 17 |
144-7093 |
LINK ASM This part replaces 110-8105. Price: $105.96 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $3.99 |
| 18 |
92-2651 |
WASHER Price: $1.83 |
| 19 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 20 |
323-10 |
SCREW-HH Price: $0.89 |
| 21 |
132-4389 |
HANGER This part replaces 108-2941-03. Price: $129.61 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 22 |
532197660 |
ROD.SHIFT.FENDER.TLT.2006 Price: $129.99 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $8.99 |
| 23 |
84-2350 |
SPACER-LONG Price: $10.04 |
| 24 |
323-14 |
SCREW-HH Price: $1.34 |
| 25 |
323-15 |
SCREW-HH Price: $1.53 |
| 29 |
323-12 |
SCREW-HH Price: $1.14 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
323-47 |
SCREW-HH Price: $1.22 |
| 31 |
121-1760 |
SPACER Price: $1.45 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 34 |
114-4320 |
ROD-HANDLE Price: $9.07 |
| 35 |
532197722 |
ROD.BRAKE.PARKING.LT.T Price: $8.99 |
| 37 |
110-1364 |
CHAIN-PROOF, 12 LINK Price: $8.22 |
| 39 |
115-2090 |
PAD-WEAR Price: $43.56 |
| 40 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 41 |
47-2910 |
WASHER-THRUST Price: $12.99 |
| 42 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 42 |
66-9300 |
SCREW-HHF Price: $4.69 |
| 43 |
92-2739 |
PIN-CLEVIS Price: $8.48 |
| 44 |
100-5024 |
PIN-CLEVIS Price: $7.44 |
| 45 |
119-8969 |
NUT-HEX Price: $1.29 |
| 46 |
120-3499-03 |
BRACKET-STOP This part replaces 120-3499. Price: $23.48 |
| 47 |
121-9062-03 |
TUBE-TONGUE This part replaces 121-9062. Price: $85.05 |
| 48 |
121-9065-03 |
HITCH ASM This part replaces 121-9065. Price: $39.94 |
| 49 |
325-22 |
SCREW-HH Price: $4.26 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
325-7 |
SCREW-HH Price: $1.53 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 |
3218-5 |
NUT-JAM Price: $0.27 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 52 |
3233-14 |
SCREW-CARR Price: $1.95 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 53 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 56 |
532130969 |
V-BELT.MOWER.92.40.42/K46 Price: $22.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $22.99 |
| 70 |
532411329 |
CONSOLE.SHIFT.STL.HYD.BLACK Price: $9.99 |
| 73 |
874490540 |
BOLT Price: $2.99 |
| 74 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 80 |
532440619 |
STRAP.TORQUE.K46.K57R.TT Price: $17.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $6.99 |
| 116 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 143 |
817490508 |
SCREW LT Price: $3.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $3.99 |
| 171 |
872110616 |
BOLT Price: $3.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532406208 |
SHAFT ASM SHIFT Price: $14.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $4.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $3.99 |
| 184 |
532441504 |
HANDLE.PARKING.BRAKE.LTTEX.667 Price: $5.99 |
| 185 |
872110620 |
BOLT Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $1.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 211 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $2.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $3.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 225 |
532403319 |
KEEPER.BELT.TRANSAXLE.K46 Price: $14.99 |
| 226 |
532401564 |
BRACKET.MOUNT.TORQUE.K46.TLT Price: $12.99 |
| 227 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 232 |
874780716 |
BOLT FIN HEX 7/16-14 X 1 Price: $2.99 |
| 233 |
532405296 |
WASHER SERRATED Price: $3.99 |
