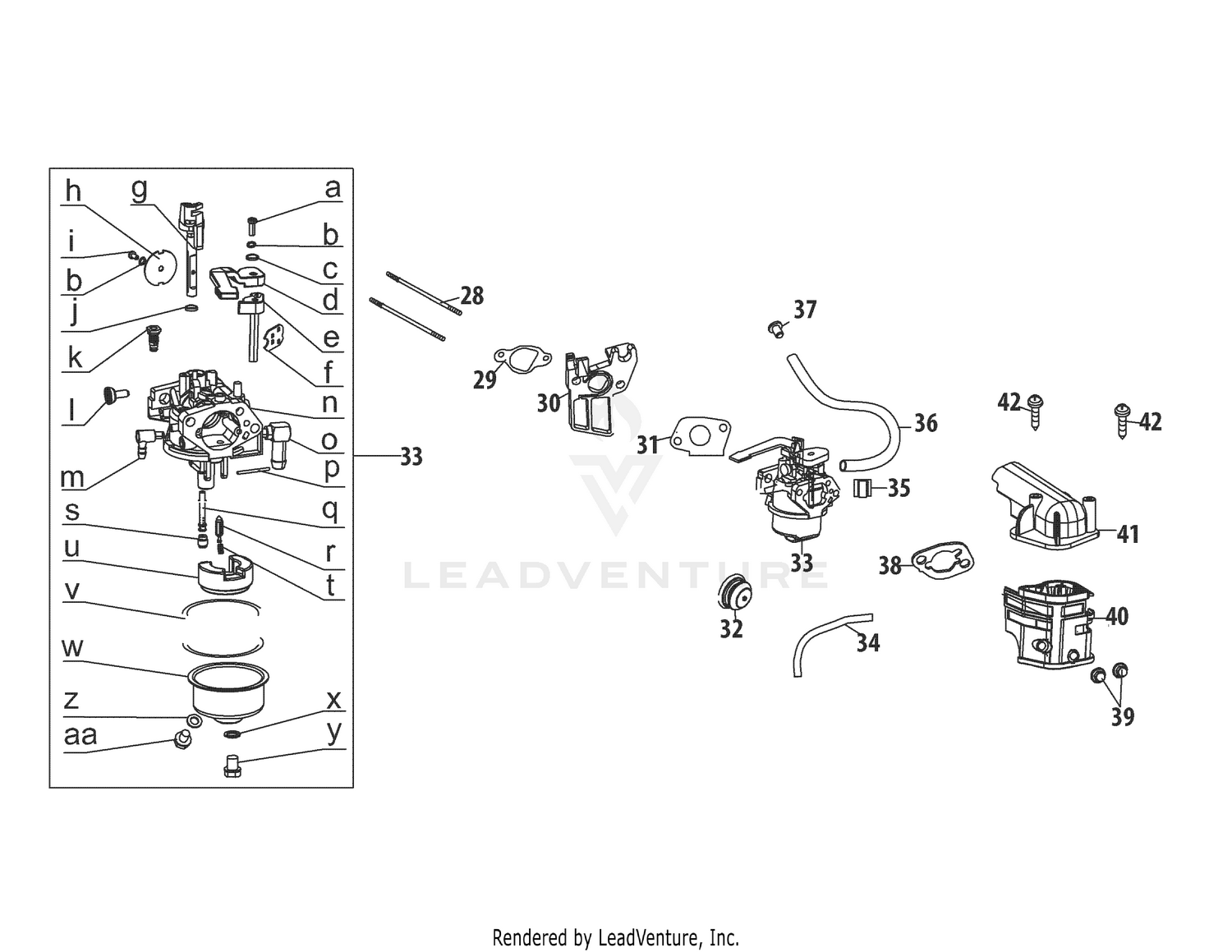

| Ref | Part Number | Description |
|---|
| a |
710-05468 |
Mixture Screw Price: $3.56 |
| b |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| c |
None |
Washer 3 |
| d |
951-12811 |
Choke Lever Price: $10.46 |
| e |
None |
Choke Shaft |
| f |
None |
Choke Plate |
| g |
None |
Throttle Plate |
| h |
None |
Throttle Plate |
| i |
None |
Bolt M3×6 |
| j |
None |
Gasket |
| k |
None |
Idle Jet |
| l |
None |
Idle Speed Adjusting Screw |
| m |
951-12019A |
Primer Pipe Price: $6.17 |
| n |
None |
Carburetor Body |
| o |
None |
Inlet Tube Assembly |
| p |
None |
Float Pin |
| q |
None |
Nozzle Tube |
| r |
None |
Needle Valve |
| s |
None |
Main Jet |
| t |
None |
Needle Valve Spring |
| u |
731P09132A |
FLOAT Price: $4.45 |
| v |
951-11589 |
O-Ring, Float Bowl Price: $6.04 |
| w |
None |
Float Bowl |
| x |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| y |
710-04945 |
Bolt, Float Bowl Price: $3.66 |
| z |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| 28 |
710-04909 |
Stud M6×113 Price: $3.76 |
| 29 |
951-12610B |
CARBURETOR INSULATOR GASKET This part replaces 951-12610. Price: $4.29 |
| 30 |
951-12611 |
Carburetor Insulator Price: $4.74 |
| 31 |
751P12005B |
CARBURETOR GASKET This part replaces 951-11569A. Price: $4.89 |
| 32 |
951-10639B |
PRIMER This part replaces 951-10639A. Price: $13.84 |
| 33 |
951-14093 |
CARBURETOR Price: $95.92 |
| 35 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 36 |
951-12613 |
Fuel Hose 6.3×12.5×300 Price: $11.37 |
| 37 |
951-14091 |
Plug Price: $4.09 |
| 38 |
951-11571 |
CARBURETOR GASKET PLATE Price: $4.83 |
| 39 |
712-05015 |
Flange Nut M6 Price: $5.78 |
| 40 |
951-14796 |
HEATER BOX HOUSING This part replaces 751-14796. Price: $14.99 |
| 41 |
951-10961 |
Heater Box Price: $14.50 |
| 42 |
710-05275 |
Screw 4.2×45 Price: $3.48 |
