| Ref | Part Number | Description |
|---|
| 1 |
461580 |

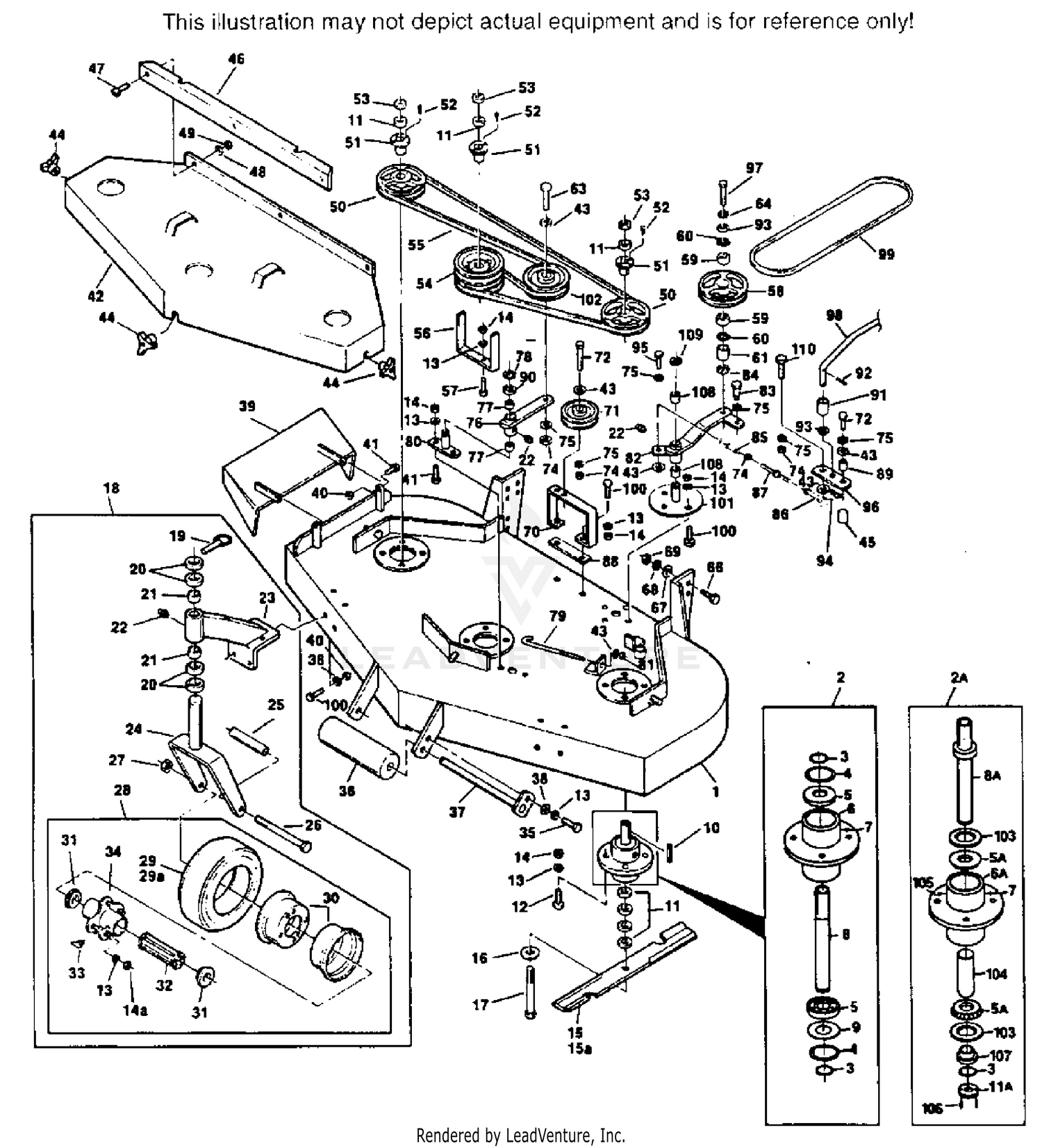

CUTTER DECK W/ DECALS, SM-61 This part replaces 46150. Price: Call Us |
| 2 |
48926 |
Hub, Tapered 1.125" bore This part replaces 46020. Price: Call Us |
| 2A |
48926 |
Hub, Tapered 1.125" bore This part replaces 46400. Price: Call Us |
| 3 |
04050-04 |
RETAINING RING, 1" EXT.-INVERTED Price: Call Us |
| 4 |
04050-07 |
RETAINING RING, 2-7/16 INT.-BASIC Price: Call Us |
| 5 |
48101-02 |
BEARING, CUTTER SPINDLE Price: Call Us |
| 5A |
48668 |
Bearing Set Price: Call Us |
| 6 |
48926 |
Hub, Tapered 1.125" bore This part replaces 41001. Price: Call Us |
| 6A |
461663 |
Spindle Assembly This part replaces 41007. Price: Call Us |
| 7 |
48114-02 |
GREASE FITTING, STR. 5/16 SERR. Price: Call Us |
| 8 |
43001-02 |
SPINDLE, CUTTER BLADE Price: Call Us |
| 8A |
43275 |
SHAFT, CUTTER SPINDLE This part replaces 45391. Price: Call Us |
| 9 |
04041-02 |
WASHER, 1-5/16 X 2-7/16 X 16 GA. Price: Call Us |
| 10 |
04063-08 |
KEY, 1/4 X 1/4 X 2 Price: Call Us |
| 11 |
43592 |
Spacer, Cutter Blade This part replaces 43038. Price: Call Us |
| 11A |
43201 |
SPACER, CUTTER BLADE Price: Call Us |
| 15 |
481708 |
Cutter Blade 21" This part replaces 48111. Price: Call Us |
| 15A |
481712 |
Cutter Blade 21" Hi-Lift This part replaces 48304. Price: Call Us |
| 16 |
04040-10 |
FLAT WASHER, 5/8W Price: Call Us |
| 17 |
04001-41 |
BOLT, HEX HD., 5/8-11 X 9-1/2 Price: Call Us |
| 18 |
46079 |
CASTER ASSY, COMP.(INCL. 19-28) Price: Call Us |
| 19 |
04066-01 |
QUICK PIN Price: Call Us |
| 20 |
43037-01 |
SPACER, CASTER YOKE, 1/2 LONG Price: Call Us |
| 21 |
48100-01 |
BRONZE BEARING Price: Call Us |
| 22 |
48114-04 |
GREASE FITTING, STR, 1/4-28 Price: Call Us |
| 23 |
46082 |
SUPPORT ASSY.(INCL. 21-22) Price: Call Us |
| 24 |
45006 |
CASTER YOKE Price: Call Us |
| 25 |
43022 |
SLEEVE, CASTER WHEEL BEARING Price: Call Us |
| 26 |
04001-37 |
BOLT, HEX HD., 1/2-13 X 5-1/2 Price: Call Us |
| 28 |
48307 |
Wheel Assy., Caster This part replaces 48307-01. Price: Call Us |
| 29 |
481774 |
Tire Only, Caster Wheel This part replaces 48307-02. Price: Call Us |
| 29A |
481773 |
Inner Tube Only, Caster Wheel This part replaces 48006-03. Price: Call Us |
| 30 |
481772 |
Rim Pair, Caster Wheel This part replaces 48307-04. Price: Call Us |
| 31 |
481770 |
Retainer This part replaces 48006-07. Price: Call Us |
| 32 |
481769 |
Roller Bearing .625 x 3.25" This part replaces 48006-06. Price: Call Us |
| 33 |
48114-03 |
GREASE FITTING, 45' 1/4-28 Price: Call Us |
| 34 |
481768 |
Hub Assy. W/Bolts, Caster Wheel This part replaces 48006-05. Price: Call Us |
| 36 |
48038 |
GUIDE ROLLER Price: Call Us |
| 37 |
45944 |
Shaft, Roller This part replaces 45046. Price: Call Us |
| 39 |
461292 |
Discharge Chute, Advantage This part replaces 45029. Price: Call Us |
| 42 |
46151 |
BELT COVER(INCL. DECALS) Price: Call Us |
| 44 |
04029-03 |
WING NUT, 3/8-16 Price: Call Us |
| 45 |
43123 |
SPACER Price: Call Us |
| 46 |
42045 |
BELT COVER SKIRT Price: Call Us |
| 50 |
48141 |
Hub, Tapered 1.00" bore This part replaces 48127. Price: Call Us |
| 51 |
48141 |
TAPER HUB Price: Call Us |
| 54 |
48940 |
Pulley, Double Groove, 6.35/5.75 O.D. This part replaces 48128. Price: Call Us |
| 55 |
48607 |
BELT, BLADE DRIVE Price: Call Us |
| 56 |
42063 |
BELT GUIDE Price: Call Us |
| 58 |
48062 |
PULLEY IDLER Price: Call Us |
| 59 |
48102 |
BEARING Price: Call Us |
| 60 |
04050-06 |
RETAINING RING, 1-9/16 INT. BASIC Price: Call Us |
| 61 |
43045 |
SLEEVE, IDLER BEARING Price: Call Us |
| 62 |
43040 |
SPACER, IDLER BEARING Price: Call Us |
| 70 |
42536 |
IDLER PULLEY SUPPORT Price: Call Us |
| 71 |
48413 |
PULLEY, BELT GUIDE Price: Call Us |
| 76 |
46081 |
IDLER ARM ASSY.(INCL. 22 & 77) Price: Call Us |
| 77 |
48100-05 |
BRONZE BEARING Price: Call Us |
| 78 |
04050-02 |
RETAINING RING, 3/4 EXT.-"E" Price: Call Us |
| 79 |
43028 |
ROD, IDLER PULL, J Price: Call Us |
| 80 |
45037 |
IDLER PIVOT Price: Call Us |
| 82 |
46383 |
IDLER ARM ASSY.(INCL. 22 & 77) Price: Call Us |
| 83 |
43054 |
SHOULDER BOLT Price: Call Us |
| 84 |
43041 |
SPACER, IDLER Price: Call Us |
| 85 |
48544 |
ROD END, LH(GOLD COLORED) Price: Call Us |
| 86 |
48464 |
ROD END, RH(SILVER COLORED) Price: Call Us |
| 87 |
48590 |
LINK, TURNBUCKLE Price: Call Us |
| 88 |
42917 |
SPACER BAR Price: Call Us |
| 89 |
43042 |
SLEEVE, CAM CLUTCH Price: Call Us |
| 90 |
04041-08 |
WASHER 3/4(49/64 X 1-1/4 X 16 GA.) Price: Call Us |
| 91 |
43043 |
SLEEVE, CLUTCH ROD Price: Call Us |
| 94 |
04062-01 |
HAIR PIN, LARGE Price: Call Us |
| 96 |
421107 |
CAM LINK Price: Call Us |
| 98 |
44054 |
ROD, BLADE ENGAGE(APPROX. 27" LONG) Price: Call Us |
| 99 |
48083 |
BELT, CUTTER DRIVE Price: Call Us |
| 101 |
45329 |
IDLER PIVOT Price: Call Us |
| 102 |
48531 |
PULLEY, IDLER Price: Call Us |
| 103 |
481024 |
Seal, Top This part replaces 48681. Price: Call Us |
| 104 |
43218 |
SLEEVE, TAPERED BEARING SPINDLE Price: Call Us |
| 105 |
48677 |
RELIEF FITTING, TAPERED BEARING SPINDLE Price: Call Us |
| 107 |
43217 |
BUSHING, TAPERED BEARING SPINDLE Price: Call Us |
| 108 |
48100-02 |
BRONZE BEARING Price: Call Us |
