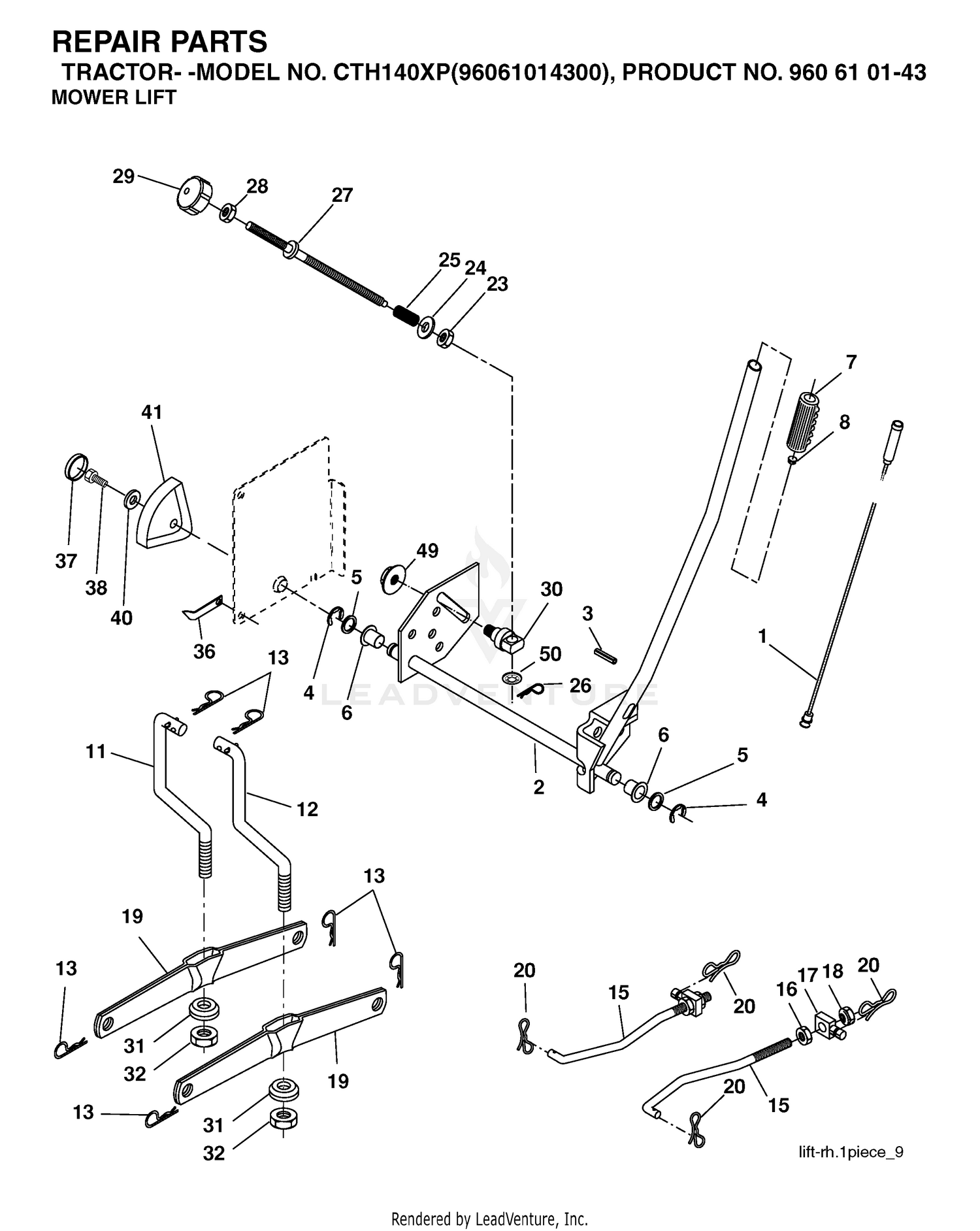

MOWER LIFT / DECK LIFT 2

MOWER LIFT / DECK LIFT 2

Parts (83)

RefPart NumberDescription
1 353-426 FITTING-90 DEG Price: $29.88
1 532159460 WIRE ASM INNER W/ PLUNGER LT Price: $22.99
2 237-80 O-RING Price: $6.10
2 529845601 SERVICE KIT SHAFT ASM RH HANDL This part replaces 532159471. Price: $49.99
3 44-7612 BOLT-HWH Price: $24.50
3 532105767 PIN GROOVE. Price: $4.99
4 353-721 PLUG Price: $44.12
4 812000002 RETAINING RING LT Price: $3.99
5 237-79 O-RING Price: $5.46
5 819211621 WASHER Price: $4.99
6 38-5540 FITTING-HYD Price: $80.14
6 532120183 BEARING.NYLON Price: $5.99
7 353-537 FITTING-ELBOW, 90 DEG Price: $12.91
7 532125631 GRIP HANDLE Price: $6.99
8 52-5860 COLLAR-SPOOL Price: $13.37
8 532125925 PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99
9 68-4240 BONNET ASSEMBLY Price: $42.76
10 3253-3 WASHER-LOCK Price: $0.31
11 353-976 SCREW Price: $1.49
11 532165828 LIFT LINK, LH This part replaces 532165829. Price: $17.99
12 353-417 COLLAR-STOP Price: $10.31
12 532165830 LINK ASSY. This part replaces 532165831. Price: $9.99
13 44-7650 SPRING Price: $31.84
13 532124670 RETAINER-SPRNG RB Price: $5.99
14 353-959 PLATE-RETAINER, SEAL Price: $7.40
15 353-958 WASHER Price: $13.57
15 532173288 LINK.SUSPENSION.FRONT Price: $11.99
17 3219-3 NUT-HEX Price: $0.34
17 532175689 TRUNNION Price: $3.99
18 353-799 CONVERSION PLUG ASM Price: $87.60
18 596135601 GSPW NUTS This part replaces 873800800. Price: $3.99
19 237-177 O-RING This part replaces 353-800. Price: $2.73
19 531165801 SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99
20 32153-3 NUT-HEX, SIDE DEFORM Price: $5.59
20 532194209 PIN.COTTER.7/16.BOW TI. Price: $2.99
21 353-798 PLATE-COVER, RIGHT Price: $451.34
22 322-13 SCREW-HH Price: $2.73
23 532110807 NUT T Price: $3.99
24 819131016 WASHER Price: $2.99
25 532002876 SPRING This part replaces 532124874. Price: $3.99
26 353-318 WIPER Price: $32.73
26 596029401 GSPW Retainers This part replaces 532169484. Price: $3.99
27 532126971 ROD ADJ LIFT Price: $5.99
28 353-321 PIN-COTTER Price: $3.15
28 873220600 NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99
29 353-324 HANDLE BRACKET Price: $107.74
29 532138057 KNOB INF 3/8-16 Price: $6.99
30 532150233 TRUNNION Price: $9.99
30 63-8760 LINK PIN KIT This part replaces 52-5920. Price: $62.78
31 3272-1 PIN-COTTER Price: $0.25
31 532169865 BEARING.PIVOT.LIFT Price: $5.99
32 52-5900 SCREW Price: $26.40
32 873540600 NUT CROWNLOCK 3/8-24 Price: $3.99
33 52-5670 DISCONTINUED X-REF Price: Call Us
34 283-62 PIN-CLEVIS Price: $0.61
35 353-322 PIN-CLEVIS Price: $5.09
36 353-322 PIN-CLEVIS Price: $5.09
36 532155097 POINTER, HEIGHT INDICATOR(2 2) Price: $4.99
37 44-7660 DISCONTINUED Price: Call Us
37 532123935 PLUG,HOLE Price: $4.99
38 353-306 WASHER-BACKUP Price: $9.12
38 593337601 Screws This part replaces 817060516. Price: $3.99
39 353-305 O-RING Price: $10.91
40 353-303 WASHER-BACKUP Price: $9.06
40 819112410 WASHER Price: $3.99
41 353-302 O-RING Price: $10.13
41 532123934 HEIGHT INDICATOR Price: $2.99
42 353-304 SPRING-CHECK, LIFT Price: $25.31
43 353-301 CHECK-LIFT, POPPET Price: $23.96
44 44-7621 COVER-END Price: $522.95
45 353-952 SEAL-BACK-UP Price: $7.89
46 353-758 O-RING Price: $18.26
47 353-331 O-RING Price: $16.66
48 353-760 RELIEF-BODY Price: $239.97
49 353-392 RING-PISTON Price: $13.94
49 532409149 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99
50 353-531 POPPET AND RING ASM Price: $229.51
50 532110452 NUT PUSH M Price: $2.99
51 353-328 SHIM (.040) Price: $3.53
52 353-329 SHIM (.020) Price: $2.10
53 353-330 SHIM (.010) Price: $3.60
54 46-2380 SPRING Price: $24.81
55 353-334 CAP-RELIEF Price: $55.48
