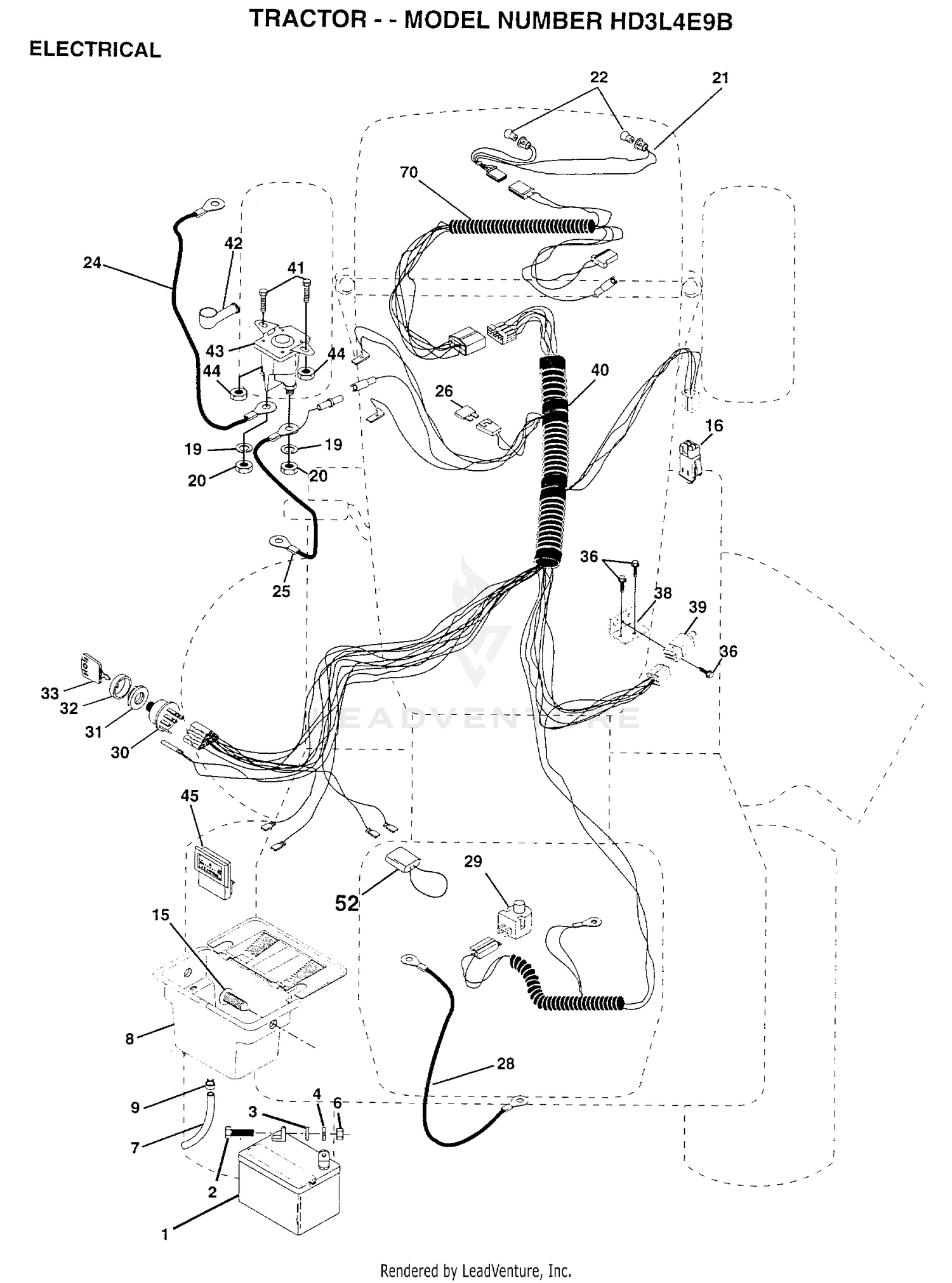

| Ref | Part Number | Description |
|---|
| 1 |
146139 |
SUB= 123899X Price: Call Us |
| 1 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 2 |
76-7010 |
RING-RETAINING This part replaces 60-6260. Price: $3.66 |
| 3 |
19091016 |
WASHER Price: Call Us |
| 3 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 4 |
10040400 |
LOCKWASHER Price: Call Us |
| 4 |
94-3027 |
WASHER-SEAL Price: $32.38 |
| 5 |
93-6337 |
SCREW Price: $9.77 |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 6 |
99-8701 |
ROTATING KIT This part replaces 93-6322. Price: $1,722.95 |
| 7 |
105-2856 |
PISTON-SERVO Price: $739.56 |
| 7 |
109238X |
TUBE T Price: Call Us |
| 8 |
144940 |
SUB= 156417 Price: Call Us |
| 8 |
94-3032 |
FOLLOWER-PISTON Price: $574.71 |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 9 |
94-3033 |
PLATE-COVER Price: $121.09 |
| 10 |
93-6339 |
GASKET Price: $14.34 |
| 11 |
105-2900 |
GASKET-HOUSING Price: $46.30 |
| 12 |
105-2901 |
GASKET-HOUSING, CONTROL Price: $38.61 |
| 13 |
105-9853 |
PLATE-COVER Price: $142.29 |
| 14 |
94-3026 |
CAMPLATE ASM Price: $1,164.81 |
| 15 |
147688 |
FASTNER.SNAP-IN Price: Call Us |
| 15 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 17 |
105-2858 |
VALVE-RELIEF This part replaces 105-2946. Price: $1,100.81 |
| 18 |
107-1561 |
SEAL KIT This part replaces 105-3349. Price: $494.78 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
323-15 |
SCREW-HH Price: $1.53 |
| 20 |
323-16 |
SCREW-HH Price: $2.89 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
93-6324 |
SCREW Price: $8.89 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 22 |
99-8704 |
PLATE-VALVE This part replaces 93-6370. Price: $457.47 |
| 24 |
105-2904 |
BACKPLATE Price: $1,515.44 |
| 24 |
4206J |
CABLE-BATTERY T Price: Call Us |
| 25 |
146147 |
CABLE.BTRY.6GA.RD Price: Call Us |
| 25 |
93-6344 |
DRIVESHAFT Price: $967.93 |
| 26 |
105-2905 |
O-RING Price: $26.38 |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 27 |
3217-5 |
NUT-HEX Price: $0.25 |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 28 |
4207J |
CABLE T Price: Call Us |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 29 |
60-6240 |
WASHER This part replaces 94-3007. Price: $15.20 |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 30 |
93-6375 |
KEY Price: $18.32 |
| 31 |
105-3331 |
SEAL-SHAFT Price: $35.63 |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 32 |
95-2110 |
ADAPTOR Price: $1,026.64 |
| 33 |
105-2862 |
ARM-CONTROL Price: $36.88 |
| 33 |
122147X |
KEY Price: Call Us |
| 34 |
93-6306 |
CONTROL ASM Price: $1,822.55 |
| 35 |
93-6365 |
GEROTER-INNER Price: $124.40 |
| 36 |
17021008 |
SCREW Price: Call Us |
| 36 |
93-6364 |
GEROTER-OUTER Price: $152.48 |
| 37 |
94-3041 |
ORIFICE-CONTROL (.028 DIA) Price: $26.81 |
| 38 |
140336 |
BRACKET SWITCH IN Price: Call Us |
| 38 |
74-9280 |
PLUG ASM Price: $35.55 |
| 39 |
105-2913 |
VALVE-BYPASS Price: $91.51 |
| 39 |
109553X |
SWITCH INTERLOCKT Price: Call Us |
| 40 |
151212 |
HARNESS.IGNITION Price: Call Us |
| 40 |
94-3030 |
WASHER Price: $6.24 |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 41 |
93-6336 |
WASHER Price: $3.19 |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 45 |
121433X |
SUB= 122822X Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
