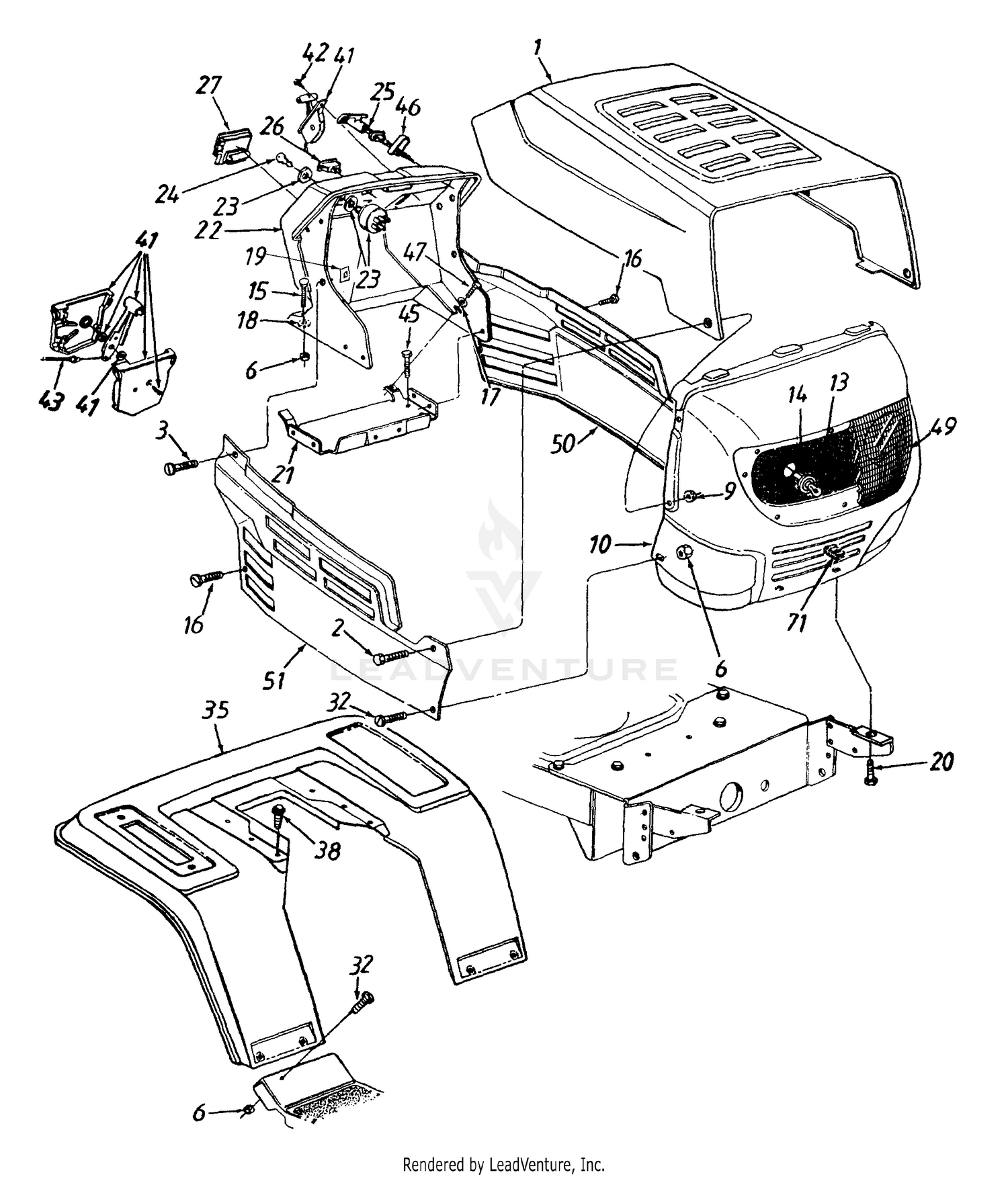

| Ref | Part Number | Description |
|---|
| 1 |
783-0250 |
HOOD-STY O W/LOUVERS Not Available Price: |
| 2 |
938-0952A |
Shoulder Bolt, .375 x .125 This part replaces 738-0952. Price: $6.17 |
| 3 |
N/A |
UNKNOWN |
| 6 |
712-0271 |
Hex Sems Nut 1/4-20 Thd. Price: $3.78 |
| 9 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 10 |
783-04979 |
GRILL:2 STYLE Not Available This part replaces 783-0156A. Price: |
| 13 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 14 |
925-1651 |
SQ HEADLIGHT SOCKET Not Available This part replaces 725-1651. Price: |
| 15 |
710-0703 |
Carriage Bolt 1/4-20 x .75" Lg. Price: $3.66 |
| 16 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Price: $3.86 |
| 17 |
736-0173 |
Fl-Wash. .281" I.D. x .73" O.D. Price: $3.76 |
| 18 |
726-0233 |
Bolt Retainer 1/4" I.D. Price: $3.93 |
| 19 |
712-0185 |
SPEED NUT 1/4-20 Not Available Price: |
| 20 |
710-0376 |
Hex Bolt 5/16-18 x .1" Lg. (Gr.5) Price: $3.66 |
| 21 |
17632A |
GAS TANK SUPPORT BRKT. Not Available Price: |
| 22 |
731-1096B |
KIT-DASH Not Available Price: |
| 23 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 24 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 25 |
946-0616A |
Choke Control 23" This part replaces 746-0616A. Price: $24.63 |
| 32 |
710-0924 |
Pan Hd. Scr. 1/4-20 x .75" Lg. Price: $4.02 |
| 35 |
17871B |
FENDER-RR Not Available Price: |
| 38 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Price: $3.82 |
| 41 |
831-0823A |
Throttle Box Ass'y. Price: $30.59 |
| 42 |
710-0779A |
Truss Mach. AB-Tap Scr. #10 x .5" Lg. Price: $3.85 |
| 43 |
946-0638 |
Throttle Control Wire 18.5" This part replaces 746-0776. Price: $9.47 |
| 45 |
710-0603 |
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Price: $4.19 |
| 46 |
17782 |
CLIP-CHOKE RETAINER Not Available Price: |
| 47 |
710-0642 |
Hex TT-Tap Scr. 1/4-20 x .75" Lg. Price: $4.05 |
| 49 |
753-06310 |
KIT-SERVICE FOR 731-1503A Not Available This part replaces 731-1503A. Price: |
| 50 |
783-0151 |
SIDE PANEL (LH) Not Available Price: |
| 51 |
783-0150A |
SIDE PANEL (RH) Not Available Price: |
| 71 |
726-0211 |
U-Nut 5/16-18 Thd. Price: $3.90 |
