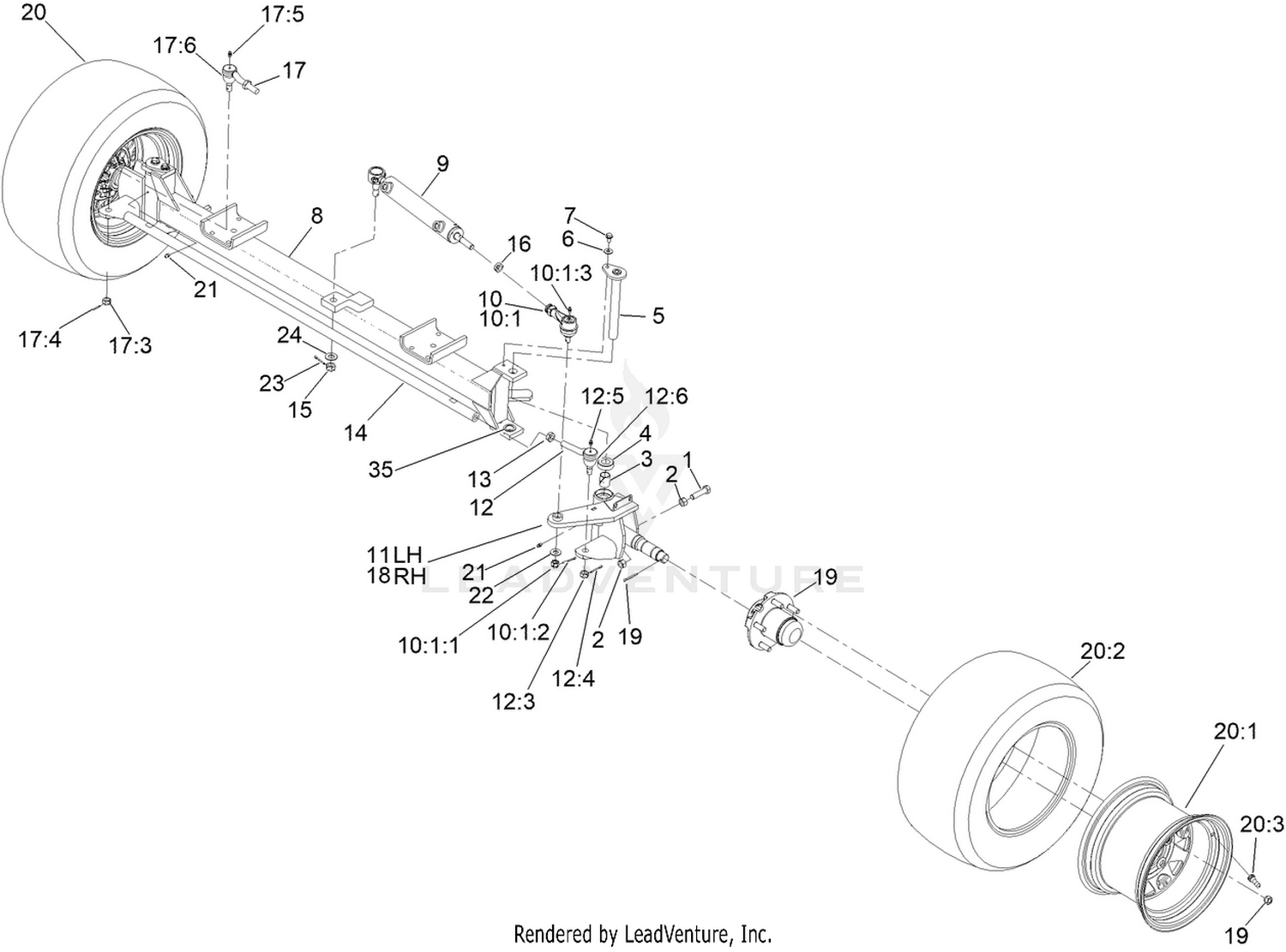

Front Axle Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 01-182-0816 | BOLT-HH Price: $2.85 |
| 2 | 3217-9 | NUT-HH Price: $0.37 |
| 3 | 93-6586 | BUSHING Price: $26.89 |
| 4 | 93-6587 | BEARING Price: $14.99 |
| 5 | 138-6177-03 | KING-PIN ASM This part replaces 138-6177. Price: $68.87 |
| 6 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 7 | 32144-14 | SCREW-HWHTF Price: $4.29 |
| 8 | 138-9615-03 | FRONT AXLE ASM Price: $1,285.38 |
| 9 | 138-6102 | CYLINDER ASM Price: $1,096.53 |
| 10 | 93-6509 | END-TIE ROD This part replaces 93-6509-03. Price: $98.38 |
| 11 | 138-6244-03 | SPINDLE-LH Price: $460.63 |
| 12 | 87-1470-03 | END-TIE ROD, LH Price: $101.78 |
| 13 | 3218-21 | NUT-JAM Price: $3.19 |
| 14 | 93-6588-03 | ROD-STEERING Price: $296.55 |
| 15 | 32136-13 | NUT-SHH Price: $2.85 |
| 16 | 3220-11 | NUT-JAM Price: $0.81 |
| 17 | 87-1480-03 | END-TIE ROD, RH Price: $101.78 |
| 18 | 117-5897-03 | SPINDLE ASM Price: $461.32 |
| 19 | 119-6003 | HUB ASM Price: $163.68 |
| 20 | 127-1100 | WHEEL AND TIRE ASM Price: $422.57 |
| 21 | 302-5 | FITTING-GREASE Price: $0.59 |
| 22 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 23 | 3272-12 | PIN-COTTER Price: $0.25 |
| 24 | 119-1868 | WASHER Price: $2.49 |
