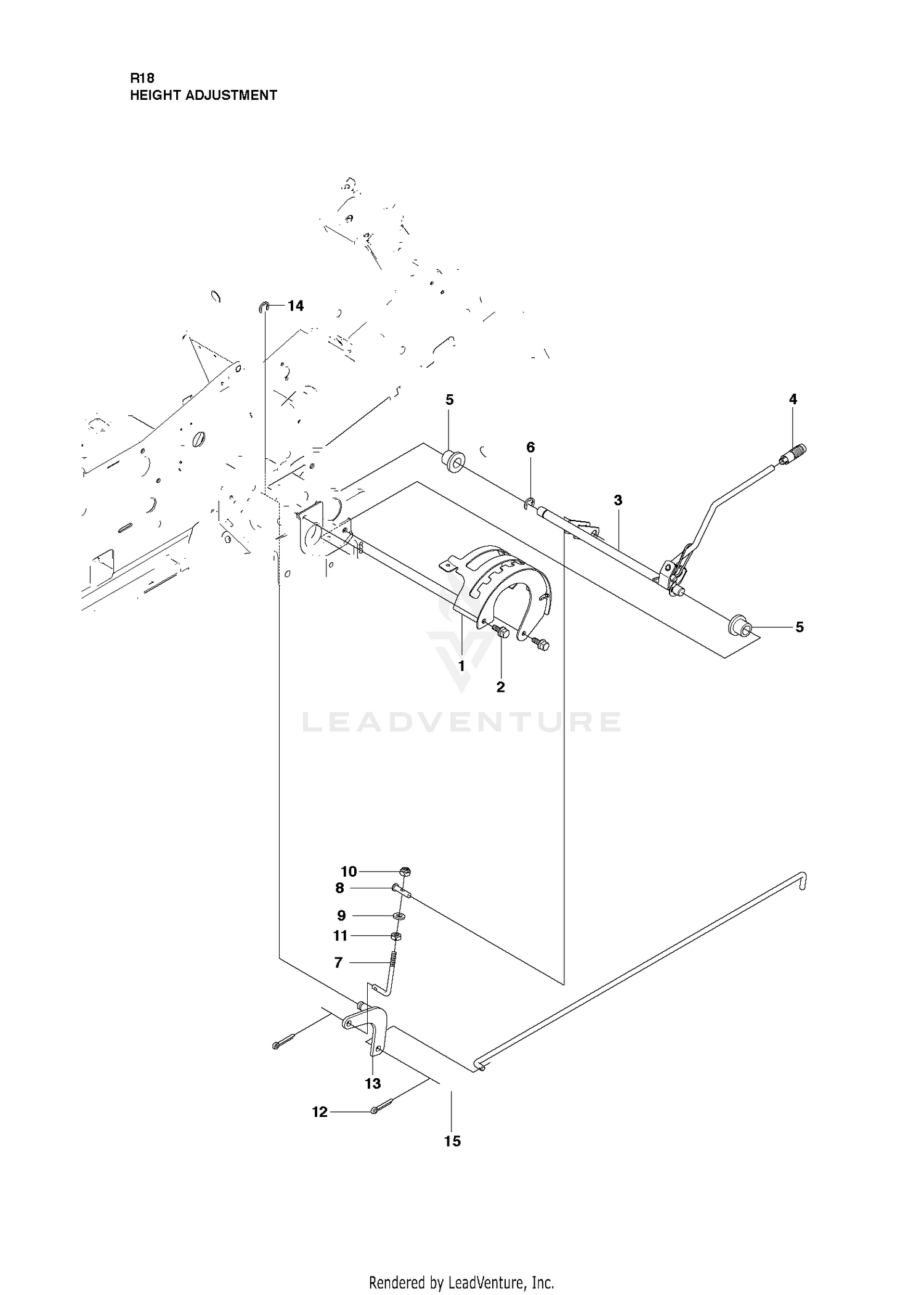

HEIGHT ADJUSTMENT
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535501401 | CONTROL PLATE Price: $25.99 |
| 2 | 506570103 | BOLT Price: $3.99 |
| 3 | 504734501 | HEIGHT ADJUSTER Price: $74.99 |
| 4 | 588164101 | Handles This part replaces 506542001. Price: $11.99 |
| 5 | 584871302 | BEARING FLANGE This part replaces 506554301. Price: $4.99 |
| 6 | 735312220 | CIRCLIP Price: $3.99 |
| 7 | 506908201 | LINKAGE Price: $11.99 |
| 9 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 10 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 11 | 731231801 | NUT Price: $3.99 |
| 12 | 721618301 | Split Pin Price: $1.99 |
| 13 | 525476001 | Price: Call Us |
| 14 | 735311520 | RETAINING RING Price: $2.99 |
| 15 | 523114501 | CONNECTION ROD Price: $9.99 |
