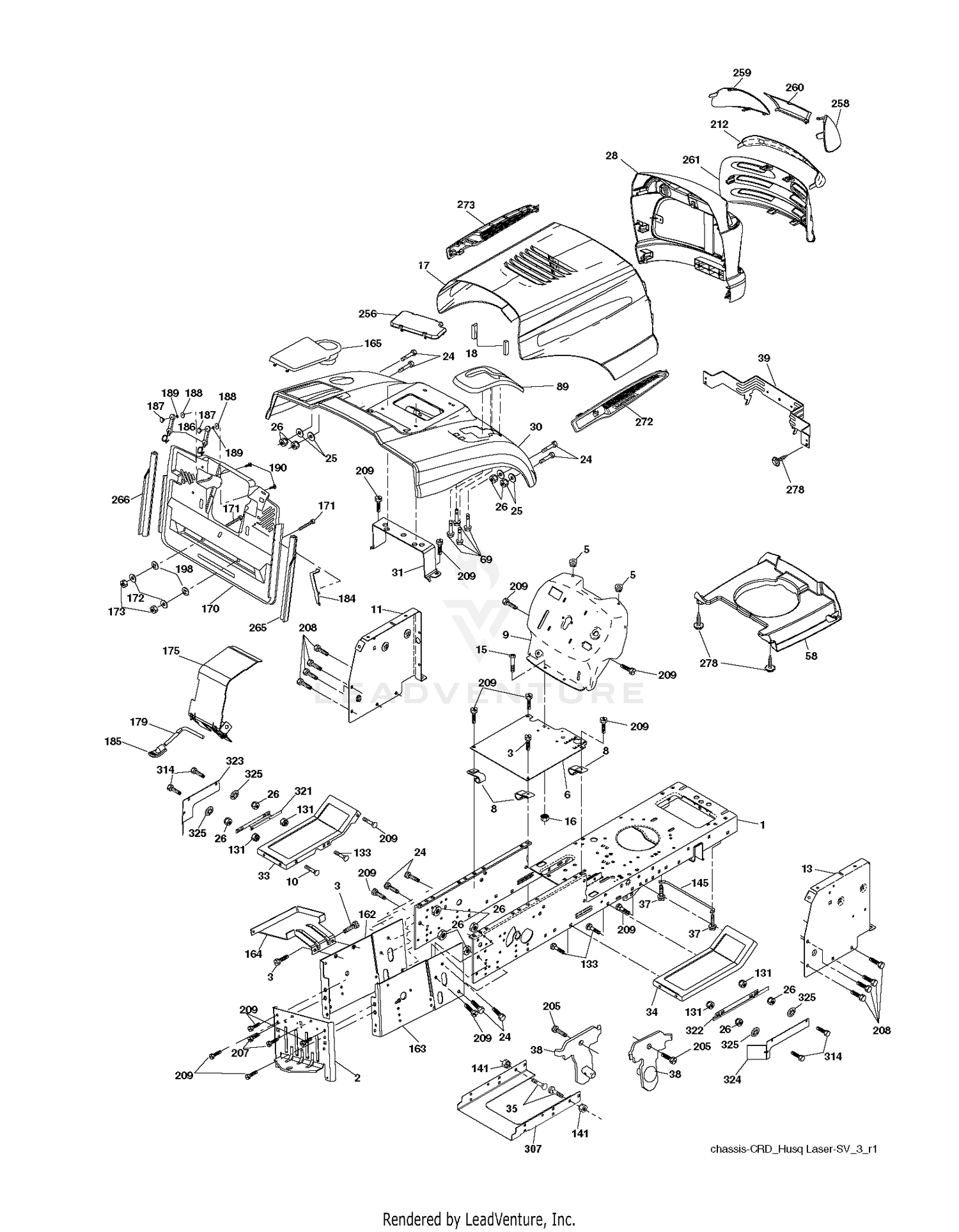

| Ref | Part Number | Description |
|---|
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 1 |
532174620 |
CHASSIS Price: $119.99 |
| 2 |
106-9208 |
SHORT CYLINDER PIN ASM This part replaces 83-6790. Price: $83.12 |
| 2 |
583101001 |
DRAWBAR.CRD This part replaces 532180384. Price: $64.99 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 3 |
99-5643 |
HOSE-HYD Price: $125.90 |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 6 |
583133601 |
SADDLE.FLAT.LT/YT/CRD.2003 This part replaces 532184419. Price: $12.99 |
| 7 |
99-5641 |
HOSE-HYD Price: $136.64 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 8 |
94-5808 |
DISCONTINUED Price: Call Us |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
583715601 |
DASH.SLKSCR.PLM This part replaces 532195252. Price: $29.99 |
| 10 |
595901101 |
Bolts This part replaces 872140610. Price: $3.99 |
| 10 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 11 |
83-6780 |
PIN-CYLINDER Price: $130.51 |
| 13 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 13 |
532172106 |
PANEL ASM, DASH RH Price: $14.99 |
| 14 |
75-5220-03 |
DISCONTINUED Price: Call Us |
| 15 |
75-5200-03 |
BRACKET-SPRING, RH Price: $95.29 |
| 15 |
874180512 |
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99 |
| 16 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 16 |
75-5210-03 |
BRACKET-SPRING, CENTER Price: $94.91 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 17 |
588251301 |
KIT.HOOD.PNT.STEEL.LASER.SV668 This part replaces 532442923. Price: $49.99 |
| 18 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 18 |
532184921 |
BUMPER.HOOD.LARGE.1.75" Price: $4.99 |
| 19 |
328-7 |
SCREW-HH Price: $4.00 |
| 20 |
32151-48 |
E-RING Price: $1.41 |
| 21 |
282-4 |
SHACKLE Price: $32.98 |
| 22 |
5-0743-03 |
SPRING-MOWER Price: $188.53 |
| 23 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 25 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 93-9310. Price: $582.35 |
| 28 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 28 |
532442203 |
GRILLE.HUSQ.LASER.LT.668 Price: $99.99 |
| 29 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 30 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 30 |
532441265 |
FENDER.PNT.CRD.MS-668 Price: $149.99 |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $5.99 |
| 31 |
75-5900 |
HOSE Price: $78.45 |
| 32 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 33 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532442578. Price: $37.99 |
| 33 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 34 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532442579. Price: $22.99 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 37 |
110-9709 |
HYD CYLINDER ASM This part replaces 99-6986. Price: $743.86 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
583117401 |
BRACKET ARM.PIVOT.REAR This part replaces 532181748. Price: $9.99 |
| 39 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 39 |
532407807 |
BRACKET PIVOT Price: $27.99 |
| 41 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 58 |
532184270 |
Price: Call Us |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 89 |
532441574 |
CONSOLE.CRD.AUTO.GRY Price: $8.99 |
| 131 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 133 |
596728201 |
Bolts This part replaces 872110608. Price: $3.99 |
| 141 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 162 |
583100801 |
BRKT.EXTEN.CHASSIS.LH.CRD This part replaces 532180382. Price: $48.99 |
| 163 |
583100901 |
BRKT.EXTEN.CHASSIS.RH.CRD This part replaces 532180383. Price: $43.99 |
| 164 |
532165605 |
SUPPORT Price: $59.99 |
| 165 |
532181356 |
COVER.BATTERY.CRD.BLACK Price: $9.99 |
| 170 |
532199488 |
Price: Call Us |
| 171 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 172 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT Price: $4.99 |
| 175 |
583707801 |
DOOR.TRAP.FBI.CRD.2004 This part replaces 532188203. Price: $17.99 |
| 179 |
583100601 |
ROD.PIVOT.FBI.CRD This part replaces 532188202. Price: $17.99 |
| 184 |
532174662 |
BRACKET.ACTUATOR.BAGGER.SRD Price: $4.99 |
| 185 |
532441416 |
KNOB.BRAKE.PARKING.ROD Price: $9.99 |
| 186 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 187 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 188 |
819061216 |
WASHER Price: $3.99 |
| 189 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 190 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 205 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532183548 |
INSERT.LENS.REFLECTIVE Price: $9.99 |
| 256 |
532181361 |
COVER FENDER CRD Price: $3.99 |
| 258 |
532183379 |
LENS.HUSQ.LASER LT.CLEAR.RH This part replaces 532185214. Price: $8.99 |
| 259 |
532183378 |
LENS.HUSQ.LASER LT.CLEAR.LH This part replaces 532185213. Price: $8.99 |
| 260 |
532442202 |
COVER.LENS.HUSQ.LASER.LT.498 Price: $11.99 |
| 261 |
532442201 |
INSERT.GRILLE.HUSQLASER.LT.498 Price: $24.99 |
| 265 |
583146701 |
SEAL.SIDE.RH.BAGGER.CRD This part replaces 532185704. Price: $17.99 |
| 266 |
583146601 |
SIDE.SEAL.LH.BAGGER.CRD This part replaces 532185703. Price: $17.99 |
| 272 |
532442200 |
VENT.HOOD.LASER.III.SD.RH Price: $12.99 |
| 273 |
532442199 |
Price: Call Us |
| 278 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 314 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 321 |
583458201 |
SHIELD.DECK.INNER.LH.CRD.FREN This part replaces 532430309. Price: $15.99 |
| 322 |
583463601 |
SHIELD.DECK.INNER.RH.CRD.FREN This part replaces 532431014. Price: $14.99 |
| 323 |
583480401 |
ASSY.CRD.LH.OUTSIDE.DECK.SHD This part replaces 532432400. Price: $14.99 |
| 324 |
583480501 |
ASSY.CRD.RH.OUTSIDE.DECK.SHD This part replaces 532432401. Price: $17.99 |
