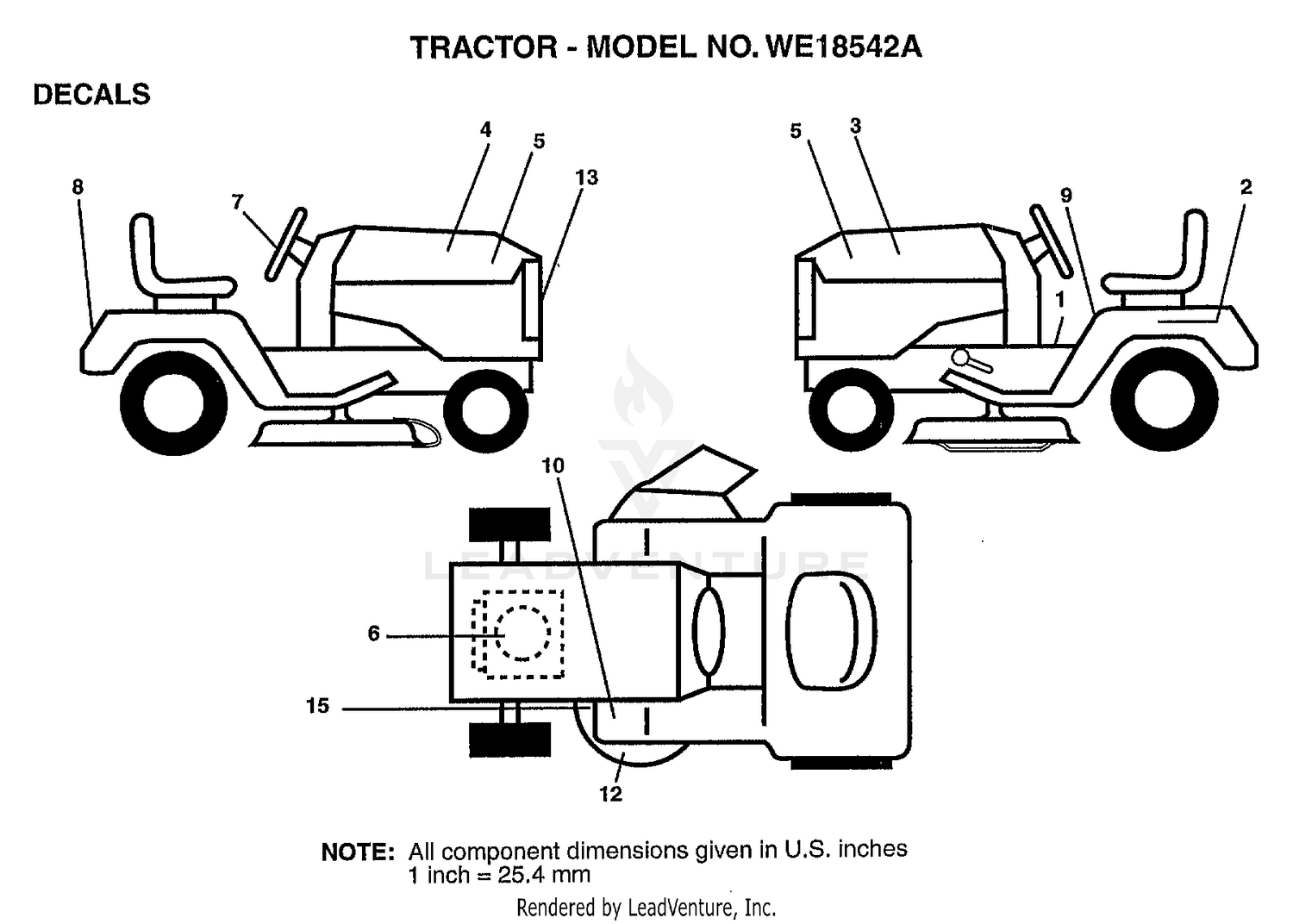

| Ref | Part Number | Description |
|---|
| CH208 |
TIRE |
CHAINS Price: Call Us CH208 |
| LBD48 |
SNOW |
BLADE Price: Call Us LBD48 |
| LC05 |
WHEEL |
WTS. Price: Call Us LC05 |
| LSB42 |
SNOW |
THROWER Price: Call Us LSB42 |
| MK42 |
MULCH |
KIT W/BLADES Price: Call Us MK42 |
| 1 |
21-0230 |
PULLEY-PTO Price: $409.71 |
| 2 |
145005 |
DECAL.BATRY.3-3908 Price: Call Us |
| 2 |
43-5630 |
YOKE-PTO Price: $80.75 |
| 3 |
156610 |
DECAL HOOD LH Price: Call Us |
| 3 |
3219-3 |
NUT-HEX Price: $0.34 |
| 4 |
27-7900 |
SCREW-ADJUSTING Price: $21.70 |
| 5 |
3256-41 |
WASHER Price: $1.18 |
| 6 |
273063 |
DECAL, HP, ENGINE Price: Call Us |
| 6 |
43-5540 |
SHAFT-PTO Price: $846.33 |
| 8 |
156602 |
DECAL-FENDER Price: Call Us |
| 9 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 10 |
21-0400-01 |
SPRING-COMPRESSION This part replaces 21-0400. Price: $20.88 |
| 10 |
4900J |
DECAL T Price: Call Us |
| 11 |
100-6599 |
PTO PIVOT ASM Price: $780.32 |
| 12 |
158894 |
DECAL DECK Price: Call Us |
| 12 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 13 |
3254-7 |
WASHER-LOCK, INT Price: $4.82 |
| 14 |
3219-7 |
NUT-HEX Price: $1.53 |
| 15 |
136832 |
DECAL Price: Call Us |
| 15 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 16 |
92-4058-01 |
ARM PTO This part replaces 92-4058. Price: $136.94 |
| 17 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 18 |
43-5550 |
SHAFT-ACTUATOR, PTO Price: $143.65 |
| 19 |
43-5570-01 |
ARM-ACTUATOR This part replaces 43-5570. Price: $164.96 |
| 20 |
251-252 |
BEARING Price: $98.35 |
| 21 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 22 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 138311 |
DECAL |
HANDLE LIFT Price: Call Us 138311 |
| 145246 |
PAD |
FOOTREST Price: Call Us 145246 |
| 145247 |
FASTNER.POPIN.(8) |
Price: Call Us 145247 |
| 158124 |
MANUAL.GENERIC.42 |
Price: Call Us 158124 |
| 158866 |
MANUAL.P.WE18542A |
Price: Call Us 158866 |
