| Ref | Part Number | Description |
|---|
| 1 |
108-1260 |
BATTERY-DRY This part replaces 80-6791. Price: $186.64 |
| 1 |
529268101 |
BOLT Price: $2.99 |
| 2 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 2 |
577942001 |
BOLT M5X20 T27 Price: $2.99 |
| 3 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 3 |
576420702 |
BRACKET UPPER M5X0.8 Price: $8.99 |
| 4 |
323-9 |
SCREW-HH Price: $1.29 |
| 4 |
576420802 |
BRACKET LOWER Price: $8.99 |
| 5 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 5 |
576420501 |
CUSHION UPPER Price: $14.99 |
| 6 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 6 |
577815402 |
BOLT This part replaces 577815401. Price: $3.99 |
| 7 |
597718401 |
HOUSING CLUTCH Price: $37.99 |
| 7 |
80-5650 |
MUFFLER Price: $783.15 |
| 8 |
322-4 |
SCREW-HH Price: $0.35 |
| 8 |
525953201 |
BEARING Price: $6.99 |
| 9 |
506609901 |
RING Price: $2.99 |
| 9 |
80-9150-03 |
SUPPORT-MUFFLER SHIELD This part replaces 80-9150. Price: $34.51 |
| 10 |
32144-114 |
SCREW-HWH Price: $1.89 |
| 10 |
506689001 |
BOLT TORX This part replaces 504114301. Price: $3.99 |
| 11 |
14-5229 |
DISCONTINUED Price: Call Us |
| 11 |
581308602 |

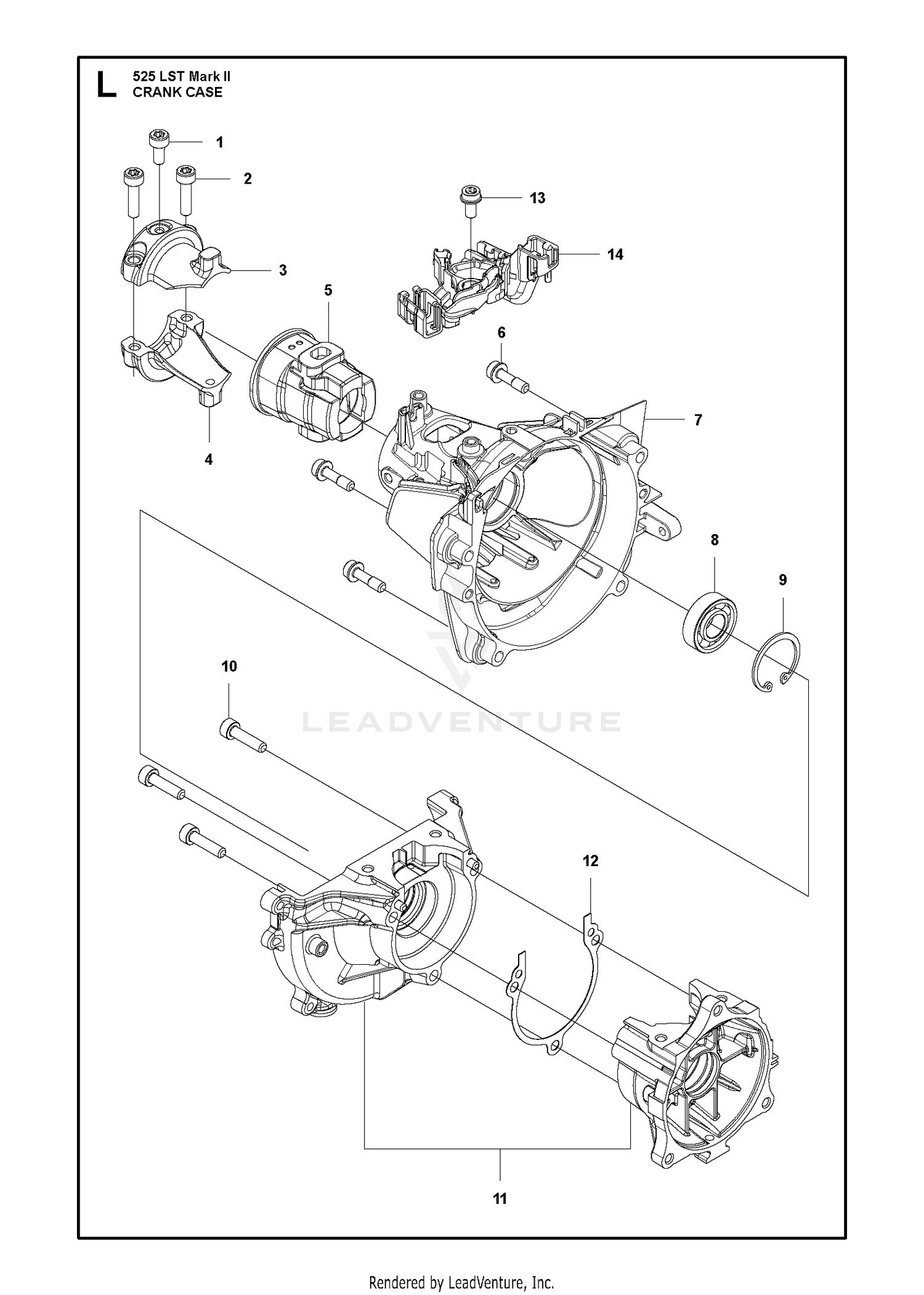

CRANKCASE COMP Price: $49.99 |
| 12 |
322-1 |
SCREW-HH Price: $0.22 |
| 12 |
576399502 |
GASKET CASE Price: $4.99 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
593805001 |
SCREW HEXALOBULAR SOCKET HEAD Price: $1.99 |
| 14 |
80-8290 |
PLATE-SURFACE, HOT Price: $5.06 |
| 14 |
83-6130 |
DECAL-HOT SURFACE,MUFF. Price: $7.47 |
| 15 |
3269-32 |
RIVET-POP Price: $0.25 |
| 16 |
80-7680-03 |
SUPPORT-MUFFLER This part replaces 80-7680. Price: $19.38 |
| 17 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
80-9350 |
PLATE-HOT SURFACE Price: $13.39 |
| 18 |
83-6140 |
DECAL-HOT SURFACE, ENG. Price: $10.88 |
| 19 |
14-5239 |
SHIELD-ENGINE, LH Price: $65.23 |
| 20 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 21 |
323-6 |
SCREW-HH Price: $0.66 |
| 22 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 23 |
240-14 |
BUMPER-RUBBER Price: $13.84 |
| 24 |
80-7700-03 |
BRACKET-SUPPORT This part replaces 80-7700. Price: $20.20 |
| 25 |
3217-5 |
NUT-HEX Price: $0.25 |
| 26 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 27 |
82-1520 |
GASKET-EXHAUST Price: $15.99 |
| 28 |
71-5960 |
FUEL FILTER Price: $48.99 |
| 29 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 30 |
110-4109 |
HOSE-FUEL This part replaces 56-2241. Price: $11.24 |
| 31 |
2811-10 |
ELBOW-STREET, 90 DEG Price: $11.68 |
| 32 |
289-48 |
NIPPLE Price: $15.55 |
| 33 |
288-4 |
CAP-PIPE Price: $20.94 |
| 34 |
2412-126 |
R-CLAMP Price: $2.51 |
| 35 |
32128-21 |
NUT-HF Price: $0.39 |
| 36 |
52-5980 |
SPACER-PIVOT ARM, REAR Price: $21.44 |
| 37 |
323-19 |
SCREW-HH Price: $1.70 |
| 38 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 39 |
86-8470 |
CABLE-BATTERY, NEGATIVE Price: $29.03 |
| 40 |
86-8990 |
DISCONTINUED Price: Call Us |
| 41 |
80-9940 |
DECAL - CHECK/SERVICE Price: $10.60 |
| 41 |
93-9358 |
DISCONTINUED Price: Call Us |
| 42 |
80-9950 |
DECAL - QUICK REF Price: $9.84 |
| 42 |
93-9359 |
DECAL - QUICK BLANK Price: $14.75 |
| 43 |
32149-10 |
NUT-KEPS Price: $2.44 |
| 44 |
86-8460 |
DISCONTINUED Price: Call Us |
| 45 |
93-7276 |
DECAL-DANGER Price: $15.13 |
