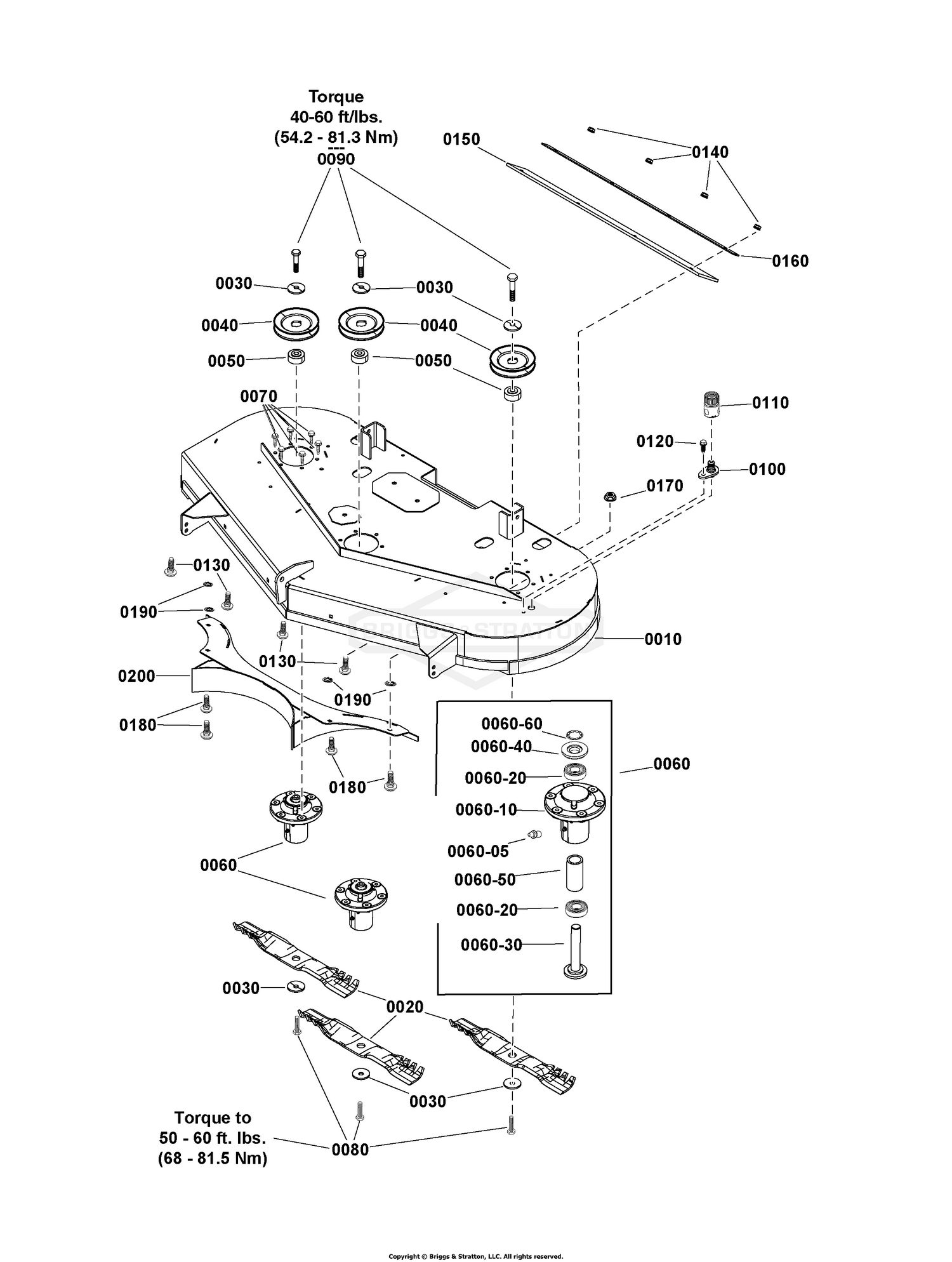

| Ref | Part Number | Description |
|---|
| 0010 |
1687944YP |
KIT, Mower Deck w/Decals, 48" FAB RD ZT - Red Price: $2,172.99 |
| 0020 |
1760647YP |
BLADE-MULCHING Price: $26.90 |
| 0030 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 0040 |
1732951SM |
PULLEY-04.60 OD 1.000 Price: $18.18 |
| 0050 |
706362 |
SPACER, HUB Price: $8.91 |
| 0060 |
84003173 |
ARBOR ASSEMBLY Price: $89.58 |
| 0070 |
704146 |
SCREW, HEX, 5/16-18X1 Price: $3.40 |
| 0080 |
1920676SM |
CAPSCREW, Hex Head, 7/16-14 X 1 Price: $4.70 |
| 0090 |
1921212SM |
CAPSCREW, Hex Head, 7/16-14 X 1 1/2 Price: $3.85 |
| 0100 |
1756247YP |
ADAPTER, Washout Port Price: $5.78 |
| 0110 |
1756246YP |
CONNECTOR, Washout Port Price: $14.39 |
| 0120 |
703228 |
SCREW, 5/16-18 X .75 Price: $3.94 |
| 0130 |
703446 |
BOLT, 5/16-18X1.25 G5 Price: $3.61 |
| 0140 |
5025127SM |
NUT, 5/16-18 HEX SERR Price: $2.97 |
| 0150 |
1761251YP |
FLAP, Rubber, Rear Discharge Price: $47.16 |
| 0160 |
1761516AYP |
STRIP, Discharge Flap, Black Price: $27.02 |
| 0170 |
703115 |
NUT Price: $3.06 |
| 0180 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 0190 |
703297 |
RETAINER, GR5, 5/16 Price: $3.29 |
