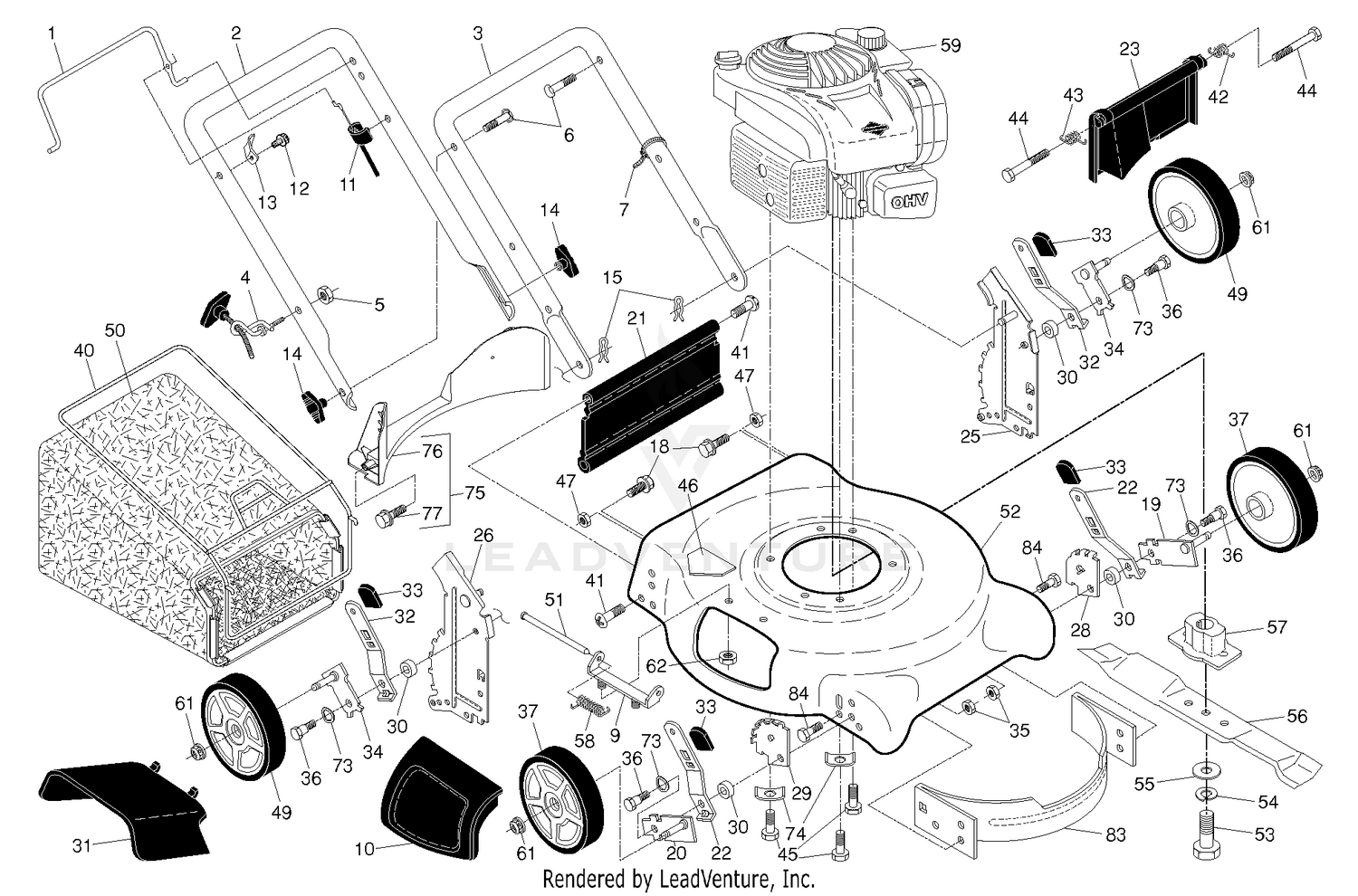

| Ref | Part Number | Description |
|---|
| 1 |
532196025 |
BAIL.CONT.D.STRAIGHT.PUSH.BLK Price: $7.99 |
| 1 |
66-6370 |
LIFT ARM ASM This part replaces 21-3100. Price: $430.43 |
| 2 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 2 |
532448263 |
HANDLE.UPPER.ECONOMY.BLACK Price: $22.99 |
| 3 |
32136-2 |
NUT-SHH Price: $3.55 |
| 3 |
532434514 |
HANDLE.LOWER.D-STRAIT.BLACK Price: $22.99 |
| 4 |
21-3020-01 |
MOUNT-BALLJOINT, RH This part replaces 21-3020. Price: $178.87 |
| 4 |
532194788 |
GUIDE.ROPE.STD.BLK.ZIN Price: $3.99 |
| 5 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 5 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 532132004. Price: $1.99 |
| 6 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 6 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $1.99 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 7 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $3.99 |
| 8 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 9 |
532154132 |
BRACKET.ASM.HOUSING.EZ.MUL Price: $4.99 |
| 9 |
66-7150 |
ARM-PUSH, RH This part replaces 21-2910. Price: $536.26 |
| 10 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 10 |
532165754 |
MULCH DOOR Price: $5.99 |
| 11 |
5-3505-01 |
PIN This part replaces 5-3505. Price: $74.63 |
| 11 |
532440934 |
CABLE.MZR.RATO.22"LOW. Price: $11.99 |
| 12 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 12 |
532178848 |
SCREW Price: $3.99 |
| 13 |
256-126 |
BUSHING Price: $9.36 |
| 13 |
532430034 |
BRACKET.UPSTOP.RT Price: $2.99 |
| 14 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 14 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532445019. Price: $1.99 |
| 15 |
23-1950-01 |
SUPPORT-REINFORCEMENT This part replaces 23-1950. Price: $69.64 |
| 15 |
532051793 |
HAIRPIN COTTER Price: $3.99 |
| 16 |
324-5 |
SCREW-HH Price: $0.54 |
| 17 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 18 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 18 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 19 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 20 |
21-3750 |
SUPPORT PLT Price: $14.42 |
| 21 |
21-2860-01 |
PUSH ARM BRACKET ASM This part replaces 21-2860. Price: $154.46 |
| 21 |
532418655 |
KIT.SKIRT.21 DOMED.W/LIP Price: $11.99 |
| 22 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 22 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532406428. Price: $3.99 |
| 23 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 23 |
532401814 |
DOOR.REAR.21.DOMED This part replaces 532410603. Price: $11.99 |
| 24 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 25 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 26 |
21-2900-01 |
SPRING-TORSION, LH This part replaces 21-2900. Price: $566.83 |
| 27 |
21-2890-01 |
SPRING-TORSION, RH This part replaces 21-2890. Price: $566.83 |
| 28 |
324-6 |
SCREW-HH Price: $0.81 |
| 29 |
21-3050-01 |
LH BALL JOUNT MOUNT ASM This part replaces 21-3050. Price: $153.41 |
| 30 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $2.99 |
| 30 |
86-8100-01 |
BALL JOINT ASM This part replaces 21-0160. Price: $137.53 |
| 31 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 31 |
532165760 |
CLIP ON DISCHARGE GUARD Price: $5.99 |
| 32 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 32 |
532401623 |
SPRING SELECTOR.REAR This part replaces 532410888. Price: $2.99 |
| 33 |
532087877 |
KNOB PM Price: $2.99 |
| 33 |
61-3610 |
WARNING DECAL This part replaces 21-3970. Price: $16.67 |
| 34 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 35 |
5-2942 |
SHACKLE Price: $16.99 |
| 35 |
532426589 |
NUT.FLANGE.HEX.5/16X18.BLACK Price: $2.99 |
| 36 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 36 |
532401638 |
SHOULDER BOLT 5/16-18 Price: $2.99 |
| 37 |
532403421 |
Price: Call Us |
| 40 |
532411949 |
FRAME.BAG.21.REAR.DOMED.PUSH Price: $27.99 |
| 41 |
532194186 |
SCREW.1/4-20X21/4.HEX. Price: $2.99 |
| 44 |
532184193 |
BOLT Price: $3.99 |
| 45 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $3.99 |
| 46 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $4.99 |
| 47 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 49 |
584377801 |
FENDER.LT.W/SFT.WO/CUP.MS428 This part replaces 532403458. Price: $99.99 |
| 50 |
532402263 |
Price: Call Us |
| 51 |
532147286 |
ROD.HINGE.COMBI-C Price: $4.99 |
| 53 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $3.99 |
| 54 |
539990118 |
SLW 3/8 STD This part replaces 532850263. Price: $1.99 |
| 55 |
532851074 |
WASHER,HARDEN Price: $2.99 |
| 56 |
532406712 |
BLADE.21.PUSH/RWGD/FWGD Price: $12.99 |
| 57 |
532418373 |
ADAPTER.BLADE.W/KEY.25MM.CE Price: $7.99 |
| 58 |
532152124 |
TORSION SPRING Price: $3.99 |
| 61 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $2.99 |
| 62 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 73 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $2.99 |
| 74 |
532125078 |
WASHER.ENGINE.BZP Price: $3.99 |
| 76 |
532410589 |
BAFFLE.REAR.PLASTIC.21.RD.ECON Price: $8.99 |
| 77 |
817411312 |
SCREW.HX.13X.750 Price: $3.99 |
| 83 |
532428501 |
BAFFLE.FRONT.21.DOME.US Price: $9.99 |
| 84 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
