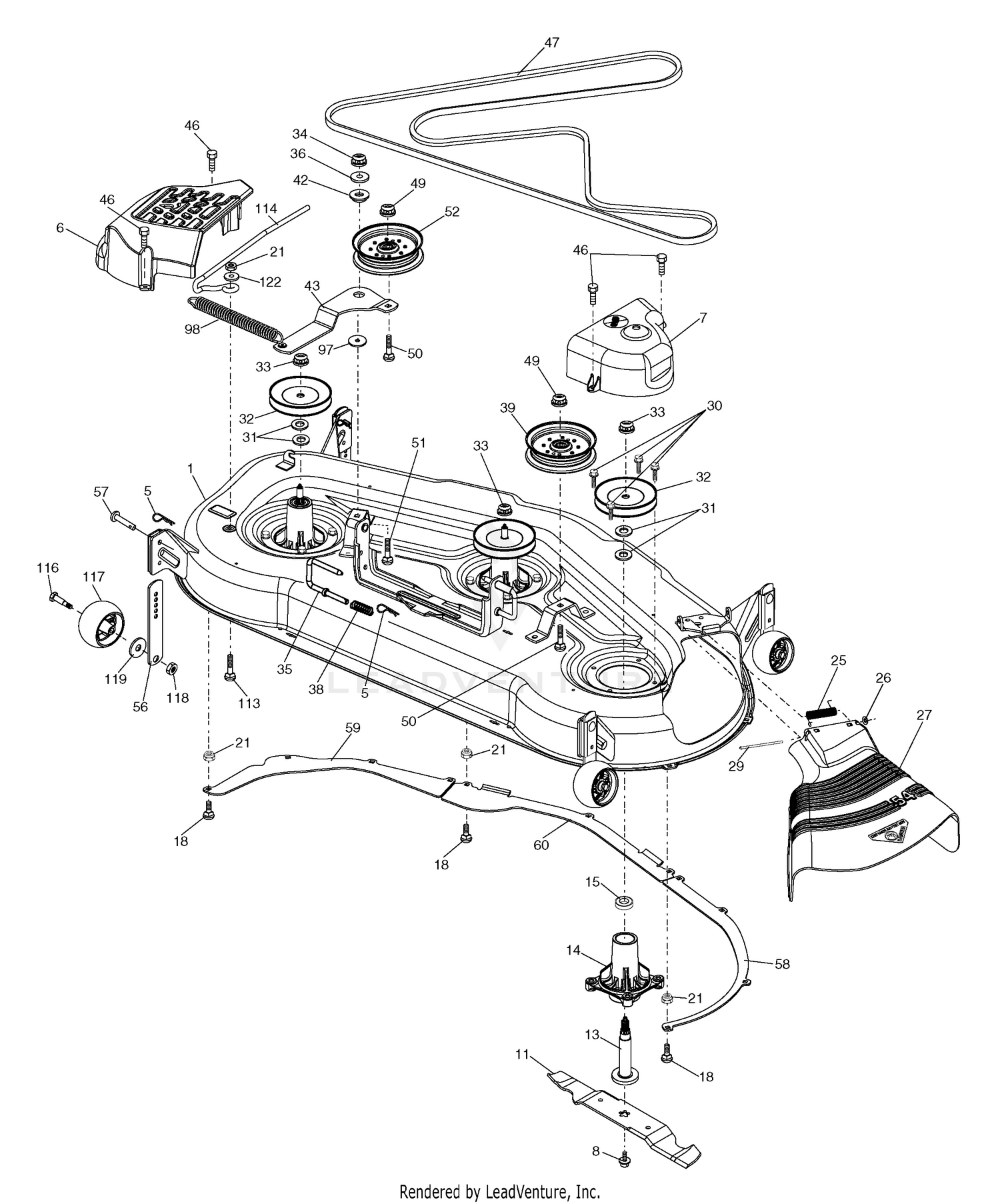

| Ref | Part Number | Description |
|---|
| 1 |
283-61 |
PIN-YOKE Price: $1.56 |
| 1 |
532196498 |
DECK.SVC.54".4GWB.GREY This part replaces 532188920. Price: $499.99 |
| 2 |
282-2 |
YOKE Price: $30.04 |
| 3 |
3220-2 |
NUT-JAM Price: $0.50 |
| 4 |
49-5430 |
ROD-CONTROL Price: $75.94 |
| 5 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
49-6110-01 |
GUARD-ROD, TRANSMISSION This part replaces 49-6110. Price: $65.82 |
| 6 |
532187297 |
COVER.MANDREL.LH.DECK.54" Price: $27.99 |
| 7 |
10-8140 |
SPRING-LATCH, BRAKE Price: $18.38 |
| 7 |
532188187 |
COVER.MANDREL.RH.DECK.54" Price: $27.99 |
| 8 |
10-7880 |
DISCONTINUED Price: Call Us |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 532174365. Price: $6.99 |
| 9 |
27-2830 |
PARKING BRAKE DECAL Price: $8.92 |
| 10 |
3229-11 |
SCREW-CARR This part replaces 3229-22. Price: $0.99 |
| 11 |
32141-111 |
NUT-ADJUSTING Price: $6.09 |
| 12 |
83-0640-01 |
PLATE-FOOTREST This part replaces 83-0640. Price: $105.48 |
| 13 |
49-6120 |
PAD-FOOTREST Price: $33.37 |
| 13 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
3274-31 |
SCREW-HSBH Price: $0.89 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
321-4 |
SCREW-HH Price: $0.99 |
| 17 |
83-0200-01 |
PLATE-COVER, LH This part replaces 83-0200. Price: $46.92 |
| 18 |
32128-14 |
NUT-HF Price: $0.41 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 20 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 21 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
10-7890 |
DISCONTINUED Price: Call Us |
| 23 |
10-7850 |
LATCH-BRAKE, PARKING Price: $111.12 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 25 |
83-0080 |
SPRING-PIVOT, LIFT Price: $20.57 |
| 26 |
106-6396 |
LIFT-PIVOT V This part replaces 83-0060. Price: $63.16 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $64.99 |
| 28 |
88-9640-01 |
BRACKET-LIFT PIVOT, LH This part replaces 88-9640. Price: $42.90 |
| 29 |
27-2270 |
ROD-ADJUSTMENT, BRAKE Price: $32.18 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
10-8100-01 |
STRAP-SHAFT, BRAKE This part replaces 10-8100. Price: $34.17 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
32121-35 |
PIN-ROLL Price: $0.79 |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
27-2320 |
BEARING Price: $15.22 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 35 |
532188635 |
PIN.SUSPENSION.REAR.54" Price: $21.99 |
| 36 |
106-6395 |
CUTTING CONTROL SHAFT ASM This part replaces 88-9660. Price: $151.92 |
| 36 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
99-6857 |
PAD-PEDAL, UPDATE KIT This part replaces 10-8240. Price: $25.77 |
| 38 |
106-6394 |
MOW PEDAL ASM This part replaces 83-0140. Price: $72.96 |
| 38 |
532188657 |
SPRING COMPRESSION PULL Price: $4.99 |
| 39 |
532187284 |
PULLEY.IDLER.STATIONARY Price: $49.99 |
| 39 |
99-5650 |
MOW PAD & DECAL This part replaces 10-8250. Price: $15.33 |
| 40 |
88-9630-01 |
BRACKET-LIFT PIVOT, RH This part replaces 88-9630. Price: $42.90 |
| 41 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 42 |
49-6200-01 |
LEVER-CUTTING This part replaces 49-6200. Price: $100.17 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 43 |
321-11 |
SCREW-HH Price: $0.36 |
| 43 |
532196216 |
ARM.IDLER.54" This part replaces 532187278. Price: $129.99 |
| 44 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 45 |
56-7970 |
CLAMP-TUBE Price: $10.02 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 46 |
88-9620 |
DECAL Price: $26.60 |
| 47 |
584451901 |
V-BELT.54".HIGH-PERFORMANCE This part replaces 532191273. Price: $79.99 |
| 47 |
83-2590 |
BOLT-SHOULDER, PIVOT Price: $50.18 |
| 48 |
83-0160 |
SHAFT-BRAKE Price: $111.83 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 49 |
93-7629 |
PAD-FOOT, BRAKE This part replaces 49-6170. Price: $25.13 |
| 50 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 50 |
69-9760 |
COVERPLATE Price: $5.38 |
| 51 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 51 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 52 |
321-3 |
SCREW-HH Price: $0.28 |
| 52 |
532188460 |
IDLER PULLEY Price: $43.99 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 58 |
531168601 |
SERVICE KIT BAFFLE.RIGHT.54" This part replaces 532187342. Price: $12.99 |
| 59 |
531168701 |
SERVICE KIT BAFFLE.LEFT.54" BA This part replaces 532187344. Price: $19.99 |
| 60 |
531168801 |
SERVICE KIT BAFFLE BAFFLE CENT This part replaces 532187607. Price: $19.99 |
| 97 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 98 |
532187282 |
SPRING.CLUTCH.DRIVE.54 Price: $11.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $17.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
