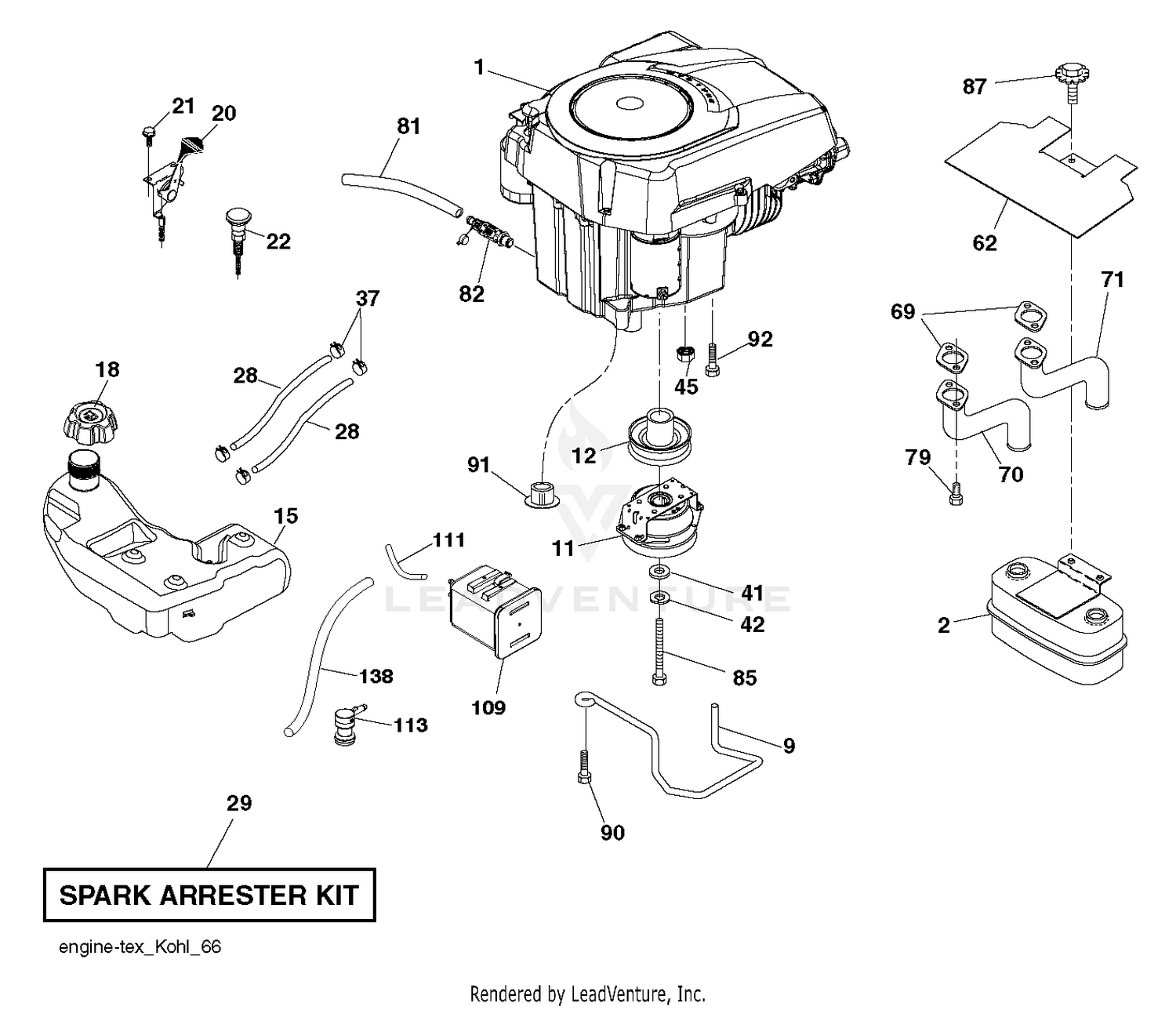

| Ref | Part Number | Description |
|---|
| 1 |
67-3420 |
NO. 3 PIPE ASSEMBLY Price: $83.77 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 2 |
67-3430 |
NUT Price: $4.57 |
| 3 |
70-8700 |
FUEL RETURN PIPE Price: $92.21 |
| 4 |
67-3440 |
GASKET Price: $7.12 |
| 5 |
110-3996 |
GAUGE-OIL LEVEL This part replaces 70-8880. Price: $108.61 |
| 6 |
93-3489 |
NOZZLE & HOLDER ASSY This part replaces 67-3380. Price: $570.51 |
| 7 |
67-3390 |
GASKET Price: $4.67 |
| 8 |
110-3994 |
GUIDE This part replaces 70-8870. Price: $15.67 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
67-2300 |
GASKET Price: $3.40 |
| 10 |
67-2290 |
COVER Price: $18.48 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 11 |
67-2340 |
BOLT W/WASHER Price: $2.19 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
56-0020 |
EXPANSION PLUG Price: $14.38 |
| 13 |
67-2280 |
GASKET Price: $8.62 |
| 14 |
67-2230 |
OIL SEAL Price: $83.03 |
| 15 |
529999102 |
TANK ASSY W/CAP 3 GAL CARB This part replaces 532414151. Price: $329.99 |
| 15 |
67-2270 |
CASE Price: $79.65 |
| 16 |
67-2330 |
BOLT Price: $2.25 |
| 17 |
43-2570 |
GASKET-PUMP Price: $15.12 |
| 18 |
43-2550 |
FILTER-PUMP Price: $23.30 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 19 |
43-2560 |
GASKET-PUMP Price: $23.14 |
| 20 |
43-2580 |
MAGNET-PUMP Price: $12.24 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 21 |
53-8150 |
PUMP-FUEL Price: $680.19 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
67-2440 |
DISCONTINUED Price: Call Us |
| 23 |
67-2430 |
BRACKET Price: $156.42 |
| 24 |
67-2390 |
PLUG Price: $5.06 |
| 25 |
67-2350 |
PLUG Price: $2.53 |
| 26 |
67-2360 |
DISCONTINUED Price: Call Us |
| 27 |
67-2380 |
BUSHING Price: $3.80 |
| 28 |
56-1230 |
OIL FILTER SHAFT Price: $14.76 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
42-9650 |
NUT-HEX, JAM Price: $0.70 |
| 31 |
67-4340 |
SCREEN ASSEMBLY Price: $60.41 |
| 32 |
67-2370 |
BUSHING Price: $4.65 |
| 33 |
42-7190 |
DISCONTINUED Price: Call Us |
| 34 |
67-2260 |
IDLER SHAFT Price: $45.97 |
| 35 |
56-0220 |
DISCONTINUED Price: Call Us |
| 36 |
67-2210 |
PLUG Price: $3.72 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
56-0100 |
PLUG-DRAIN Price: $6.55 |
| 39 |
67-3370 |
BOLT W/WASHER Price: $3.08 |
| 40 |
108-3841 |
FILTER-OIL This part replaces 67-4330. Price: $10.81 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 41 |
75-5020 |
DISCONTINUED Price: Call Us |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 42 |
67-3400 |
NO. 1 PIPE ASSEMBLY Price: $228.43 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 111 |
532420718 |
PURGE.LINE.36"REAR.CALIFORNIA Price: $6.99 |
| 113 |
597791601 |
VALVES This part replaces 532414127. Price: $9.99 |
| 138 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
