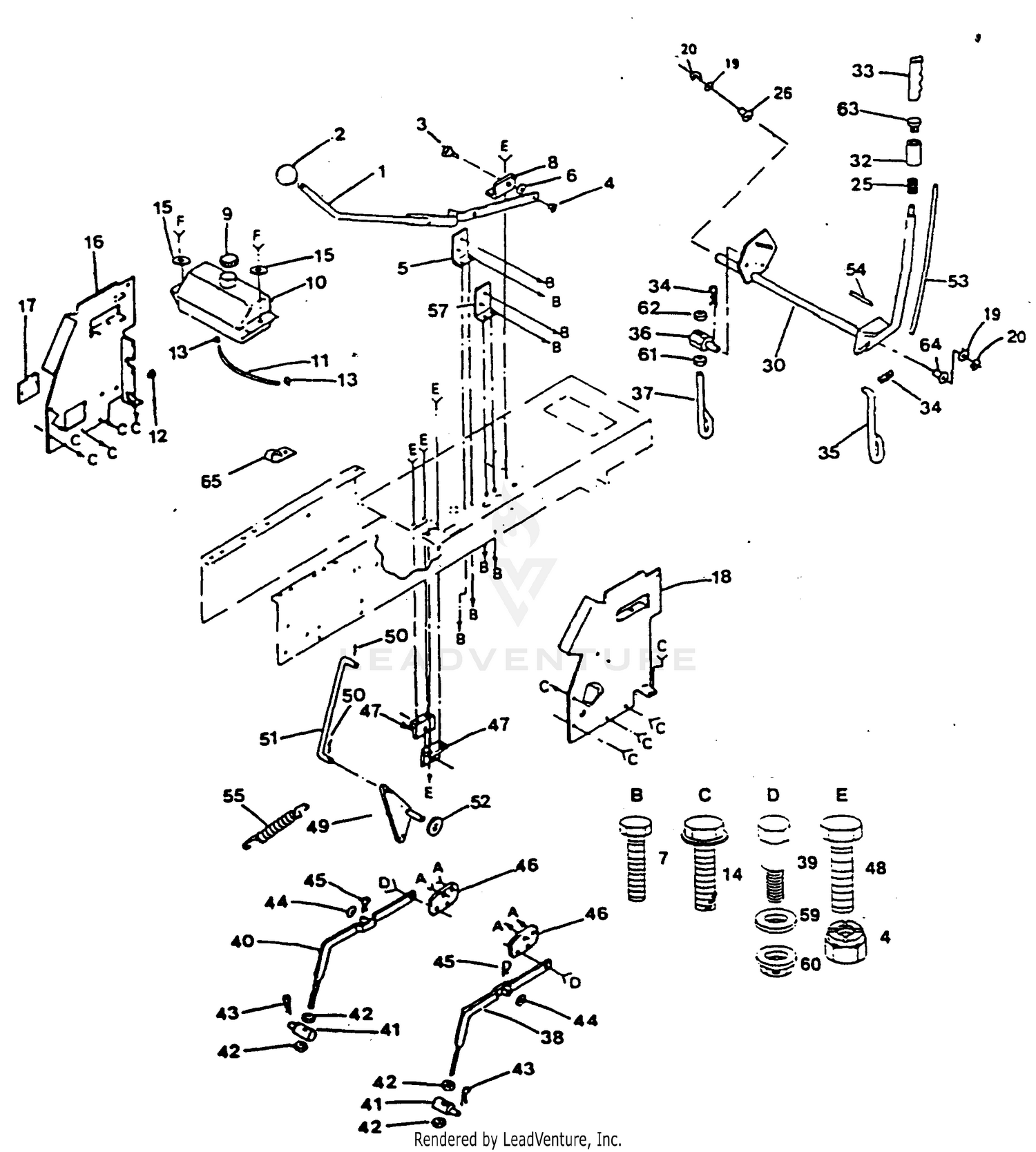

| Ref | Part Number | Description |
|---|
| 1 |
124429X |
Handle, Clutch, Mower (AYP part number) Price: Call Us |
| 1 |
25-5500 |
Hood Latch Price: Call Us |
| 2 |
106932X |
Knob Price: Call Us |
| 2 |
25-6470 |
Roll Bar Price: Call Us |
| 3 |
106451X |
Bolt, Shoulder Price: Call Us |
| 3 |
25-4710 |
DISCONTINUED Price: Call Us |
| 4 |
328-8 |
SCREW-HH Price: $5.54 |
| 4 |
73680600 |
Nut, Crownlock 3/8-16 Price: Call Us |
| 5 |
106452X |
Bracket, Switch, Interlock Price: Call Us |
| 5 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 6 |
19171516 |
Washer 17/32 x 15/16 x 16 Ga. Price: Call Us |
| 6 |
3256-8 |
WASHER-FLAT Price: $1.09 |
| 7 |
17021008 |
Screw, Hex, Tapping, #10-24 x 1/2 Price: Call Us |
| 7 |
25-4500 |
Rubber Mount Price: Call Us |
| 8 |
106447X |
Support, Lever, Clutch Price: Call Us |
| 8 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 9 |
123549X |
Cap, Fuel (AYP part number) Price: Call Us |
| 9 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 10 |
109202X |
Tank, Fuel (AYP part number) Price: Call Us |
| 10 |
324-4 |
SCREW-HH Price: $0.95 |
| 11 |
21-4190 |
DISCONTINUED Price: Call Us |
| 11 |
8548R |
Line, Fuel Price: Call Us |
| 12 |
3217-12 |
NUT-HEX Price: $3.12 |
| 12 |
9151R |
Grommet Price: Call Us |
| 13 |
123487X |
Clamp, Hose Price: Call Us |
| 13 |
328-12 |
SCREW-HH Price: $9.77 |
| 14 |
17490612 |
Screw, Hex, Washer Head, Thread Rolling 3/8-16 x 3/4 Price: Call Us |
| 14 |
32104-60 |
SCREW-HWH Price: $0.68 |
| 15 |
19131612 |
Washer 13/32 x 1 x 12 Ga. Price: Call Us |
| 15 |
25-8270 |
Front Mount Price: Call Us |
| 16 |
122795X |
Panel, Dash, L.H. Price: Call Us |
| 16 |
323-7 |
SCREW-HH Price: $0.65 |
| 17 |
121794X |
Cover, Access Price: Call Us |
| 17 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 18 |
124031X |
Panel, Dash, R.H. (AYP part number) Price: Call Us |
| 18 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 19 |
19211416 |
Washer 21/32 x 7/8 x 16 Ga. (AYP part number) Price: Call Us |
| 20 |
12000002 |
E-Ring (AYP part number) Price: Call Us |
| 25 |
122512X |
Spring (AYP part number) Price: Call Us |
| 30 |
122507X |
Shaft, Lift (AYP part number) Price: Call Us |
| 32 |
122364X |
Plunger (AYP part number) Price: Call Us |
| 33 |
109413X |
Grip, Handle Price: Call Us |
| 34 |
4939M |
Retainer, Spring (AYP part number) Price: Call Us |
| 35 |
110029X |
Link, Lift Price: Call Us |
| 36 |
110447X |
Trunnion, Lift (AYP part number) Price: Call Us |
| 37 |
110448X |
Link, Lift, Adjustable Price: Call Us |
| 38 |
121598X |
Arm, Suspension, R.H. Price: Call Us |
| 39 |
105848X |
Bolt, Shoulder 3/8-16 Price: Call Us |
| 40 |
121599X |
Arm, Suspension, L.H. Price: Call Us |
| 41 |
106308X |
Trunnion, Lift, Lower (AYP part number) Price: Call Us |
| 42 |
73220800 |
Nut, Hex 1/2 - 13 (AYP part number) Price: Call Us |
| 43 |
9135R |
Retainer, Spring Price: Call Us |
| 44 |
19171516 |
Washer 17/32 x 15/16 x 16 Ga. Price: Call Us |
| 45 |
4921H |
Retainer, Spring Price: Call Us |
| 47 |
106444X |
Bracket, Bellcrank Price: Call Us |
| 48 |
74760612 |
Bolt, Hex 3/8-16 x 3/4 (AYP part number) Price: Call Us |
| 49 |
109728X |
Bellcrank Assembly Price: Call Us |
| 50 |
76020412 |
Pin, Cotter 1/8 x 3/4 Price: Call Us |
| 51 |
124444X |
Rod, Clutch, Primary (AYP part number) Price: Call Us |
| 52 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 53 |
122514X |
Rod, Lever, Lift (AYP part number) Price: Call Us |
| 54 |
105767X |
Pin, Groove Price: Call Us |
| 55 |
124446X |
Spring, Extension (AYP part number) Price: Call Us |
| 57 |
108236X |
Bracket, Switch Price: Call Us |
| 59 |
110739X |
Washer, Spring Price: Call Us |
| 60 |
73980600 |
Locknut, Flange 3/8-16 (AYP part number) Price: Call Us |
| 61 |
73360700 |
Nut, Hex Jam 7/16-20 Price: Call Us |
| 62 |
73710700 |
Nut, Crownlock 7/16-20 Price: Call Us |
| 63 |
124526X |
Button, Plunger (AYP part number) Price: Call Us |
| 64 |
120183X |
Bearing, Nylon Price: Call Us |
