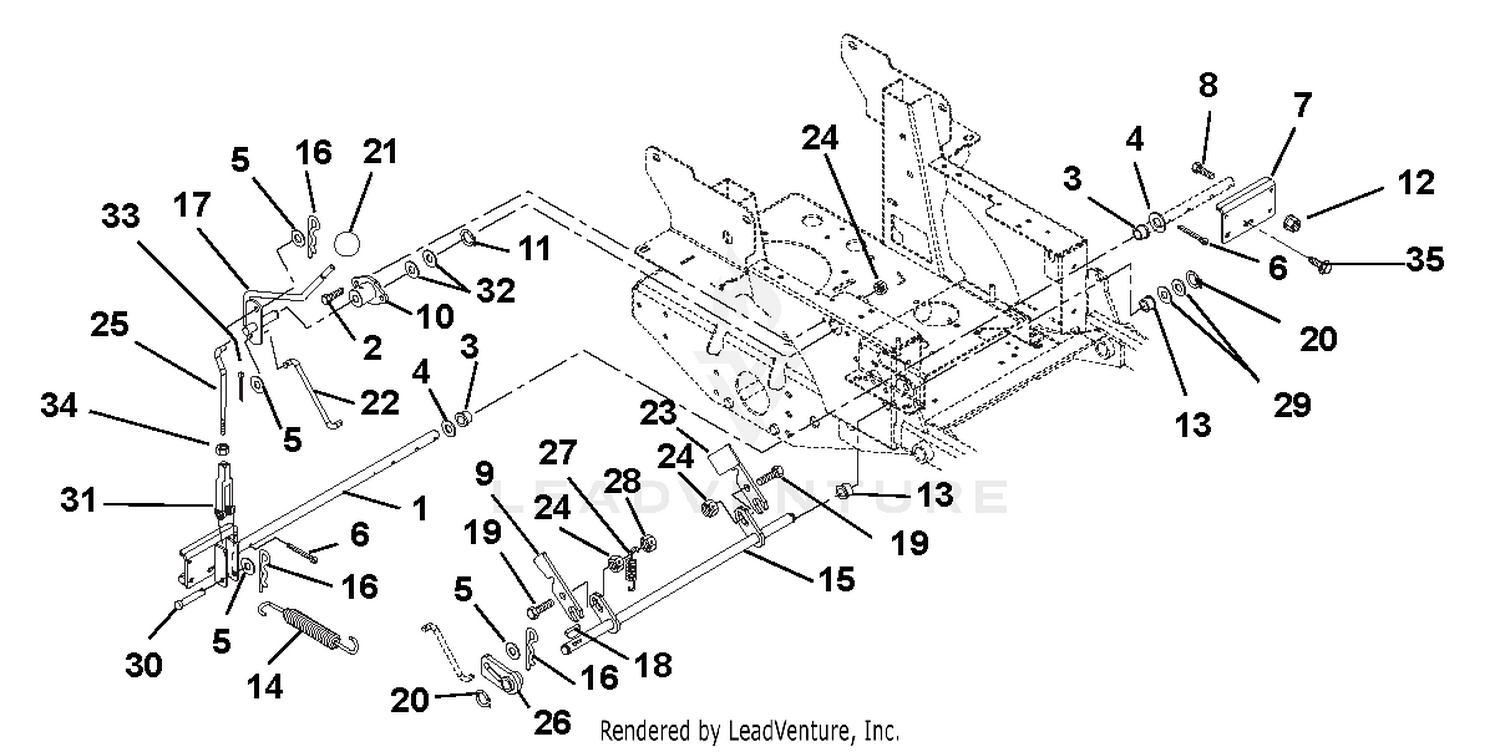

| Ref | Part Number | Description |
|---|
| 1 |
09298800 |
WMT, BRAKE SHAFT Price: $122.95 |
| 2 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 3 |
05518400 |
BSHG-FLG .762X1.0X.580X1.48 NY Price: $4.45 |
| 4 |
06401140 |
WSHR-FL-STL 0.812X1.469X0.134 ZCC This part replaces 06439000. Price: $1.45 |
| 5 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 7 |
00356851 |
WMT, PADDLE BRAKE Price: $86.95 |
| 8 |
05901739 |
BLT, HEX .25-20X1.50 G5 ZCC This part replaces 05952500. Price: $1.45 |
| 9 |
09267700 |
SLIDE, INTERLOCKING BRAKE Price: $20.45 |
| 10 |
05534100 |
BUSHING, FLANGED (WITH HOLE) This part replaces 05534700. Price: $36.95 |
| 11 |
05709200 |
RG-RTNG-EXT .625X.050 Price: $2.45 |
| 12 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 13 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY Price: $2.45 |
| 14 |
08334900 |
SPRING - ENGINE - TRANS. Price: $25.45 |
| 15 |
09284000 |
WMT, MECHANICAL BRAKE Price: $81.95 |
| 16 |
06700223 |
PIN, HAIR #225 .072X1.09 This part replaces 06714800. Price: $0.45 |
| 17 |
00277400 |
WMT, BRAKE ACTUATING Price: $76.95 |
| 18 |
06608400 |
KEY-WDRF .13X.63 HRD#5 Price: $2.45 |
| 19 |
06200407 |
BLT, RHSN .31-18X1.25 G5 ZCC This part replaces 06219200. Price: $3.95 |
| 20 |
05717100 |
RG-RTNG-EXT .500X.050 (SNAP) Price: $2.45 |
| 21 |
07505200 |
KNOB-STEERING LOCK Price: $19.95 |
| 22 |
09268400 |
LINKAGE, BRAKE ACTUATING Price: $26.95 |
| 23 |
09275900 |
INTERLOCK, SAFETY SWITCH Price: $15.45 |
| 24 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 25 |
09299100 |
LINKAGE, BRAKE COMPACT-Z Price: $30.95 |
| 26 |
09268100 |
WMT, PARKING BRAKE HUB Price: $132.95 |
| 27 |
08328700 |
SG-TENS .061 X .50 X 3.0 WLD 4 Price: $18.45 |
| 28 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45 |
| 29 |
06401112 |
WSHR, FLT .505X1.00X.062 ZCC This part replaces 06439200. Price: $0.95 |
| 30 |
06813300 |
PIN-CLEV .370X1.75 Price: $2.45 |
| 31 |
07000016 |
CLEVIS, .38-24 ADJ. SWIVEL Price: $19.45 |
| 32 |
06445100 |
WSHR-FL-STL .630X1.250X.062 YZ Price: $2.45 |
| 34 |
06500739 |
NUT, HEX-JAM .38-24 ZCC This part replaces 06534700. Price: $1.95 |
