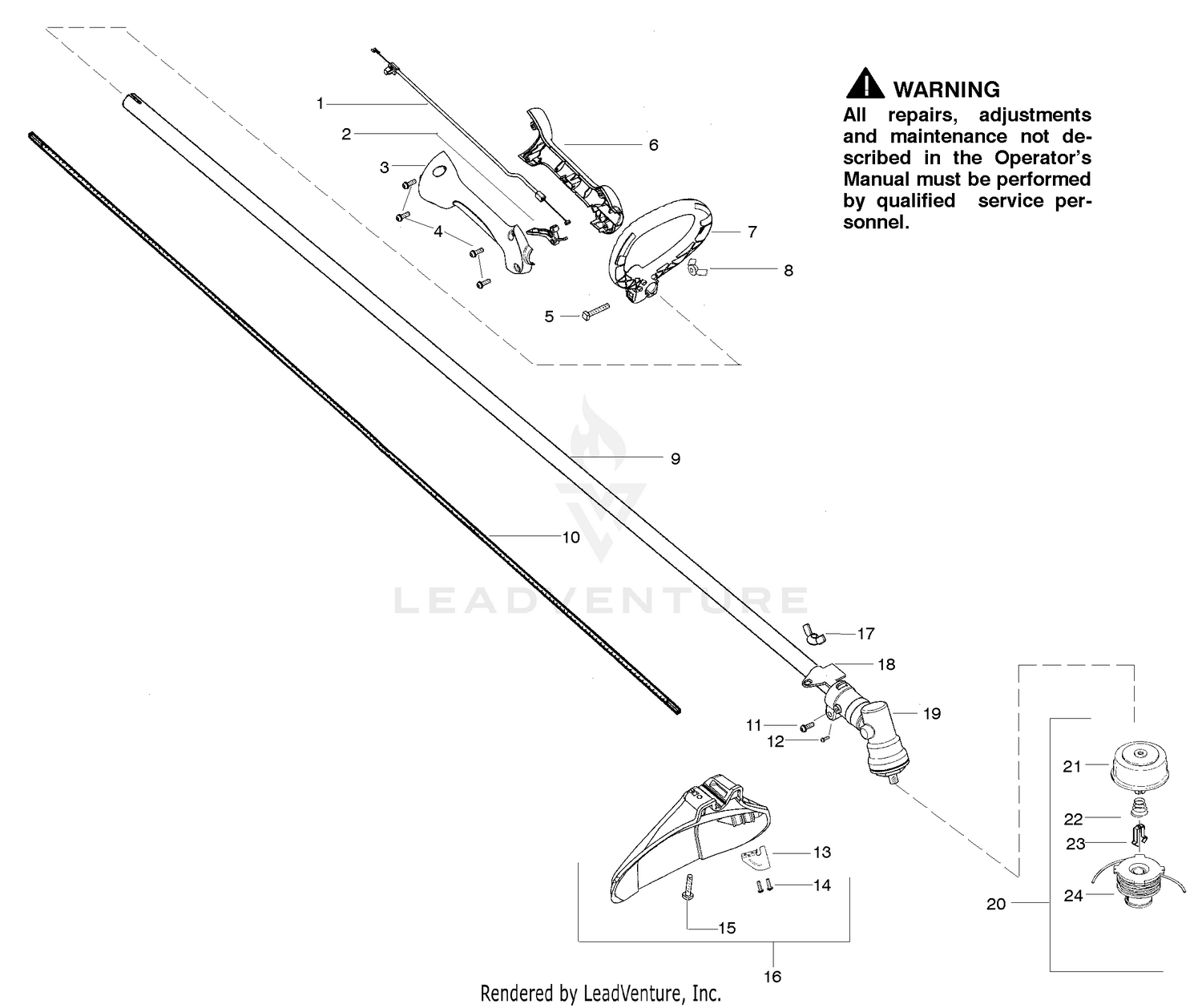

| Ref | Part Number | Description |
|---|
| 1 |
530057991 |
Assy-Throttle Cable Price: $8.99 |
| 2 |
530058000 |
Trigger Price: $2.99 |
| 3 |
108-4213 |
BRACKET-HOC, GROOMER (LH) Price: $103.51 |
| 3 |
530057582 |
Throttle Hsg. (Right) Price: $7.99 |
| 4 |
108-4214 |
BRACKET-HOC, GROOMER (RH) Price: $103.51 |
| 4 |
530015880 |
Screw-Throttle Hsg. Price: $1.99 |
| 5 |
106-3925 |
SHIM-ROLLER (0.25) Price: $5.22 |
| 5 |
530015821 |
Bolt-Handle/Shield Price: $1.99 |
| 6 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 6 |
530057581 |
Throttle Hsg. (Left) Price: $7.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
530057587 |
Handle-Assist Price: $6.99 |
| 8 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 8 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 9 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 9 |
530071661 |
Assy-Drive Shaft Hsg. Price: $24.99 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
530096075 |
Shaft- Flex Price: $6.99 |
| 11 |
322-16 |
SCREW-HH Price: $3.39 |
| 11 |
530016014 |
Screw Price: $1.99 |
| 12 |
530016224 |
Screw- Alignment Price: $1.99 |
| 13 |
530052285 |
Line Limiter Price: $1.99 |
| 14 |
530015957 |
Screw This part replaces 530015966. Price: $1.99 |
| 15 |
530015820 |
Bolt Price: $1.99 |
| 17 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 18 |
530096067 |
Bracket-Shield Price: $2.99 |
| 19 |
530096068 |
Assy-Gearbox Price: $34.99 |
| 21 |
530095772 |
Assy-Hub Price: $5.42 |
| 22 |
530053241 |
Spring-Compression Price: $1.99 |
| 23 |
530401957 |
Clip-Retainer-Head Price: $1.99 |
| 24 |
952711551 |
Accy- Spool w/Line Price: $8.95 |
