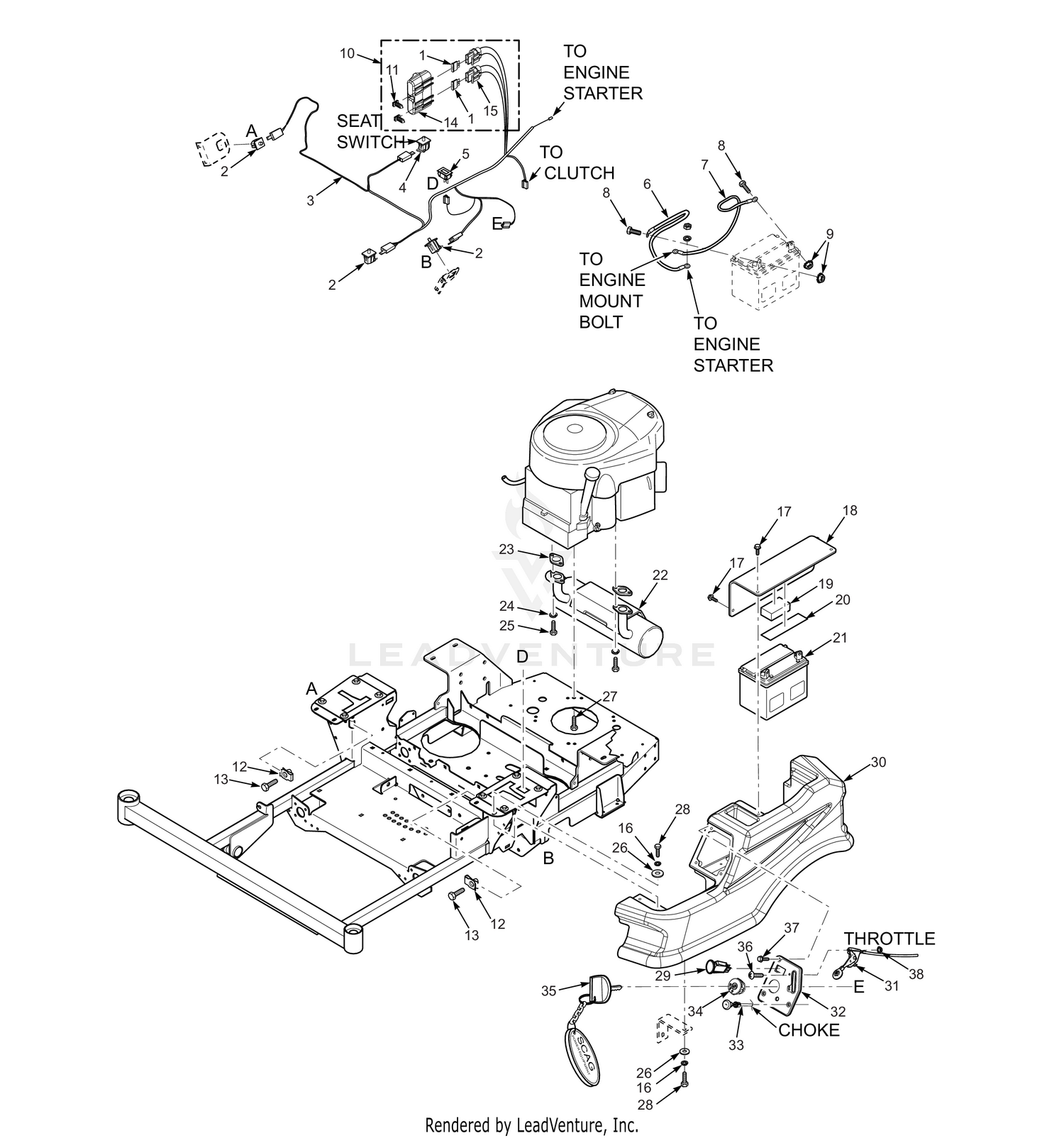

| Ref | Part Number | Description |
|---|
| 1 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 2 |
483473 |
Switch, Double Pole - Plunger Price: Call Us |
| 3 |
486123 |
Wire Harness, Main Price: Call Us |
| 4 |
483474 |
Switch, Double Pole - Twist Price: Call Us |
| 5 |
484565 |
Hour Meter, Inductive Price: Call Us |
| 6 |
48029-13 |
Battery Cable, 25" Red (Kawasaki) Price: Call Us |
| 7 |
48029-11 |
Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton Price: Call Us |
| 8 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 9 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 11 |
482588 |
Clip, Fuse Holder Price: Call Us |
| 12 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 13 |
04107-03 |
Bolt, Hex Head 3/8-16 x 1-1/4" with Thread Lock Patch Price: Call Us |
| 14 |
483571 |
Cover, Sealed Double Price: Call Us |
| 15 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 16 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 17 |
04017-04 |
CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX Price: Call Us |
| 19 |
485506 |
Pad, Battery - Rubber Price: Call Us |
| 20 |
483508 |
Rubber Pad Price: Call Us |
| 21 |
483665 |
Battery, 350 CCA (not available through Scag) Price: Call Us |
| 22 |
484209 |
Muffler, Kawasaki FS/FX Price: Call Us |
| 26 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 27 |
04011-07 |
Bolt, Hex Head Self-Tap 3/8-16 x 1-1/4" (Kohler x3 - 25EFI, Kohler x4 - 29EFI) Price: Call Us |
| 28 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 29 |
485833 |
Switch, PTO - 10 Amp Price: Call Us |
| 30 |
463304 |
Console, LH - SPZ Price: Call Us |
| 31 |
483434 |
Throttle Cable, Briggs & Stratton Price: Call Us |
| 32 |
462322 |
INSTR PANEL W/ DECAL, SFZ Price: Call Us |
| 33 |
483435 |
Choke Cable, Briggs & Stratton Price: Call Us |
| 34 |
483472 |
Ignition Switch Price: Call Us |
| 35 |
483609 |
Key w/Shroud Only Price: Call Us |
| 36 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 37 |
04013-01 |
Screw, Flanged, 5/16-18 x 1/2" Price: Call Us |
| 462069 |
Key, |
Assembly w/Fob Price: Call Us 462069 |
| 483278 |
Solenoid, |
Sealed (Briggs & Stratton) Price: Call Us 483278 |
| 483381 |
Muffler, |
Briggs & Stratton Price: Call Us 483381 |
| 483529 |
Wire |
Harness Adapter, Kawasaki (not shown) Price: Call Us 483529 |
| 483646 |
Choke |
Control, Kawasaki Price: Call Us 483646 |
| 484474 |
CHOKE |
CONTROL, 59.5" Price: Call Us 484474 |
| 485336 |
Muffler, |
Kohler KT Price: Call Us 485336 |
| 486134 |
Wire |
Harness Adapter, Kohler (not shown) Price: Call Us 486134 |
| 486141 |
Muffler, |
Kohler Price: Call Us 486141 |
| 487170 |
Muffler, |
Scag 27SR Price: Call Us 487170 |
