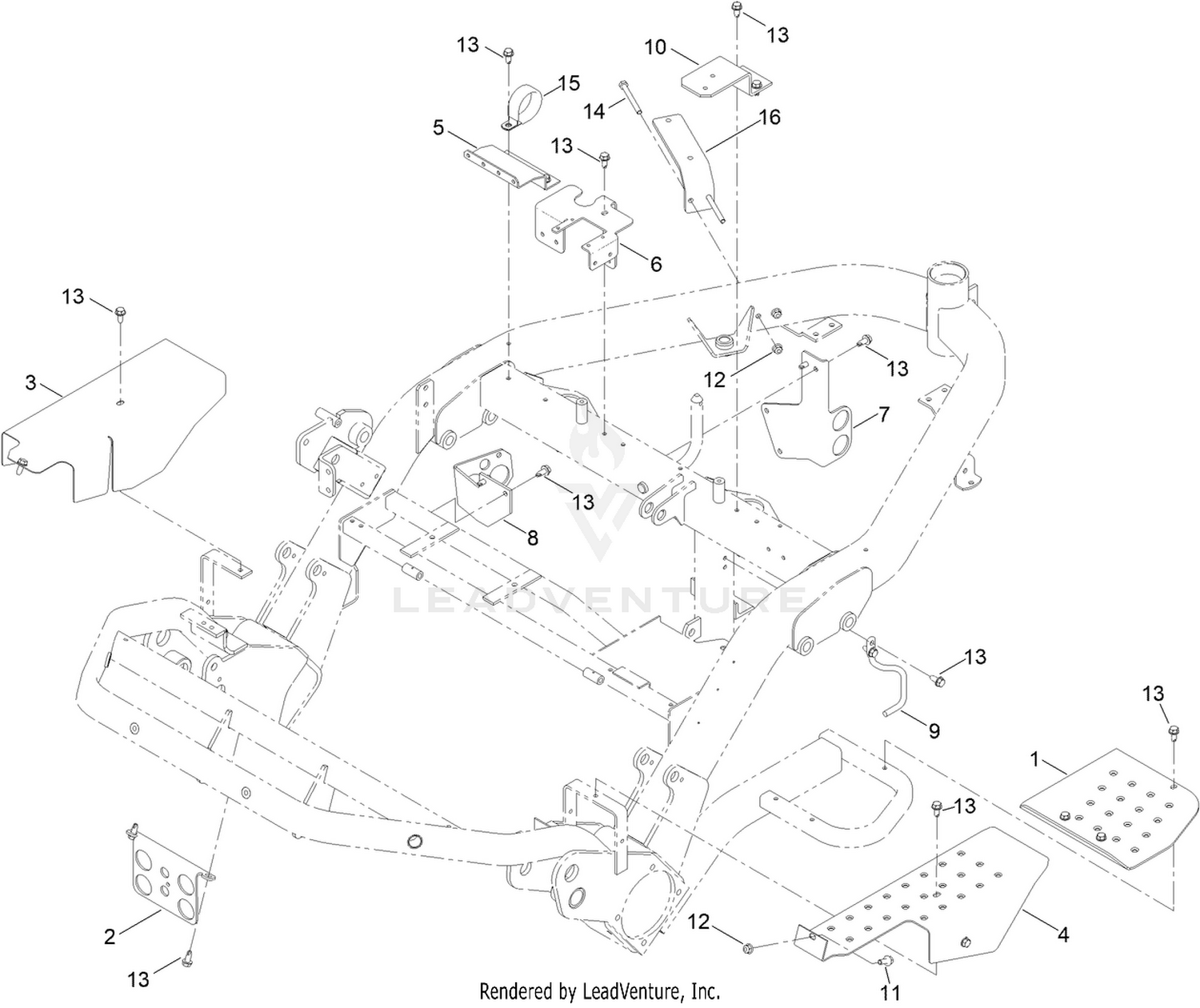

Frame Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 130-0104-01 | STEP Price: $67.24 |
| 2 | 121-2636-01 | BRACKET-BULKHEAD Price: $21.44 |
| 3 | 93-2072-01 | SHIELD-WHEEL, RH Price: $92.07 |
| 4 | 93-2073-01 | SHIELD-WHEEL, LH Price: $104.03 |
| 5 | 93-2169-01 | BRACKET-RELAY Price: $26.63 |
| 6 | 145-4560-01 | BRACKET-FUSE BLOCK Price: $32.03 |
| 7 | 99-4222-03 | BRACKET-HOSE Price: $40.99 |
| 8 | 94-1316 | BRACKET-BULKHEAD Price: $45.28 |
| 9 | 130-6527 | RETAINER-HOSE Price: $40.95 |
| 10 | 131-8780-03 | BRACKET-OIL FILTER Price: $22.80 |
| 11 | 3234-47 | SCREW-HHF Price: $1.79 |
| 12 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 13 | 32104-32 | SCREW-HWH Price: $1.99 |
| 14 | 322-20 | SCREW-HH Price: $1.79 |
| 15 | 115-9469 | CLAMP-R Price: $3.81 |
