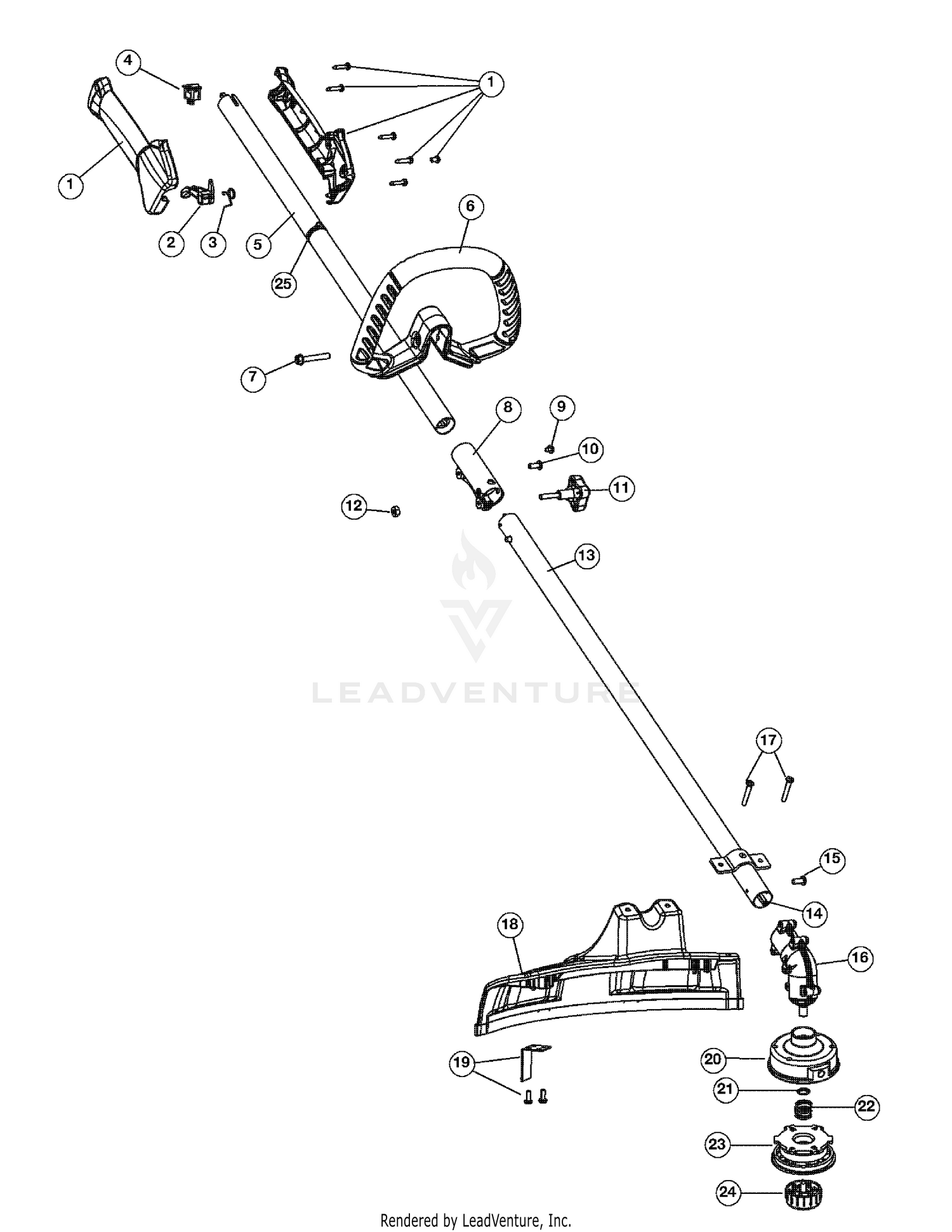

General Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 753-04119 | Throttle Trigger Price: $6.56 |
| 3 | 791-182690 | Throttle Trigger Spring Price: $7.01 |
| 4 | 791-182405 | Switch Price: $9.29 |
| 5 | 753-04344 | Upper Srive Shaft Housing Assembly Price: $79.57 |
| 7 | 753-06040 | Bolt Price: $6.01 |
| 9 | 791-182057 | Screw Price: $3.93 |
| 10 | 791-181617 | Bolt Price: $4.59 |
| 12 | 712-04018A | Knob Retaining Nut Price: $3.78 |
| 13 | 753-08164 | Lower Drive Shaft Housing Assembly Price: $18.34 |
| 14 | 753-05267 | LOWER DRIVE SHAFT Price: $37.46 |
| 15 | 7039 | Anit-Rotation Screw Price: $4.11 |
| 17 | 753-06125 | Shield Mounting Screws Price: $5.94 |
| 19 | 753-06126 | Blade Assembly Price: $2.81 |
| 21 | 791-610660 | Retainer Price: $4.29 |
| 22 | 791-610317B | Spring Price: $9.47 |
| 23 | 753-1155 | Inner Reel Price: $21.18 |
| 24 | 791-153066B | Bump Knob Assembly Price: $11.65 |
| 25 | 4301A | SHOULDER STRAP CLAMP Price: $3.06 |
| 25 | 791-610327 | Shoulder Strap Clip Price: $28.62 |
