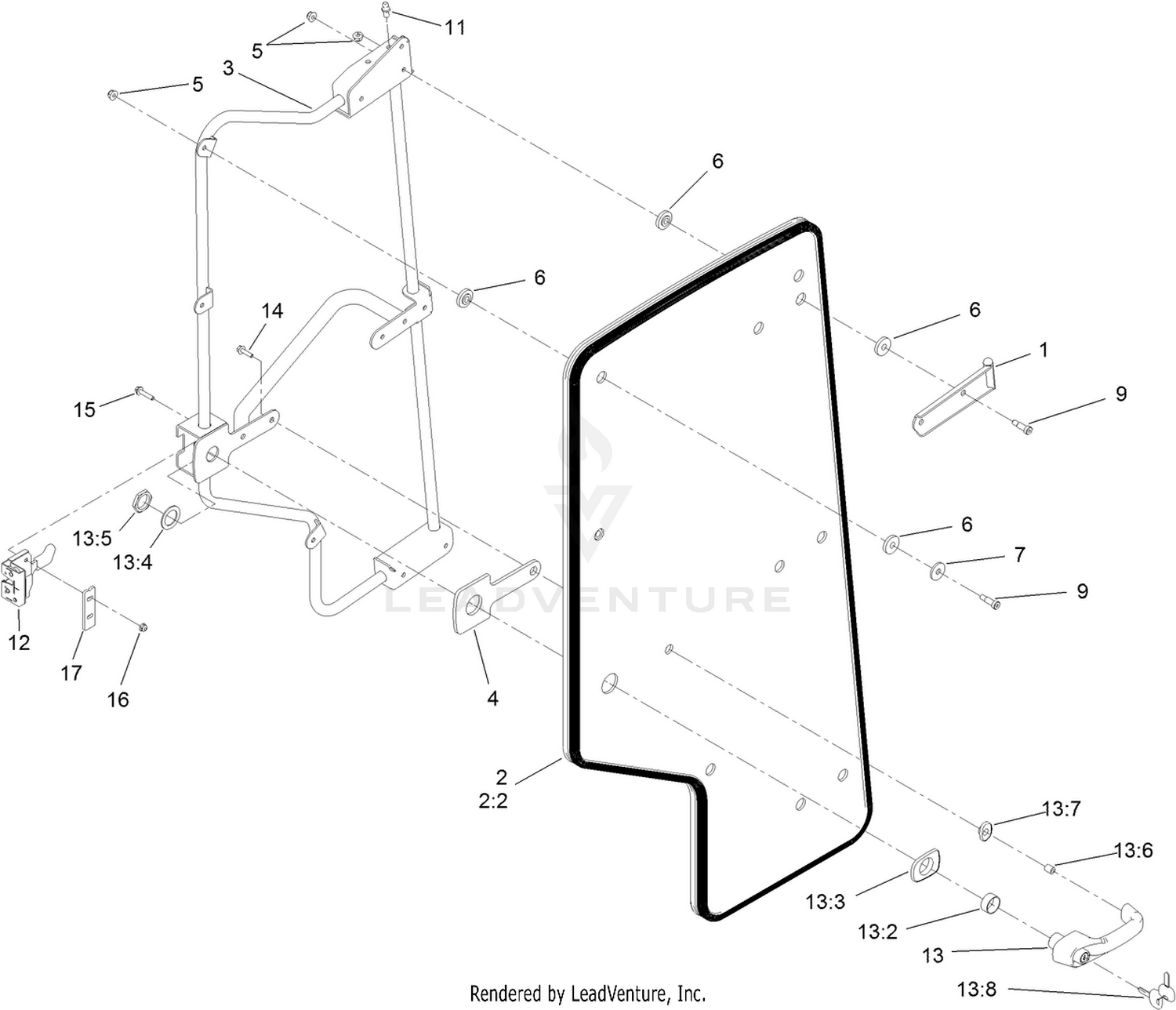

LH Door Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-9619-03 | HINGE-DOOR, LH Price: $34.45 |
| 2 | 130-5687 | LH DOOR ASM Price: $1,161.79 |
| 3 | 125-9730-03 | FRAME-DOOR, LH Price: $396.18 |
| 4 | 121-8331 | GASKET-HANDLE Price: $15.02 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 6 | 125-9982 | BUSHING-FLANGE Price: $1.76 |
| 7 | 125-9676 | WASHER-BACKUP Price: $1.70 |
| 9 | 125-9520 | SCREW-SHOULDER, HSH Price: $1.83 |
| 11 | 98-3104 | STUD-BALL Price: $4.61 |
| 12 | 121-8391 | LATCH-LH Price: $57.87 |
| 13 | 121-8630 | HANDLE ASM Price: $121.56 |
| 14 | 33103-025 | SCREW-HHF Price: $0.54 |
| 15 | 3234-21 | SCREW-HHF Price: $2.19 |
| 16 | 104-7201 | NUT-HF Price: $0.69 |
