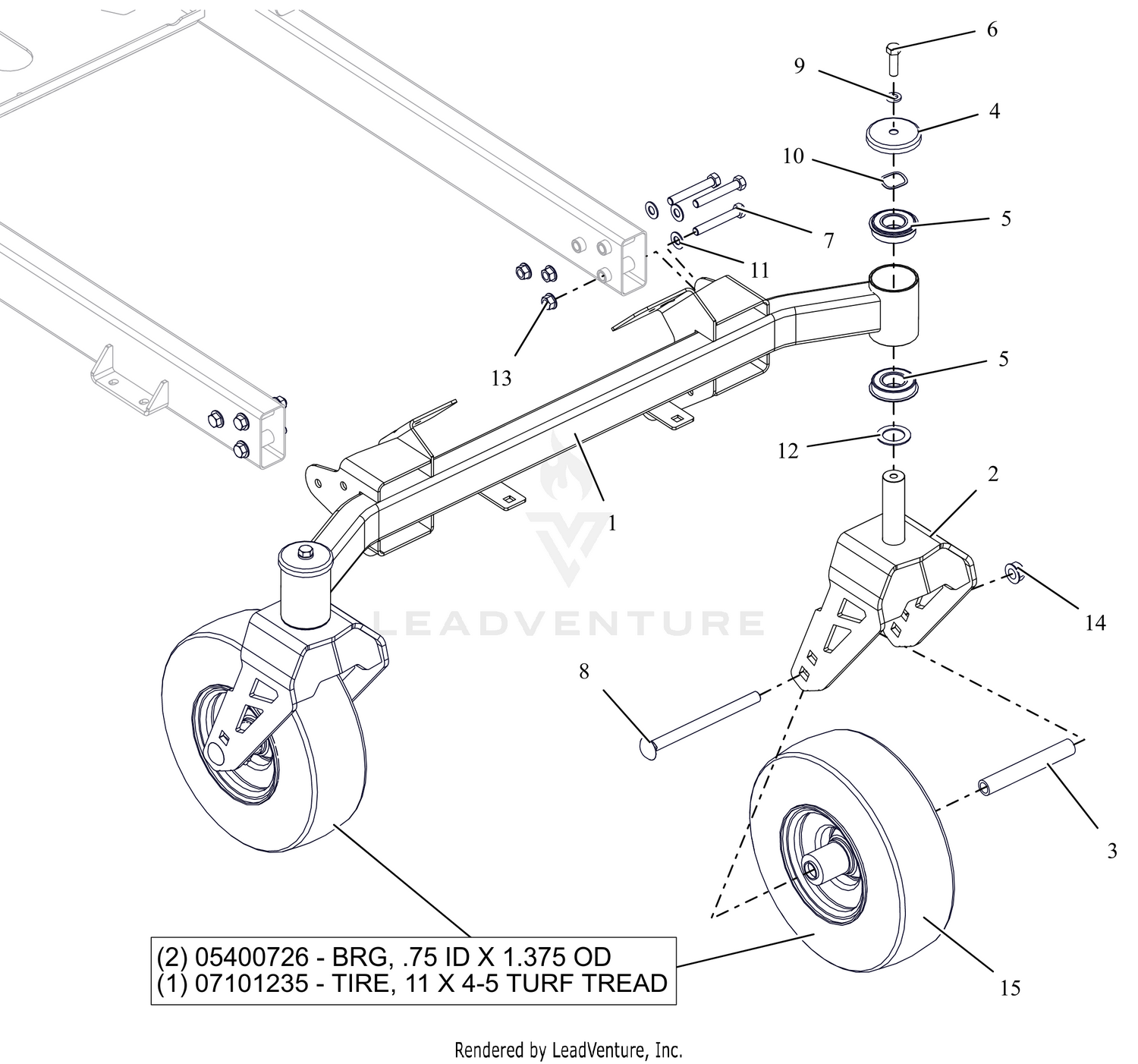

| Ref | Part Number | Description |
|---|
| 1 |
05198159 |
WMT-FRONT AXLE-X/XL Price: $132.95 |
| 2 |
05295759 |
WLDMT, CASTER FORK-XD (ORANGE) Price: $116.45 |
| 3 |
00278500 |
SPACER, ROLLED WHEEL Price: $13.95 |
| 4 |
05198400 |
SHIELD, AXLE BEARING Price: $6.45 |
| 5 |
05400728 |
BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING Price: $12.45 |
| 6 |
05901724 |
BLT, HEX .38-16X1.25 G5 ZCC Price: $1.45 |
| 7 |
05901811 |
BLT, HEX .38-16X2.50 G8 ZCC Price: $3.45 |
| 8 |
06200319 |
BLT, RHSN .50-13X6.50 G5 ZCC Price: $11.45 |
| 9 |
06300116 |
WSHR,LK-REG .375X.094 ZCC Price: $0.95 |
| 10 |
06401030 |
WSHR-WAVE 1.0X1.25X.028 .145FH Price: $5.45 |
| 11 |
06401129 |
WSHR,FLT-HRD.406X.812X.055 MZC Price: $0.95 |
| 12 |
06416600 |
WSHR-HRD-THRS 1.007X1.542X.062 Price: $2.95 |
| 13 |
06500905 |
NUT-LK-TOP-FLG .375-16 GG ZCC Price: $1.45 |
| 14 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC Price: $1.45 |
| 15 |
07101127 |
ASM, WHL/TIRE 11X4.00-5 Price: $82.45 |
