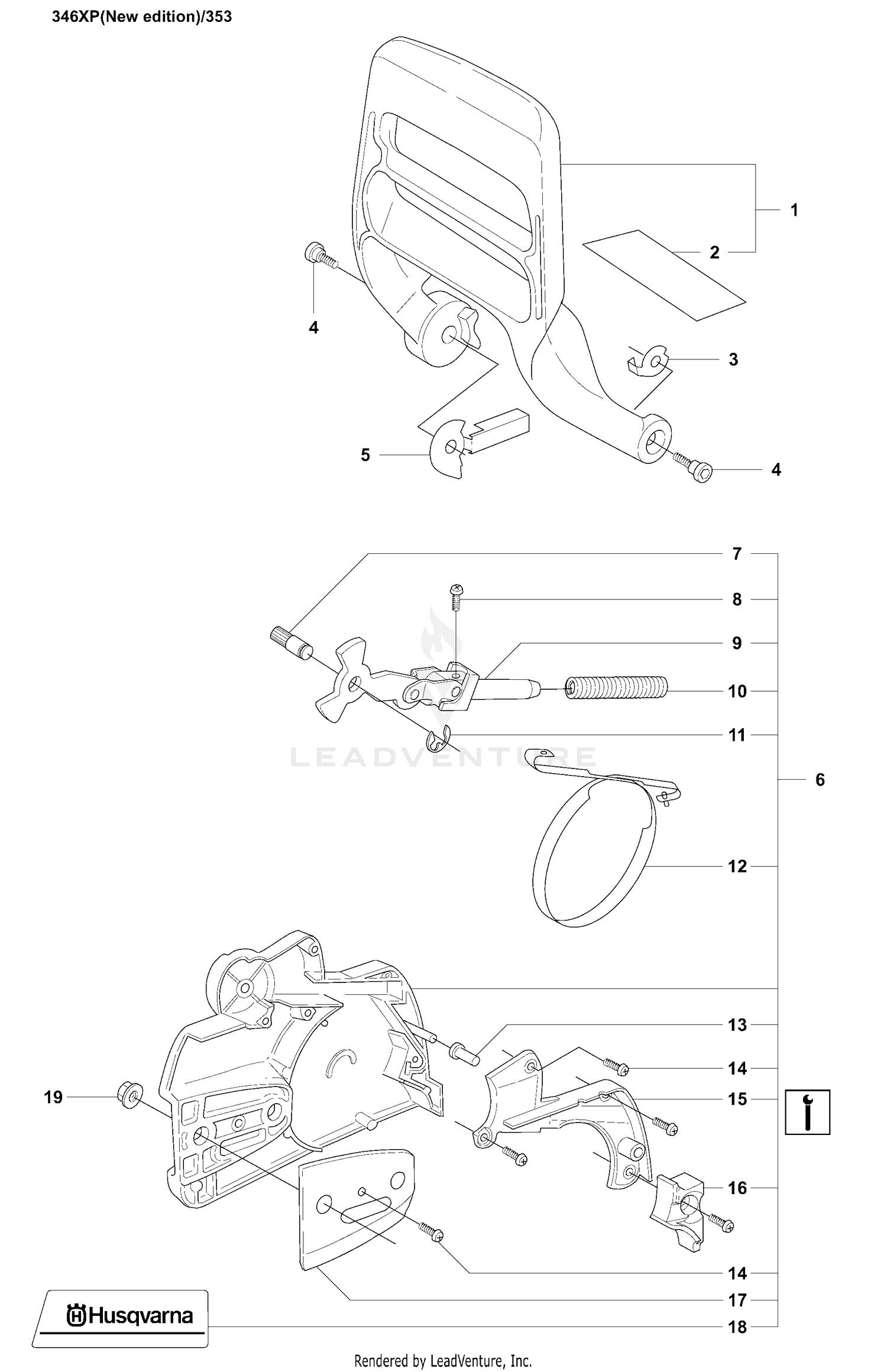

Chainbrake
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 537152801 | CHAINBRAKE HANDLE Price: $32.99 |
| 1 | 98-9589 | NUT Price: $1.46 |
| 2 | 537159302 | PROTECTOR This part replaces 537152701. Price: $22.99 |
| 2 | 98-9594 | WASHER-PLAIN Price: $2.49 |
| 3 | 503929501 | WASHER Price: $6.99 |
| 3 | 98-9662 | LEVER-CONTROL, SPEED Price: $72.44 |
| 4 | 503893001 | SCREW This part replaces 503893002. Price: $4.99 |
| 4 | 98-7602 | PIN-SPRING Price: $0.64 |
| 5 | 537029901 | PROTECTOR Price: $6.99 |
| 5 | 98-9572 | LEVER-CONTROL, SPEED Price: $47.15 |
| 6 | 537107801 | CHAIN BRAKE ORANGE Price: $64.99 |
| 6 | 537107804 | CHAIN BRAKE SILVER Price: $71.99 |
| 6 | 98-9371 | O-RING Price: $2.56 |
| 7 | 503892901 | PIN Price: $2.99 |
| 7 | 98-7572 | NUT Price: $0.32 |
| 8 | 503217010 | SCREW Price: $3.99 |
| 8 | 98-7699 | WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 9 | 503890802 | JOINT Price: $19.99 |
| 9 | 98-9661 | CONTROL PLATE ASM Price: $167.65 |
| 10 | 503465901 | SPRING Price: $6.99 |
| 10 | 98-9362 | STUD Price: $0.66 |
| 11 | 735310820 | E-RING 4 Price: $2.99 |
| 11 | 98-9658 | GOVERNOR LEVER ASM Price: $34.84 |
| 12 | 537043001 | BRAKE BAND Price: $14.99 |
| 12 | 98-9637 | GASKET Price: $3.98 |
| 13 | 503855201 | SLEEVE Price: $4.99 |
| 13 | 98-9664 | SHAFT-LEVER, STOP Price: $33.92 |
| 14 | 503217072 | SCREW Price: $2.99 |
| 14 | 98-9472 | SPRING-RETURN Price: $8.91 |
| 15 | 537108002 | COVER Price: $9.99 |
| 15 | 98-7692 | BOLT Price: $0.92 |
| 16 | 537089001 | PROTECTOR Price: $5.99 |
| 16 | 98-7601 | SEAL-OIL Price: $7.88 |
| 17 | 503856601 | PLATE Price: $5.99 |
| 17 | 98-9663 | LEVER-STOP, ENGINE Price: $13.34 |
| 18 | 537370401 | DECAL Price: $4.99 |
| 18 | 99-8348 | BOLT Price: $0.24 |
