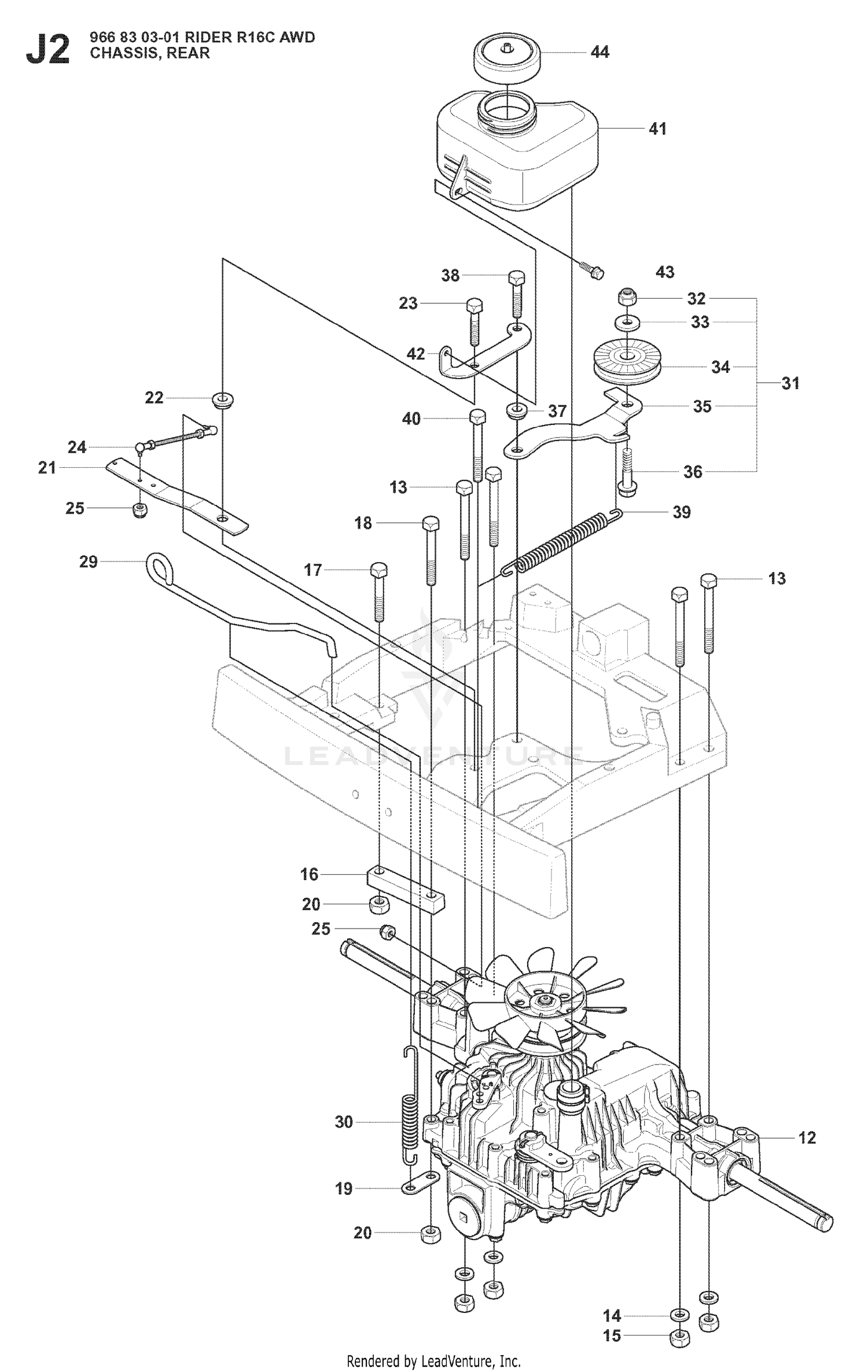

| Ref | Part Number | Description |
|---|
| 1 |
117-5894 |
FUEL CAP ASM Price: $68.39 |
| 2 |
109-2661 |
SCREW-PPH Price: $0.70 |
| 3 |
94-5780 |
SCREW-HWH Price: $7.49 |
| 4 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 5 |
107-4543 |
CLAMP Price: $13.47 |
| 6 |
125-2907 |
FUEL TANK ASM Price: $498.76 |
| 7 |
125-2903 |
COVER-PUMP/SENDER Price: $50.85 |
| 8 |
2412-80 |
CLAMP-HOSE Price: $4.39 |
| 9 |
322-6 |
SCREW-HH Price: $0.45 |
| 10 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 11 |
108-1605 |
BUMPER-RECESS Price: $10.02 |
| 12 |
590716801 |
TRANSMISSION K574A This part replaces 544116101. Price: $849.99 |
| 12 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 13 |
144-4020 |
KIT-FUEL PUMP, SERVICE This part replaces 110-8806. Price: $192.50 |
| 13 |
725246751 |
Hex Bolt Price: $4.99 |
| 14 |
110-9044 |
SEPARATOR-FILTER Price: $98.19 |
| 14 |
734116401 |
WASHER BRB 8.4X17 Price: $5.99 |
| 15 |
353-783 |
FITTING-STR Price: $29.05 |
| 15 |
731231801 |
NUT Price: $3.99 |
| 16 |
32104-96 |
SCREW-HH Price: $5.59 |
| 16 |
506987201 |
BRACKET Price: $19.99 |
| 17 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 17 |
725245951 |
SCREW Price: $4.99 |
| 18 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 18 |
725246251 |
SCREW Price: $4.99 |
| 19 |
109-0309 |
HOSE-FUEL Price: $18.99 |
| 19 |
506599301 |
CONNECTOR Price: $5.99 |
| 20 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 20 |
731231801 |
NUT Price: $3.99 |
| 21 |
140-6245 |
CAP-PUMP, FUEL This part replaces 115-2162. Price: $16.59 |
| 21 |
506987403 |
ARM Price: $12.99 |
| 22 |
140-6246 |
GASKET-PUMP, FUEL, This part replaces 115-2163. Price: $2.92 |
| 22 |
584288604 |
Washers This part replaces 506918702. Price: $3.99 |
| 23 |
121-5642 |
SENDER-FUEL Price: $246.13 |
| 23 |
725245151 |
SCREW 8X20 Price: $4.99 |
| 24 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 25 |
110-9007-03 |
SUPPORT-CABLE, THROTTLE Price: $14.56 |
| 25 |
732211401 |
LOCKNUT M5 Price: $2.99 |
| 26 |
110-8968-01 |
MOUNT-SEPARATOR, WATER Price: $46.70 |
| 27 |
110-8817 |
BRACKET-PUMP, FUEL Price: $21.97 |
| 28 |
110-3259 |
HOSE-FUEL Price: $33.03 |
| 29 |
125-8808 |
HOSE-FUEL Price: $39.29 |
| 29 |
506988201 |
Rod Price: $12.71 |
| 30 |
112-9919 |
STOP-CABLE, THROTTLE Price: $3.18 |
| 30 |
506834301 |
SPRING Price: $3.99 |
| 31 |
2412-149 |
CLAMP-R Price: $0.68 |
| 31 |
506988401 |
TENSIONER Price: $54.99 |
| 32 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 32 |
588740401 |
BELT TENSIONER ARM This part replaces 506988501. Price: $14.99 |
| 33 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 33 |
506946901 |
PULLEY Price: $34.99 |
| 34 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 34 |
725245551 |
SCREW Price: $3.99 |
| 35 |
734116441 |
SPACER Price: $3.99 |
| 35 |
81-1690 |
CLAMP-CABLE Price: $2.24 |
| 36 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 36 |
732211801 |
LOCKNUT M8 Price: $3.99 |
| 37 |
584288604 |
Washers This part replaces 506918702. Price: $3.99 |
| 37 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 38 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 38 |
725245151 |
SCREW 8X20 Price: $4.99 |
| 39 |
2412-41 |
CLAMP-R Price: $4.82 |
| 39 |
594924101 |
Springs This part replaces 506988601. Price: $3.99 |
| 40 |
110-9009-0P |
BRACKET-CABLE, THROTTLE This part replaces 110-9009-03. Price: $13.98 |
| 40 |
725246451 |
SCREW Price: $5.99 |
| 41 |
33114-016 |
SCREW-HH Price: $0.27 |
| 41 |
544100102 |
EXPANSION TANK RIDER EXTENDED This part replaces 544100101. Price: $54.99 |
| 42 |
544121701 |
BRACKET Price: $6.99 |
| 42 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 43 |
125-2945 |
STRAP-CABLE Price: $18.51 |
| 43 |
725236461 |
SCREW Price: $2.99 |
| 44 |
506673301 |
FUEL CAP Price: $27.99 |
